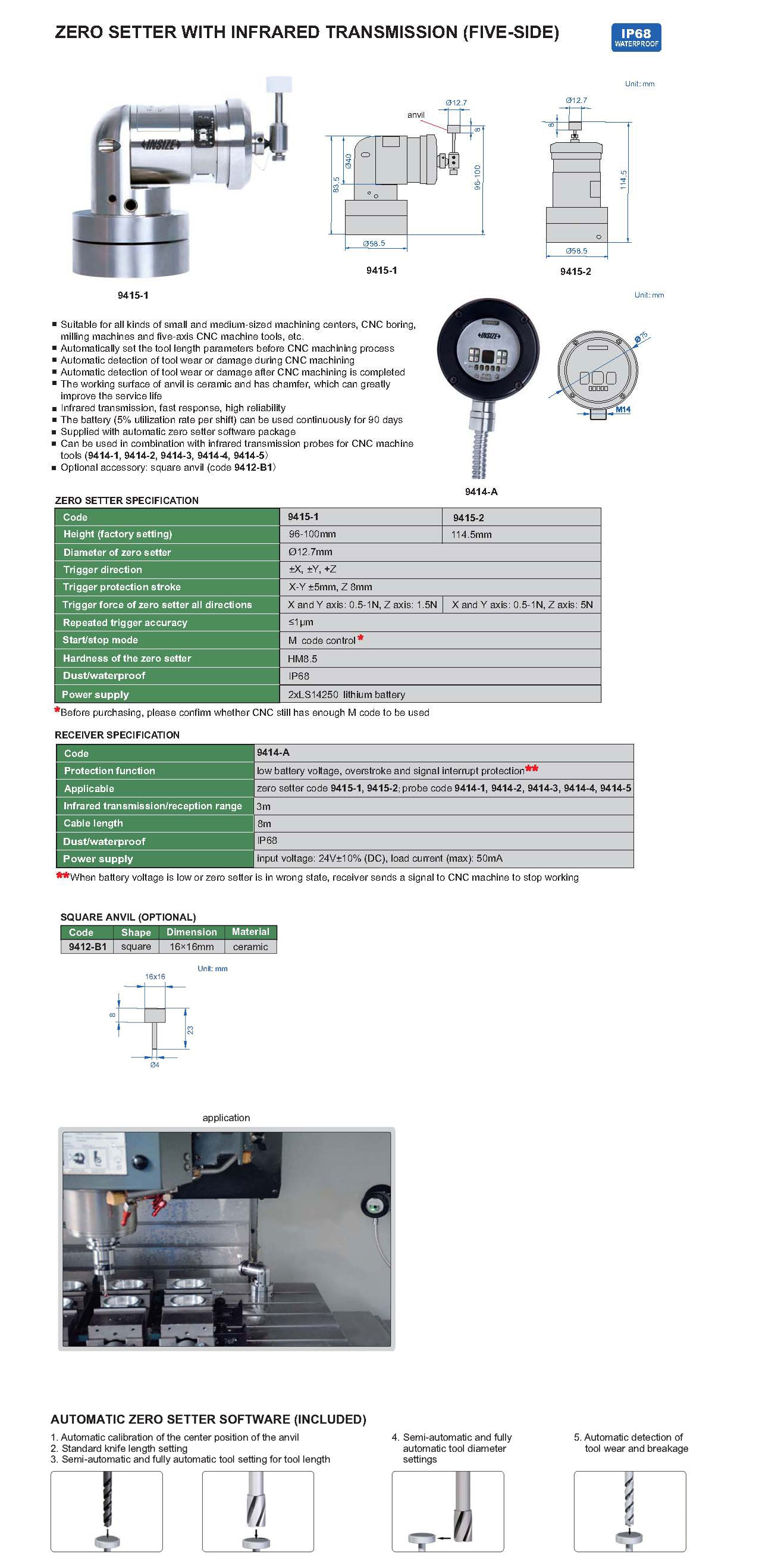

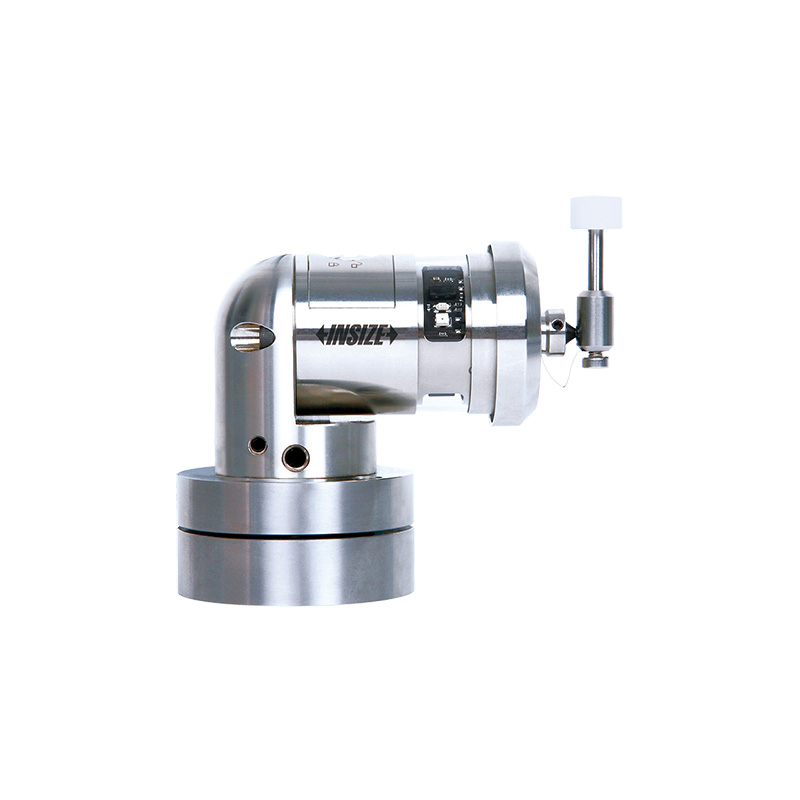

Zero Setters With Infrared Transmission (Five-Side)
Code: 9415
Suitable for all kinds of small and medium-sized machining centers, CNC boring, milling machines and five-axis CNC machine tools, etc.
Automatically set the tool length parameters before CNC machining process
Automatic detection of tool wear or damage during CNC machining
Automatic detection of tool wear or damage after CNC machining is completed
The working surface of anvil is ceramic and has chamfer, which can greatly improve the service life
Infrared transmission, fast response, high reliability
The battery (5% utilization rate per shift) can be used continuously for 90 days
Supplied with automatic zero setter software package
| Code | Transmission method | Trigger direction | Axial reset force | Repeated trigger accuracy | Hardness of the zero setter | Dust/waterproof |
|---|---|---|---|---|---|---|
| 9415-1 | with infrared transmission | ±X, ±Y, +Z | X and Y axis: 0.5-1N, Z axis: 1.5N | ≤1μm | HM8.5 | IP68 |
| 9415-2 | with infrared transmission | ±X, ±Y, +Z | X and Y axis: 0.5-1N, Z axis: 5N | ≤1μm | HM8.5 | IP68 |
