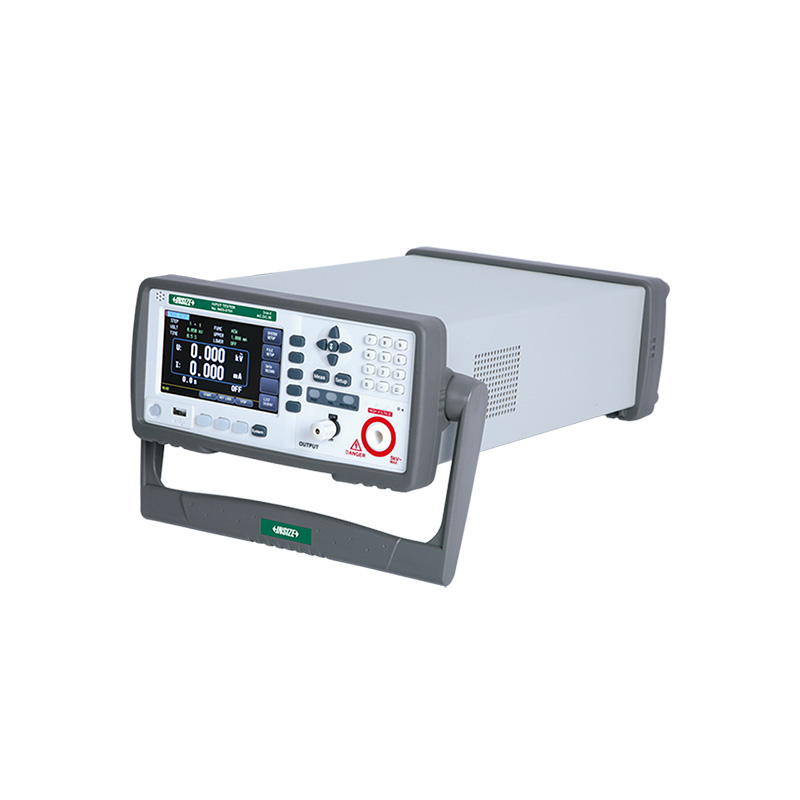

AC/DC Withstanding Voltage Insulation Tester
Code: 9453
5-inch LCD touch screen display
Arc detection function
Electric shock protection function
10 test files can be stored, each file can be edited with 16 test steps
Standard communication interface to meet automation test requirements
Applications: home appliance, transformer, electrical device, component
| Code | AC Withstand Voltage | AC Leakage Current | DC Withstand Voltage | DC Leakage Current | Insulation voltage | Insulation resistance |
|---|---|---|---|---|---|---|
| 9453-ST01 | 5kV | 10mА | 6kV | 5mА | 50V~1000V | 10GΩ |
| 9453-ST02 | 5kV | 20mА | 6kV | 10mА | 50V~1000V | 10GΩ |

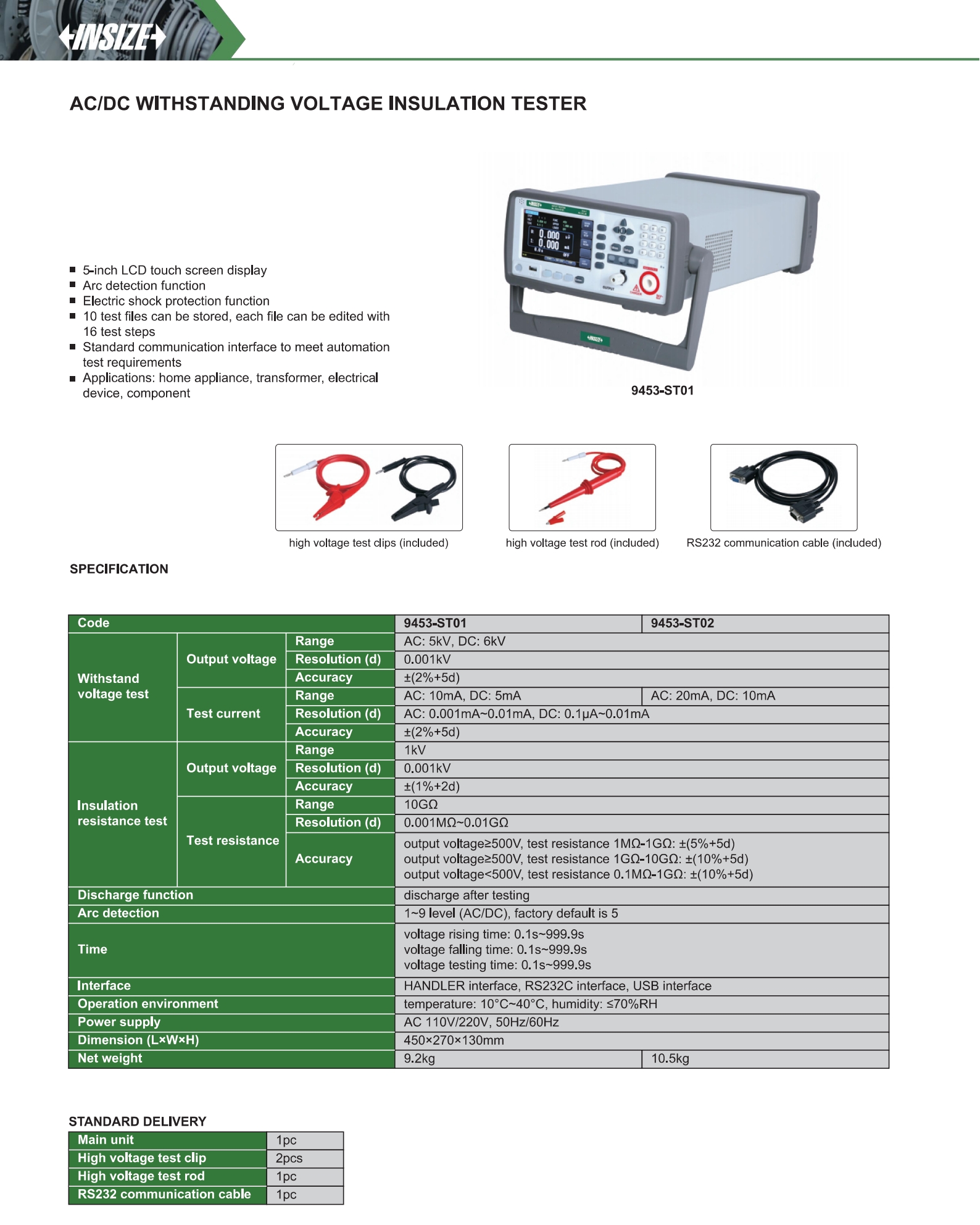

View the complete
product specifications
