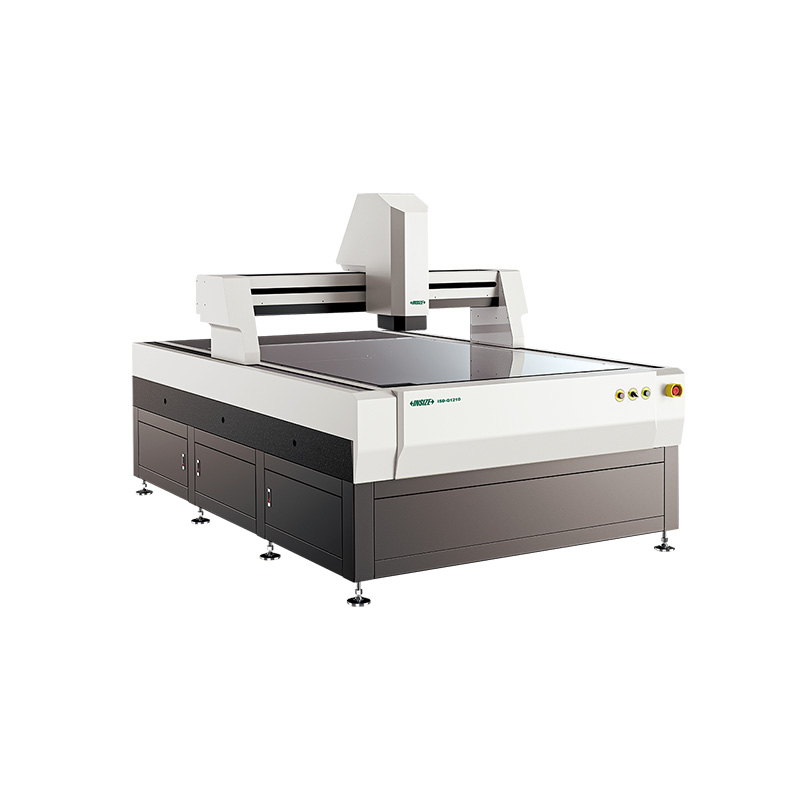

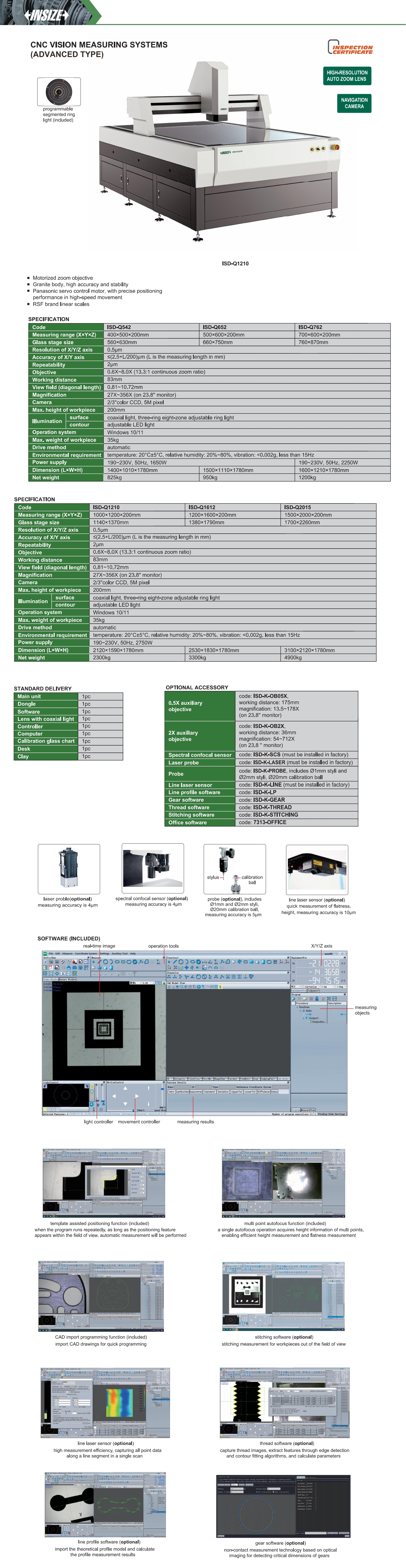

CNC Vision Measuring Systems (Advanced Type)
Code: ISD-Q series
Motorized zoom objective
Granite body, high accuracy and stability
Panasonic servo control motor, with precise positioning performance in high-speed movement
RSF brand linear scales
| Code | Range | Accuracy | Resolution | Repeatability | Magnification | Max. load |
|---|---|---|---|---|---|---|
| ISD-Q542 | 400×500×200mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 27X~356X (on 23.8'' monitor) | 35kg |
| ISD-Q652 | 500×600×200mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 27X~356X (on 23.8'' monitor) | 35kg |
| ISD-Q762 | 700×600×200mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 27X~356X (on 23.8'' monitor) | 35kg |
| ISD-Q1210 | 1000×1200×200mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 27X~356X (on 23.8'' monitor) | 35kg |
| ISD-Q1612 | 1200×1600×200mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 27X~356X (on 23.8'' monitor) | 35kg |
| ISD-Q2015 | 1500×2000×200mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 27X~356X (on 23.8'' monitor) | 35kg |
