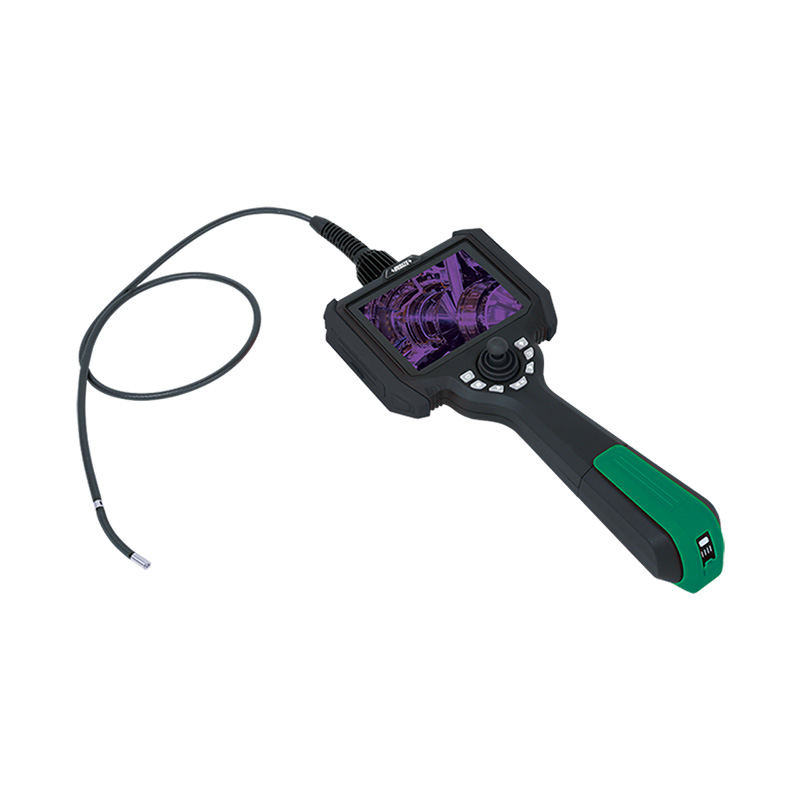

UV Videoscopes (With Cable)
Code: ISV-U Series
| Code | Pixel | Cable type | View direction | Lens diameter(ØD) | Cable length (L) | Bend direction | Illumination |
|---|---|---|---|---|---|---|---|
| ISV-U6010 | 1M | soft (tungsten wire weaved cable) | front view | Ø6mm | 1m | four directions | rear UV fiber optic illumination |
| ISV-U6020 | 1M | soft (tungsten wire weaved cable) | front view | Ø6mm | 2m | four directions | rear UV fiber optic illumination |
| ISV-U6030 | 1M | soft (tungsten wire weaved cable) | front view | Ø6mm | 3m | four directions | rear UV fiber optic illumination |
| ISV-U8010 | 1M | soft (tungsten wire weaved cable) | front view | Ø8mm | 1m | four directions | rear UV fiber optic illumination |
| ISV-U8020 | 1M | soft (tungsten wire weaved cable) | front view | Ø8mm | 2m | four directions | rear UV fiber optic illumination |
| ISV-U8030 | 1M | soft (tungsten wire weaved cable) | front view | Ø8mm | 3m | four directions | rear UV fiber optic illumination |

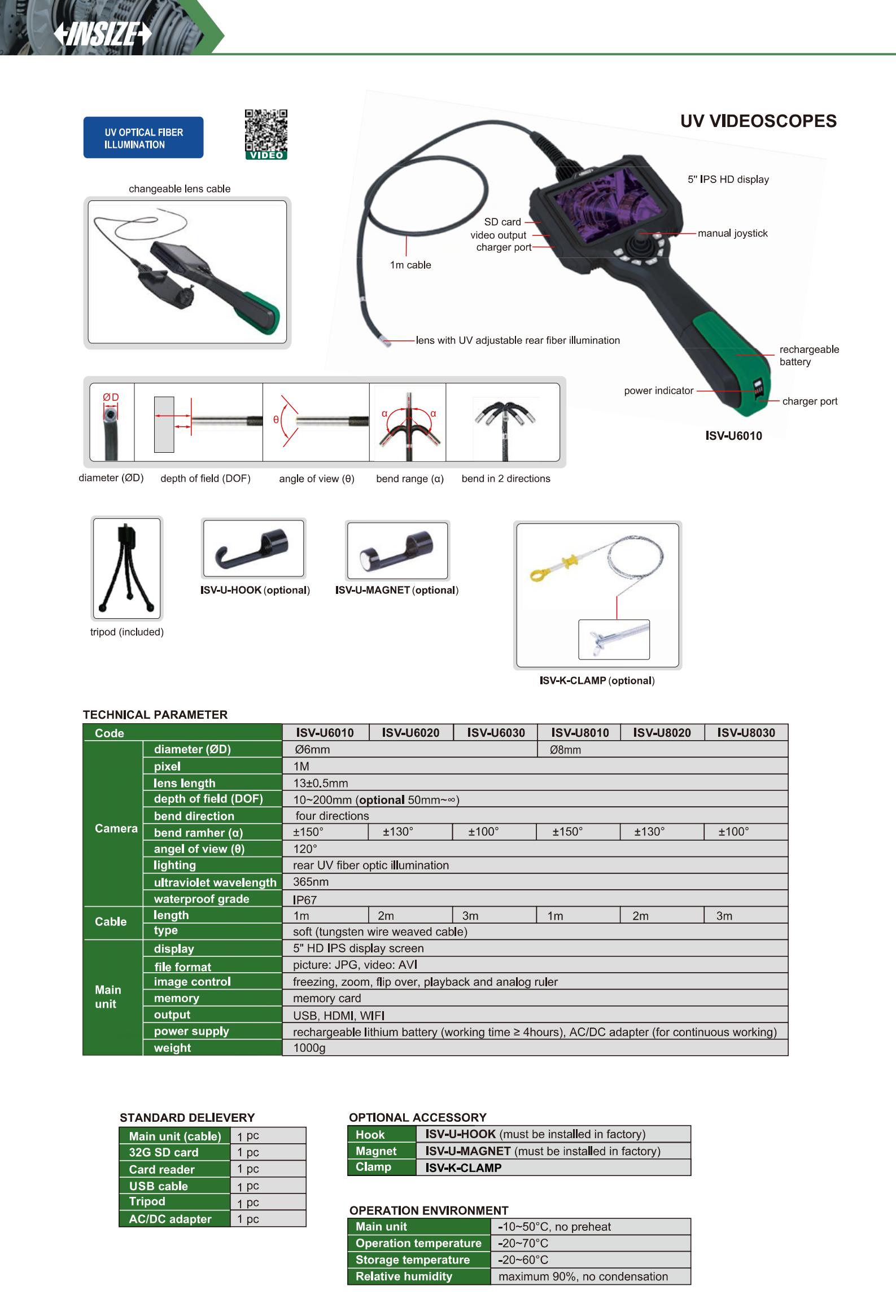

View the complete
product specifications
