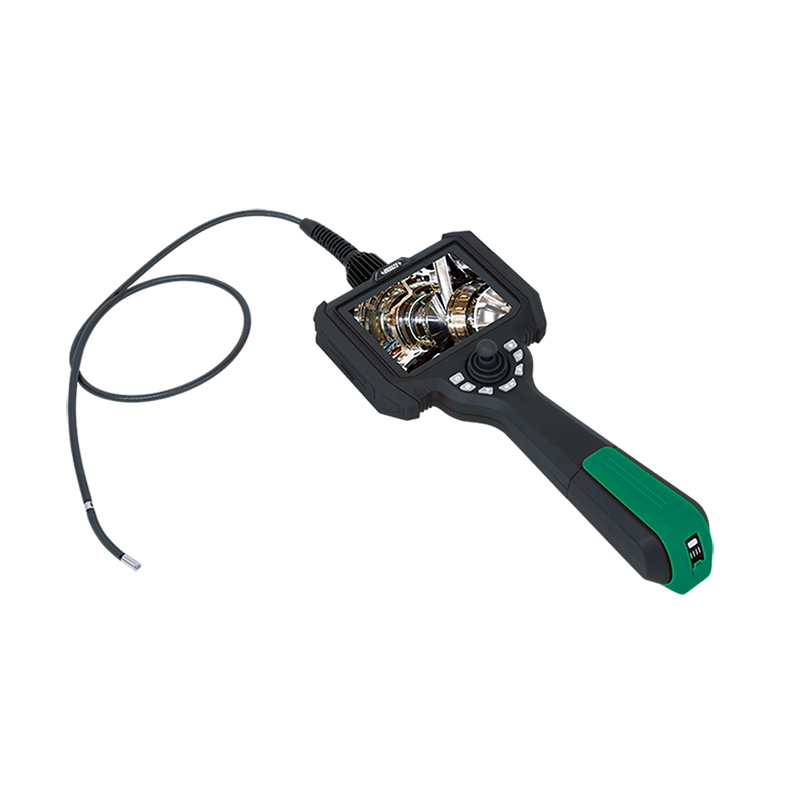

Front and Side View Videoscope (Cable is Optional)
Code: ISV-S Series
| Code | Pixel | Cable type | View direction | Lens diameter(ØD) | Cable length (L) | Bend direction | Illumination |
|---|---|---|---|---|---|---|---|
| ISV-S2810 | 0.16M | soft (tungsten wire weaved cable) | front view and side view | 2.8mm | 1m | four directions | front LED |
| ISV-S2815 | 0.16M | soft (tungsten wire weaved cable) | front view and side view | 2.8mm | 1.5m | four directions | front LED |
| ISV-S2820 | 0.16M | soft (tungsten wire weaved cable) | front view and side view | 2.8mm | 2m | four directions | front LED |
| ISV-S2830 | 0.16M | soft (tungsten wire weaved cable) | front view and side view | 2.8mm | 3m | four directions | front LED |
| ISV-S3910 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 3.9mm | 1m | four directions | rear fiber |
| ISV-S3915 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 3.9mm | 1.5m | four directions | rear fiber |
| ISV-S3920 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 3.9mm | 2m | four directions | rear fiber |
| ISV-S3930 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 3.9mm | 3m | four directions | rear fiber |
| ISV-S3940 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 3.9mm | 4m | four directions | rear fiber |
| ISV-S3950 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 3.9mm | 5m | four directions | rear fiber |
| ISV-S6010 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 6.0mm | 1m | four directions | rear fiber |
| ISV-S6015 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 6.0mm | 1.5m | four directions | rear fiber |
| ISV-S6020 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 6.0mm | 2m | four directions | rear fiber |
| ISV-S6030 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 6.0mm | 3m | four directions | rear fiber |
| ISV-S6040 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 6.0mm | 4m | four directions | rear fiber |
| ISV-S6050 | 0.92M | soft (tungsten wire weaved cable) | front view and side view | 6.0mm | 5m | four directions | rear fiber |
