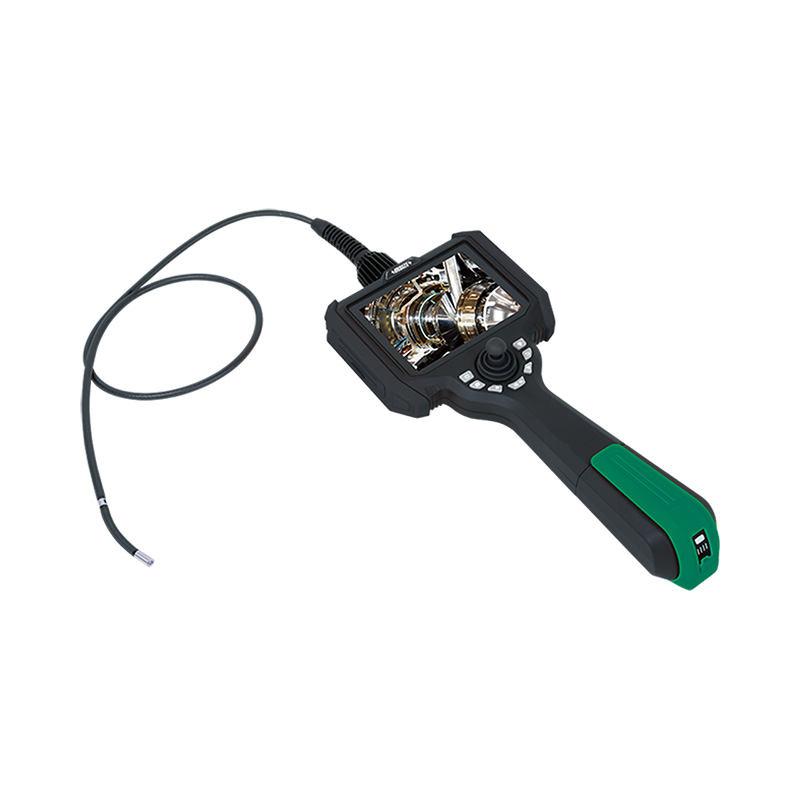

Videoscope (Cable Is Optional)
Code: ISV-L Series
| Code | Pixel | Cable type | View direction | Lens diameter(ØD) | Cable length (L) | Bend direction | Illumination |
|---|---|---|---|---|---|---|---|
| ISV-L09505 | 0.16M | spring tube | front view | 0.95mm | 0.5m | no bend | front LED |
| ISV-L09510 | 0.16M | spring tube | front view | 0.95mm | 1m | no bend | front LED |
| ISV-L1210 | 0.16M | spring tube | front view | 1.2mm | 1m | no bend | front LED |
| ISV-L1510 | 0.16M | soft (tungsten wire weaved cable) | front view | 1.5mm | 1m | no bend | front LED |
| ISV-L1515 | 0.16M | soft (tungsten wire weaved cable) | front view | 1.5mm | 1.5m | no bend | front LED |
| ISV-L1810 | 0.16M | soft (tungsten wire weaved cable) | front view | 1.8mm | 1m | two directions | rear fiber |
| ISV-L2010 | 0.16M | soft (tungsten wire weaved cable) | front view | 2.0mm | 1m | two directions | rear fiber |
| ISV-L2410 | 0.16M | soft (tungsten wire weaved cable) | front view | 2.4mm | 1m | two directions | rear fiber |
| ISV-L2415 | 0.16M | soft (tungsten wire weaved cable) | front view | 2.4mm | 1.5m | two directions | rear fiber |
| ISV-L2420 | 0.16M | soft (tungsten wire weaved cable) | front view | 2.4mm | 2m | two directions | rear fiber |
| ISV-L2810 | 0.16M | soft (tungsten wire weaved cable) | front view | 2.8mm | 1m | four directions | rear fiber |
| ISV-L2815 | 0.16M | soft (tungsten wire weaved cable) | front view | 2.8mm | 1.5m | four directions | rear fiber |
| ISV-L2820 | 0.16M | soft (tungsten wire weaved cable) | front view | 2.8mm | 2m | four directions | rear fiber |
| ISV-L2830 | 0.16M | soft (tungsten wire weaved cable) | front view | 2.8mm | 3m | four directions | rear fiber |
| ISV-L3910 | 0.92M | soft (tungsten wire weaved cable) | front view | 3.9mm | 1m | four directions | rear fiber |
| ISV-L3915 | 0.92M | soft (tungsten wire weaved cable) | front view | 3.9mm | 1.5m | four directions | rear fiber |
| ISV-L3920 | 0.92M | soft (tungsten wire weaved cable) | front view | 3.9mm | 2m | four directions | rear fiber |
| ISV-L3930 | 0.92M | soft (tungsten wire weaved cable) | front view | 3.9mm | 3m | four directions | rear fiber |
| ISV-L3940 | 0.92M | soft (tungsten wire weaved cable) | front view | 3.9mm | 4m | four directions | rear fiber |
| ISV-L3950 | 0.92M | soft (tungsten wire weaved cable) | front view | 3.9mm | 5m | four directions | rear fiber |
| ISV-L6010 | 0.92M | soft (tungsten wire weaved cable) | front view | 6.0mm | 1m | four directions | rear fiber |
| ISV-L6015 | 0.92M | soft (tungsten wire weaved cable) | front view | 6.0mm | 1.5m | four directions | rear fiber |
| ISV-L6020 | 0.92M | soft (tungsten wire weaved cable) | front view | 6.0mm | 2m | four directions | rear fiber |
| ISV-L6030 | 0.92M | soft (tungsten wire weaved cable) | front view | 6.0mm | 3m | four directions | rear fiber |
| ISV-L6040 | 0.92M | soft (tungsten wire weaved cable) | front view | 6.0mm | 4m | four directions | rear fiber |
| ISV-L6050 | 0.92M | soft (tungsten wire weaved cable) | front view | 6.0mm | 5m | four directions | rear fiber |
| ISV-L6060 | 0.92M | soft (tungsten wire weaved cable) | front view | 6.0mm | 6m | four directions | rear fiber |
| ISV-L6070 | 0.92M | soft (tungsten wire weaved cable) | front view | 6.0mm | 7m | four directions | rear fiber |
| ISV-L1810C | 0.16M | soft (tungsten wire weaved cable) | side view | 1.8mm | 1m | two directions | rear fiber |
| ISV-L1815C | 0.16M | soft (tungsten wire weaved cable) | side view | 1.8mm | 1.5m | two directions | rear fiber |
| ISV-L2810C | 0.16M | soft (tungsten wire weaved cable) | side view | 2.8mm | 1m | four directions | rear fiber |
| ISV-L2815C | 0.16M | soft (tungsten wire weaved cable) | side view | 2.8mm | 1.5m | four directions | rear fiber |
| ISV-L2820C | 0.16M | soft (tungsten wire weaved cable) | side view | 2.8mm | 2m | four directions | rear fiber |
| ISV-L2830C | 0.16M | soft (tungsten wire weaved cable) | side view | 2.8mm | 3m | four directions | rear fiber |
| ISV-L4510C | 0.92M | soft (tungsten wire weaved cable) | side view | 4.5mm | 1m | four directions | rear fiber |
| ISV-L4515C | 0.92M | soft (tungsten wire weaved cable) | side view | 4.5mm | 1.5m | four directions | rear fiber |
| ISV-L4520C | 0.92M | soft (tungsten wire weaved cable) | side view | 4.5mm | 2m | four directions | rear fiber |
| ISV-L4530C | 0.92M | soft (tungsten wire weaved cable) | side view | 4.5mm | 3m | four directions | rear fiber |
| ISV-L6010C | 0.92M | soft (tungsten wire weaved cable) | side view | 6.0mm | 1m | four directions | rear fiber |
| ISV-L6015C | 0.92M | soft (tungsten wire weaved cable) | side view | 6.0mm | 1.5m | four directions | rear fiber |
| ISV-L6020C | 0.92M | soft (tungsten wire weaved cable) | side view | 6.0mm | 2m | four directions | rear fiber |
| ISV-L6030C | 0.92M | soft (tungsten wire weaved cable) | side view | 6.0mm | 3m | four directions | rear fiber |
| ISV-L6040C | 0.92M | soft (tungsten wire weaved cable) | side view | 6.0mm | 4m | four directions | rear fiber |
| ISV-L6050C | 0.92M | soft (tungsten wire weaved cable) | side view | 6.0mm | 5m | four directions | rear fiber |
