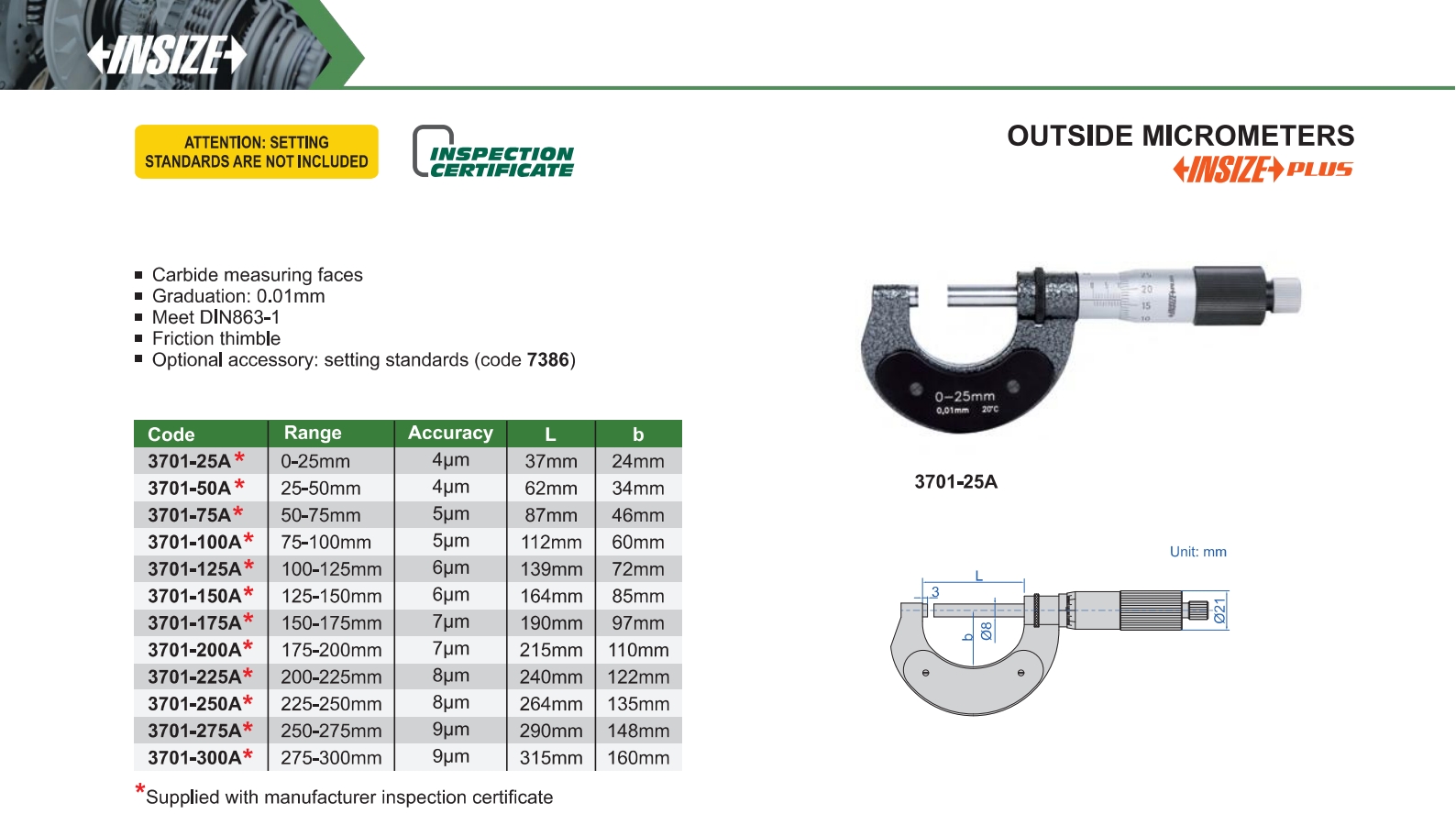

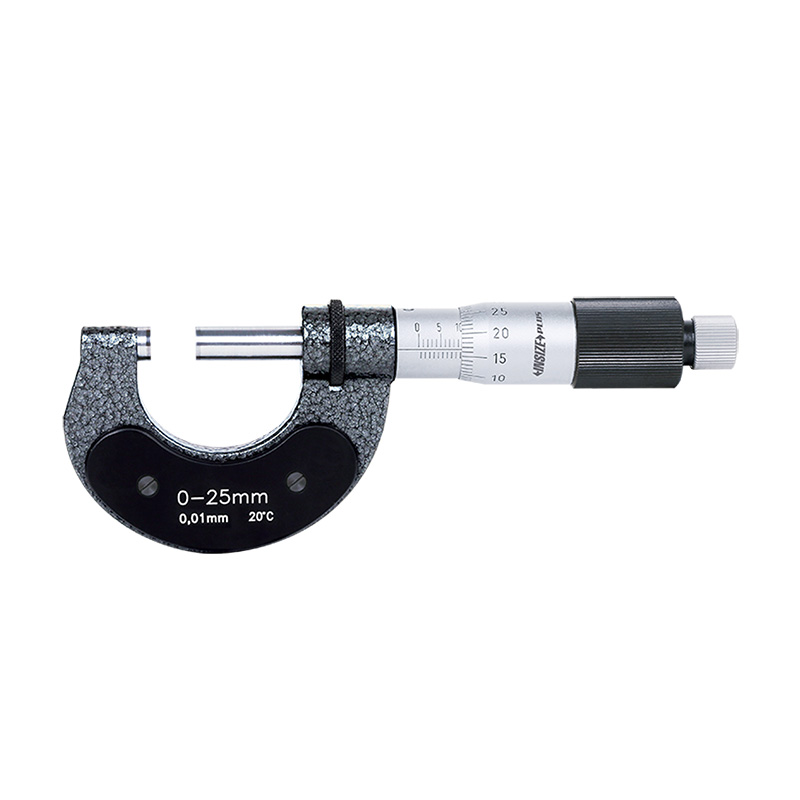

Outside Micrometers
Code: 3701
Carbide measuring faces
Meet DIN863-1
Friction thimble
Optional accessory: setting standards (code 7386)
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3701-25A | 0-25mm | 4µm | 0.01mm |
| 3701-50A | 25-50mm | 4µm | 0.01mm |
| 3701-75A | 50-75mm | 5µm | 0.01mm |
| 3701-100A | 75-100mm | 5µm | 0.01mm |
| 3701-125A | 100-125mm | 6µm | 0.01mm |
| 3701-150A | 125-150mm | 6µm | 0.01mm |
| 3701-175A | 150-175mm | 7µm | 0.01mm |
| 3701-200A | 175-200mm | 7µm | 0.01mm |
| 3701-225A | 200-225mm | 8µm | 0.01mm |
| 3701-250A | 225-250mm | 8µm | 0.01mm |
| 3701-275A | 250-275mm | 9µm | 0.01mm |
| 3701-300A | 275-300mm | 9µm | 0.01mm |
