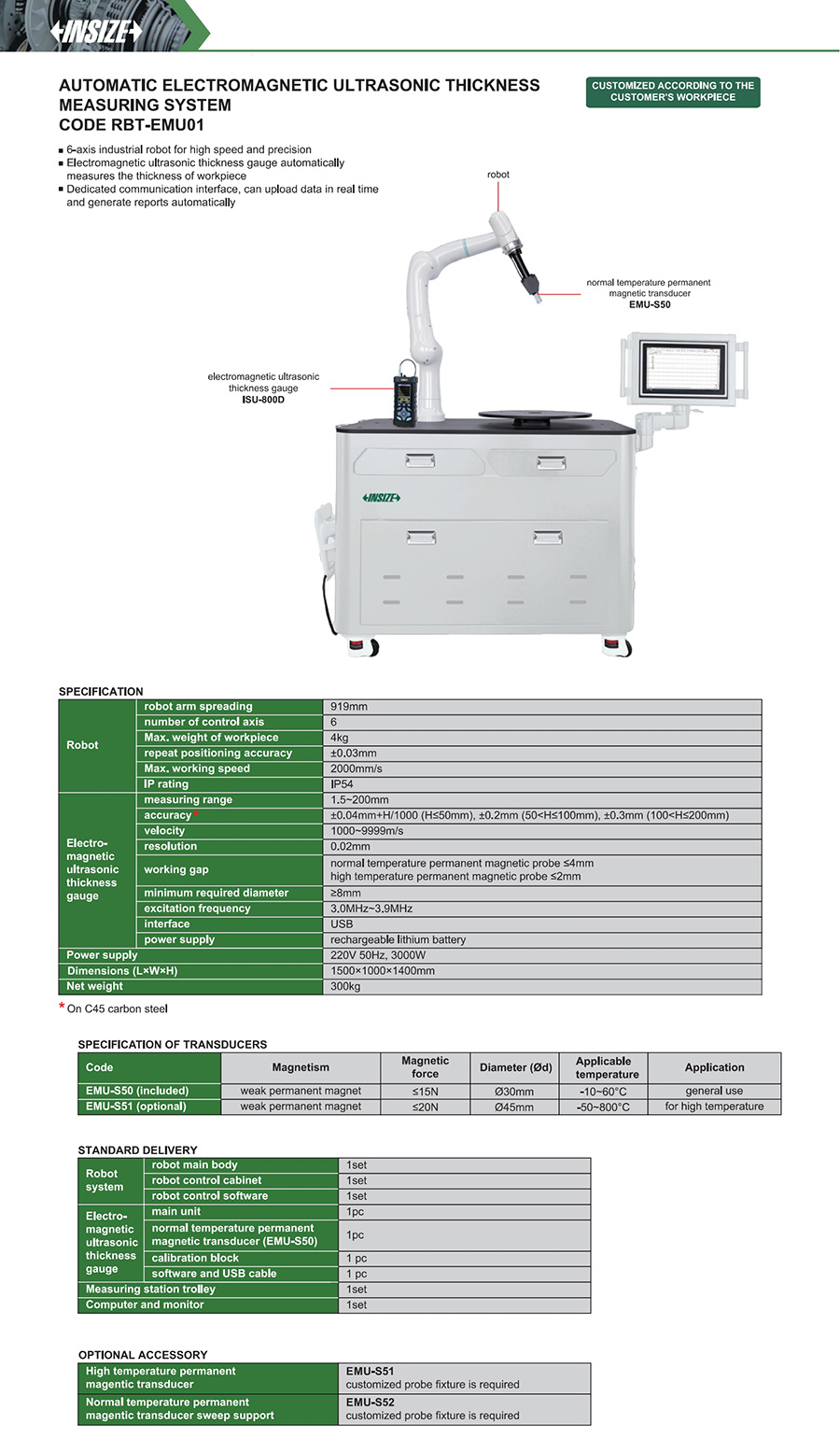

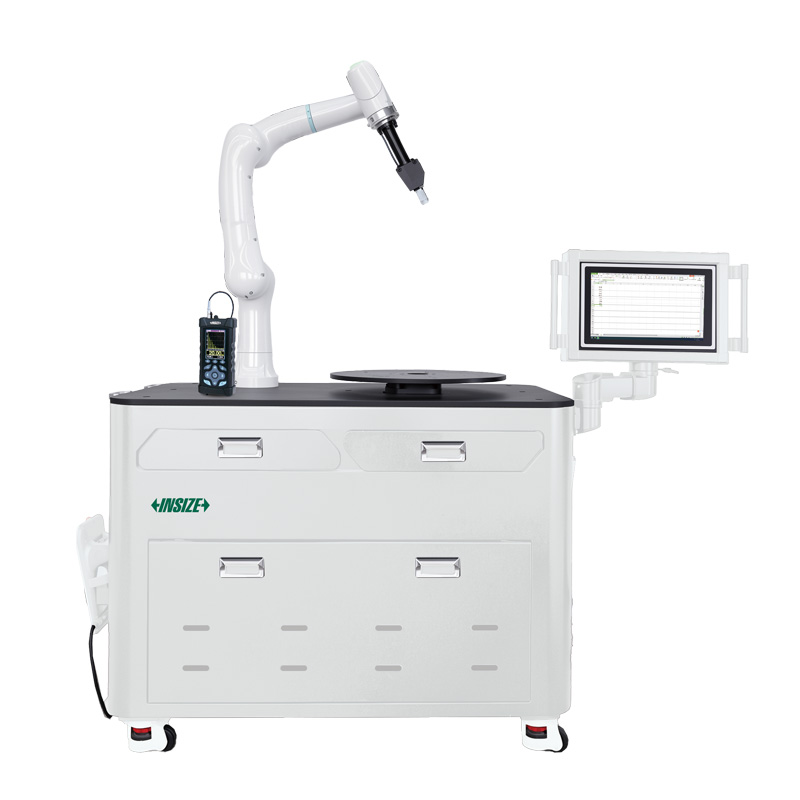

Automatic Electromagnetic Ultrasonic Thickness Measuring System
Code: RBT-EMU01
6-axis industrial robot for high speed and precision
Electromagnetic ultrasonic thickness gauge automatically measures the thickness of workpiece
Dedicated communication interface, can upload data in real time and generate reports automatically
| Code | Range | Accuracy | Velocity | Probe diameter (ØD) |
|---|---|---|---|---|
| RBT-EMU01 | 1.5~200mm | ±0.04mm+H/1000 (H≦50mm), ±0.2mm (50＜H≦100mm), ±0.3mm (100＜H≦200mm) | 1000~9999m/s | Ø30mm |
View the complete
product specifications
