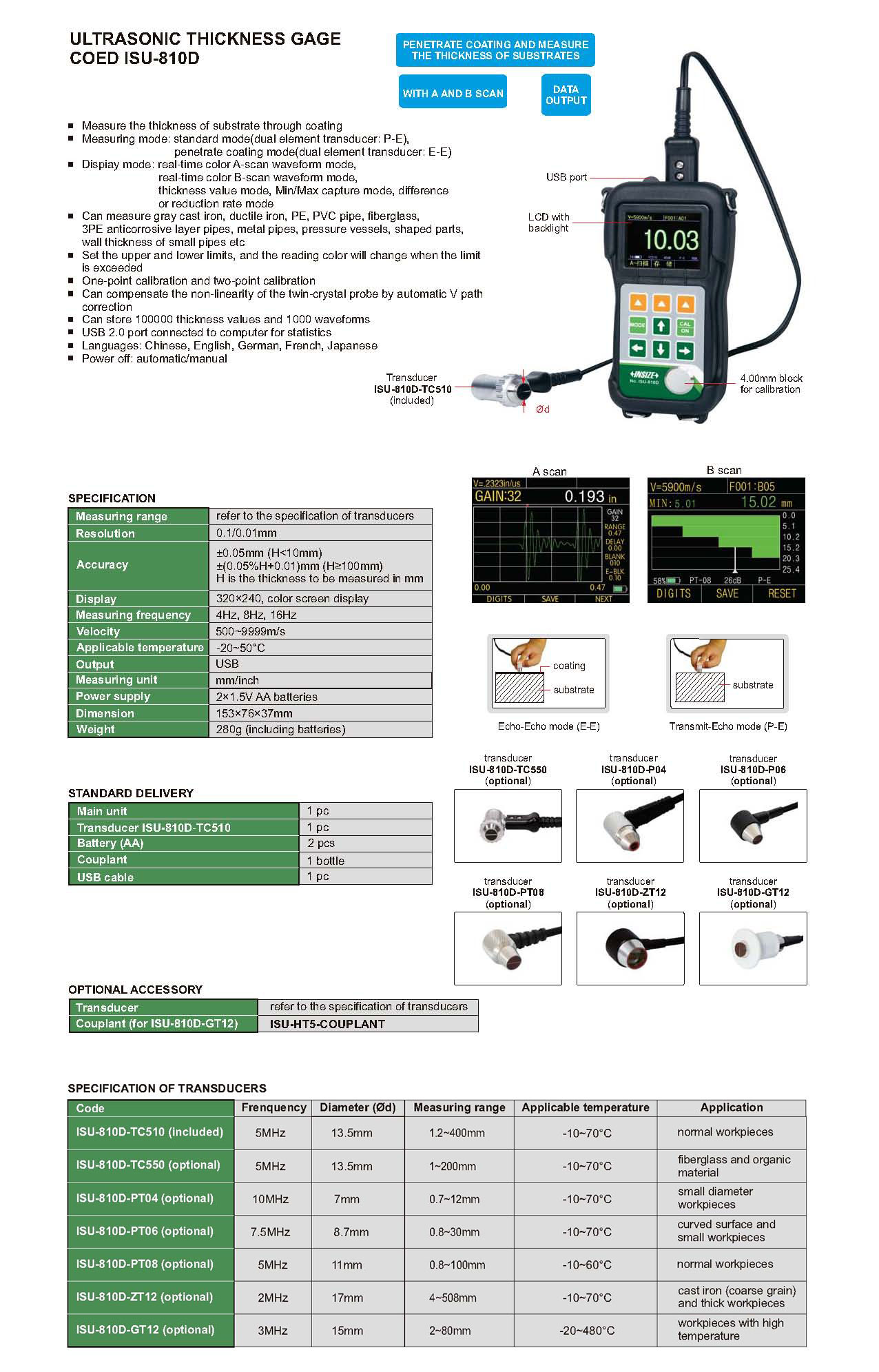

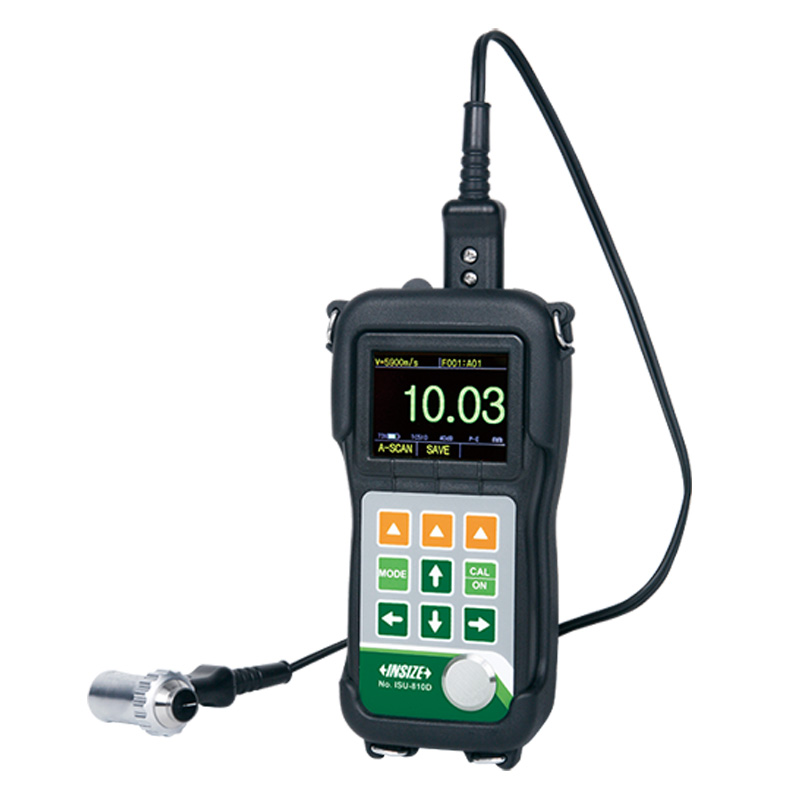

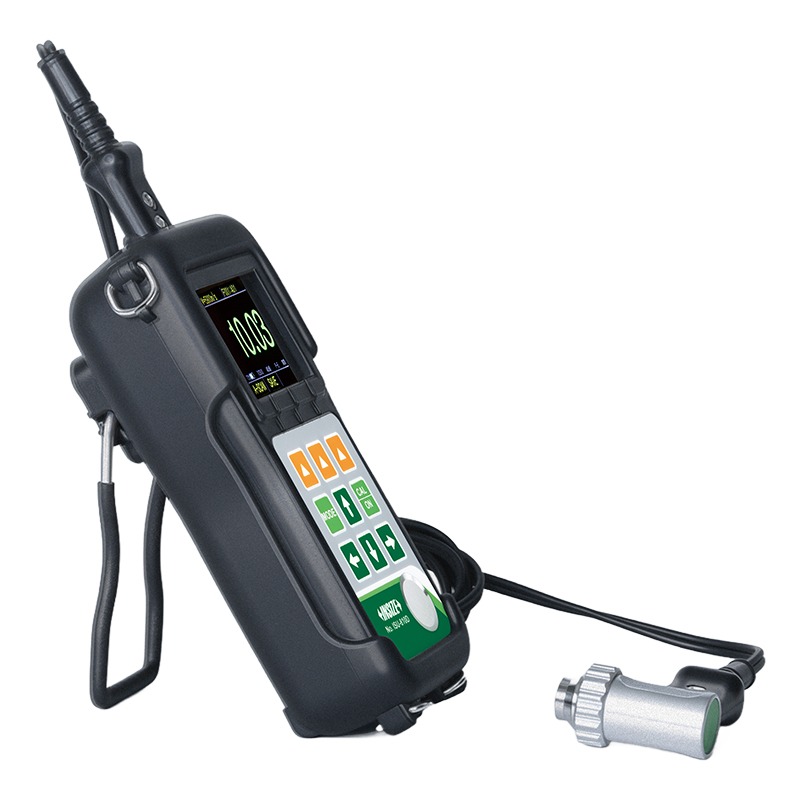

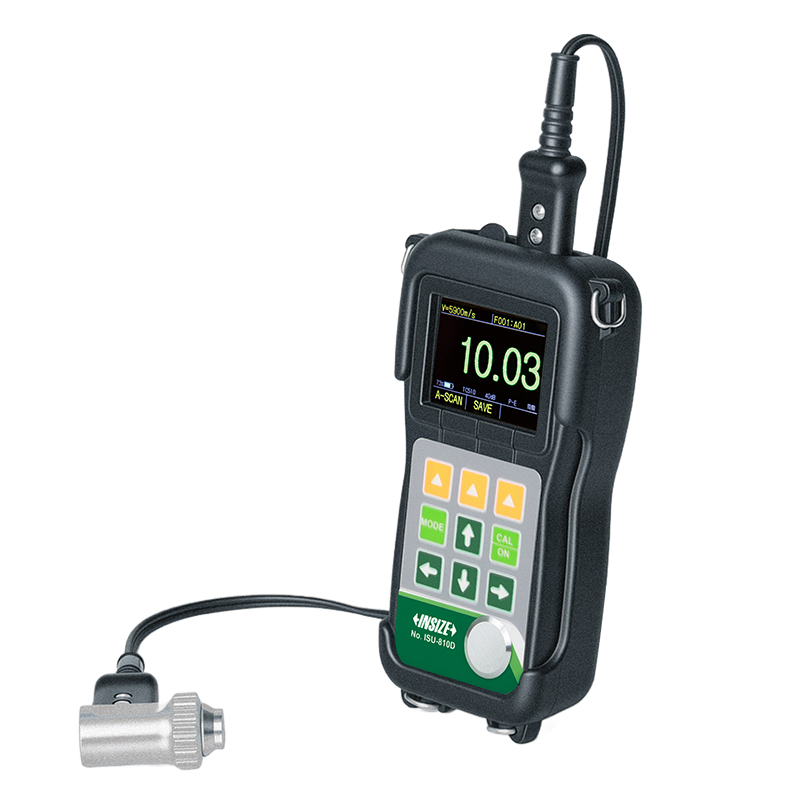

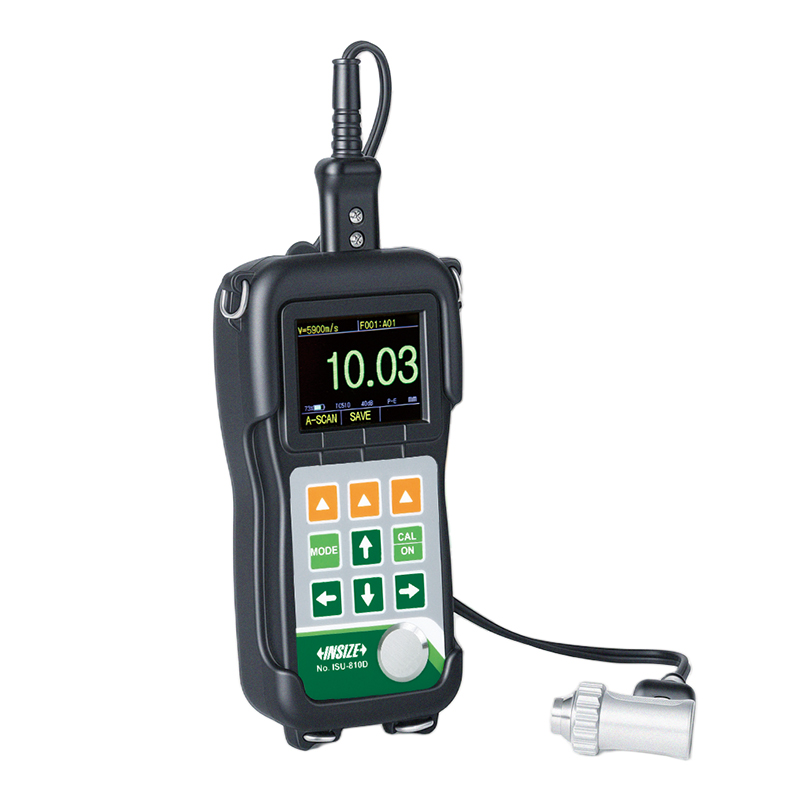

Ultrasonic Thickness Gauge
Code: ISU-810D
Measure the thickness of substrate through coating
Can measure gray cast iron, ductile iron, PE, PVC pipe, fiberglass, 3PE anticorrosive layer pipes, metal pipes, pressure vessels, shaped parts, wall thickness of small pipes etc.
Set the upper and lower limits, and the reading color will change when the limit is exceeded
One-point calibration and two-point calibration
Can compensate the non-linearity of the twin-crystal probe by automatic V path correction
| Code | Range | Accuracy | Frequency | Data transmission | Velocity | Probe diameter (ØD) |
|---|---|---|---|---|---|---|
| ISU-810D | 1.2~400mm | ±0.05mm (H<10mm), ±(0.05%H+0.01)mm (H≥100mm) | 5MHz | USB | 500~9999m/s | 13.5mm |
