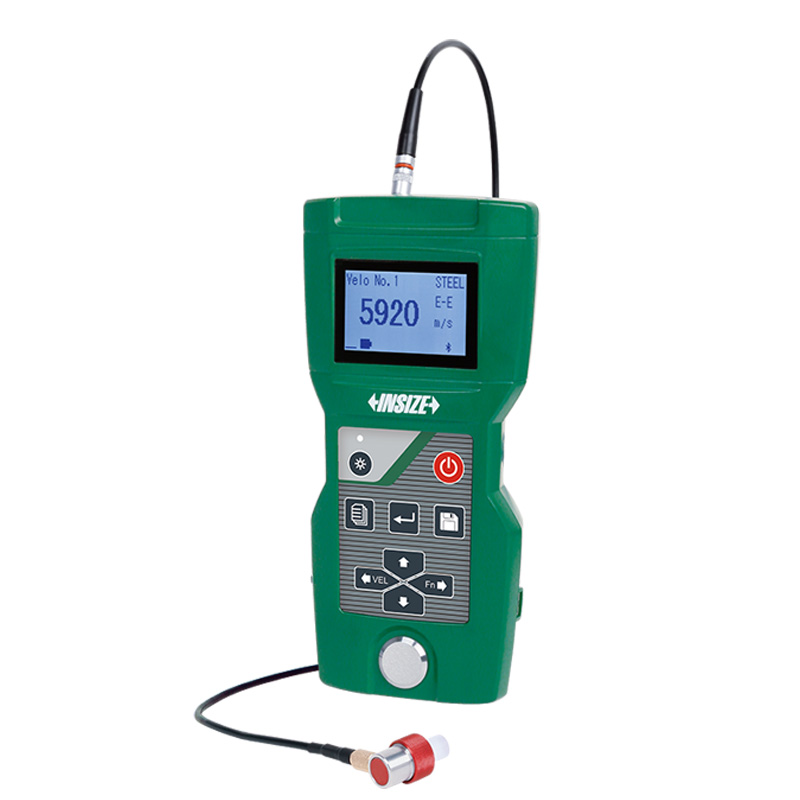

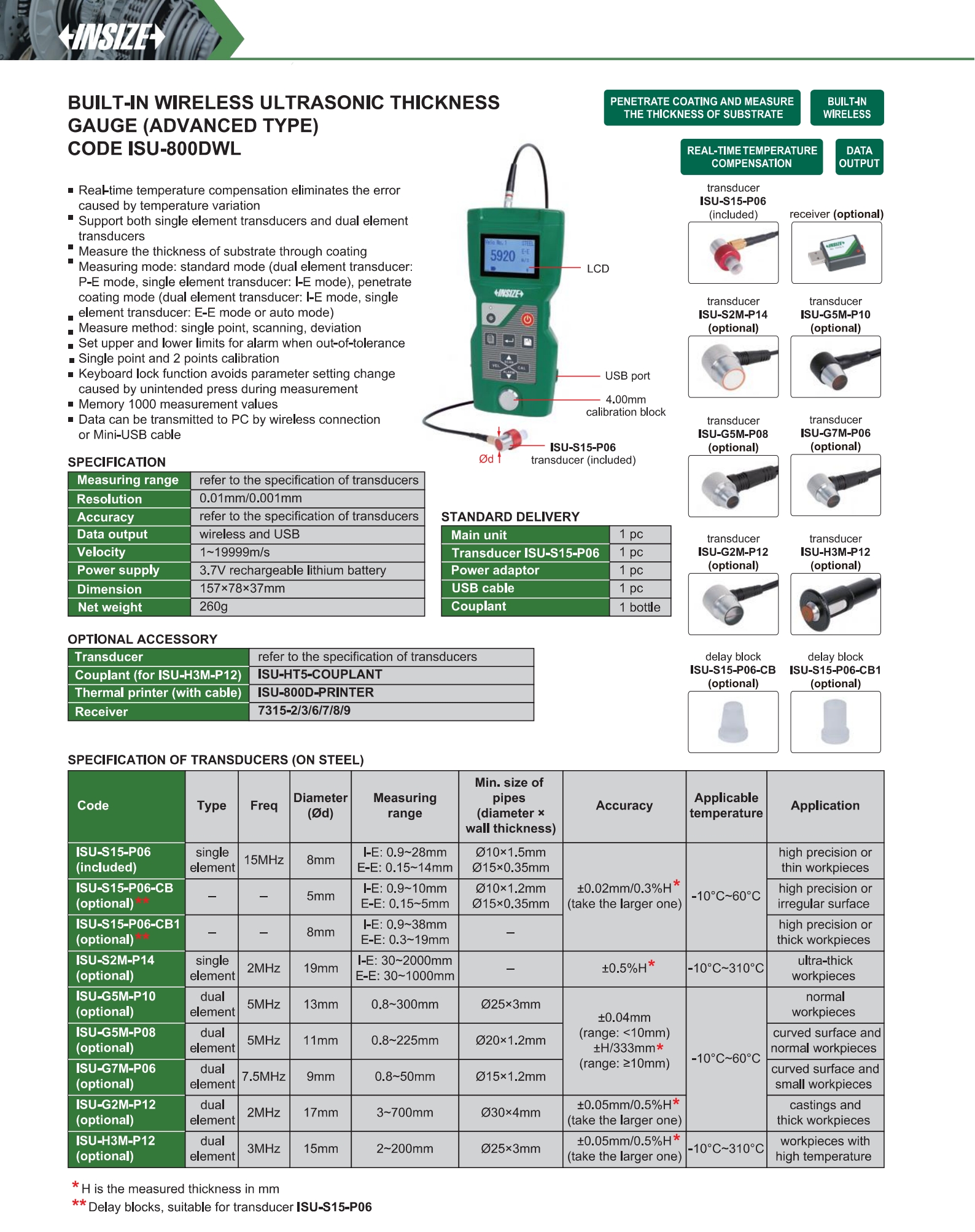

Built-In Wireless Ultrasonic Thickness Gauge (Advanced Type)

Real-time temperature compensation eliminates the error caused by temperature variation

Support both single element transducers and dual element transducers

Measure the thickness of substrate through coating

Measuring mode: standard mode (dual element transducer: P-E mode, single element transducer: I-E mode), penetrate coating mode (dual element transducer: I-E mode, single element transducer: E-E mode or auto mode)

Measure method: single point, scanning, deviation

Set upper and lower limits for alarm when out-of-tolerance

Single point and 2 points calibration

Keyboard lock function avoids parameter setting change caused by unintended press during measurement

Memory 1000 measurement values

Data can be transmitted to PC by wireless connection or Mini-USB cable
