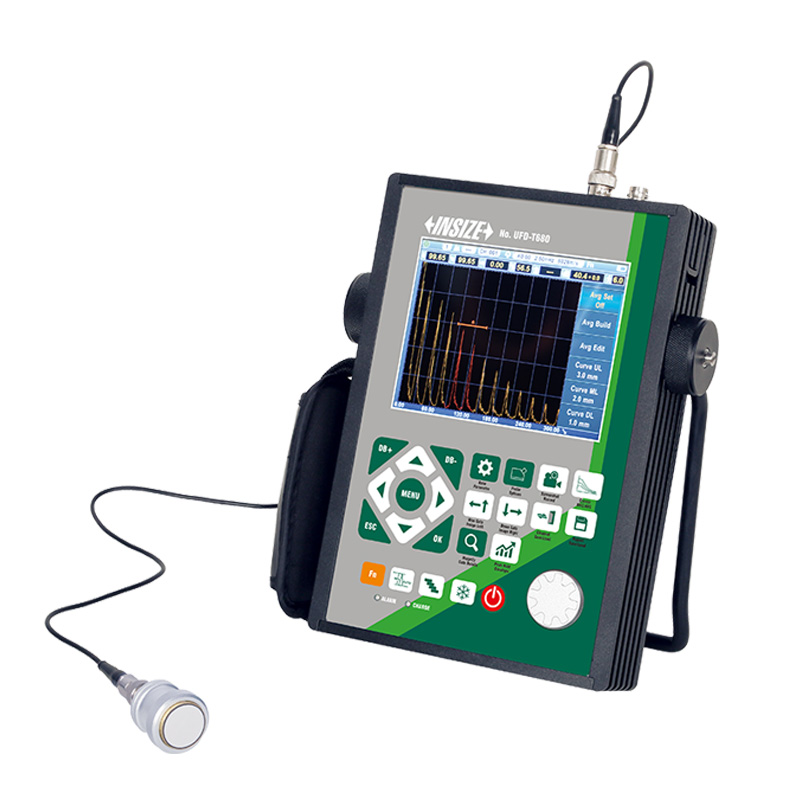

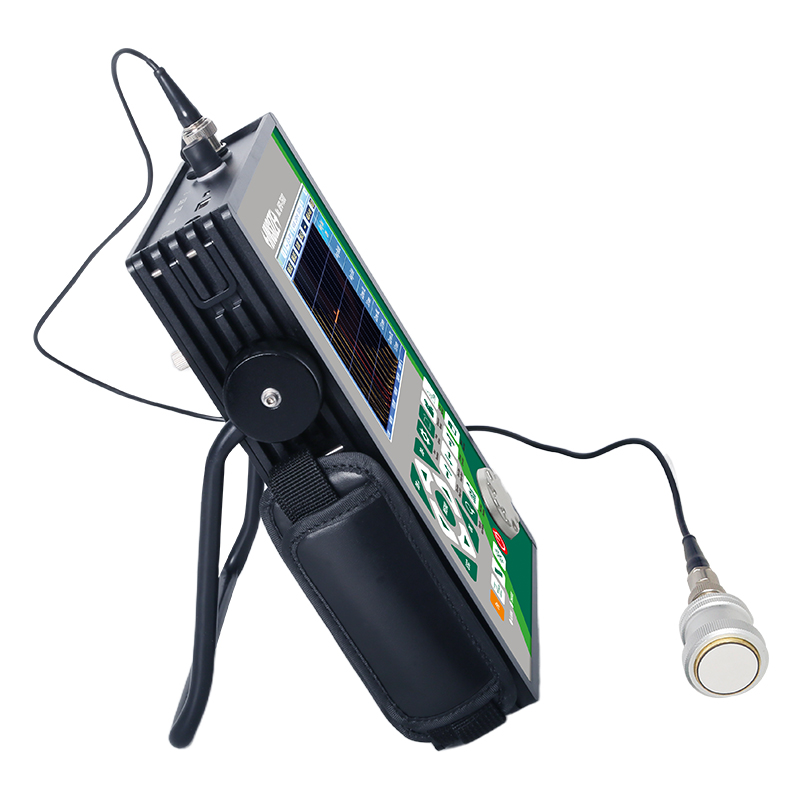

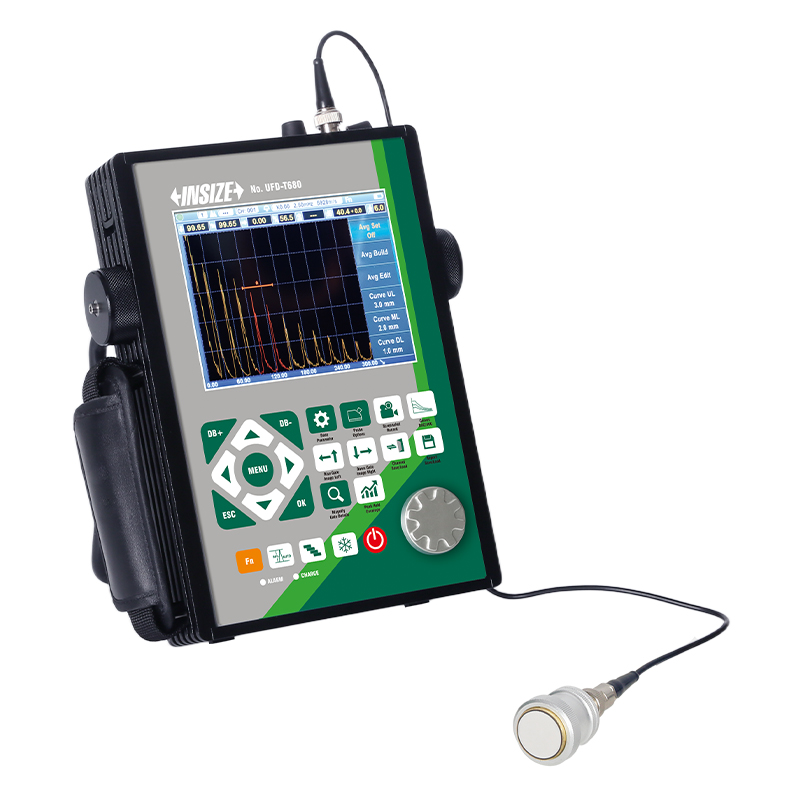

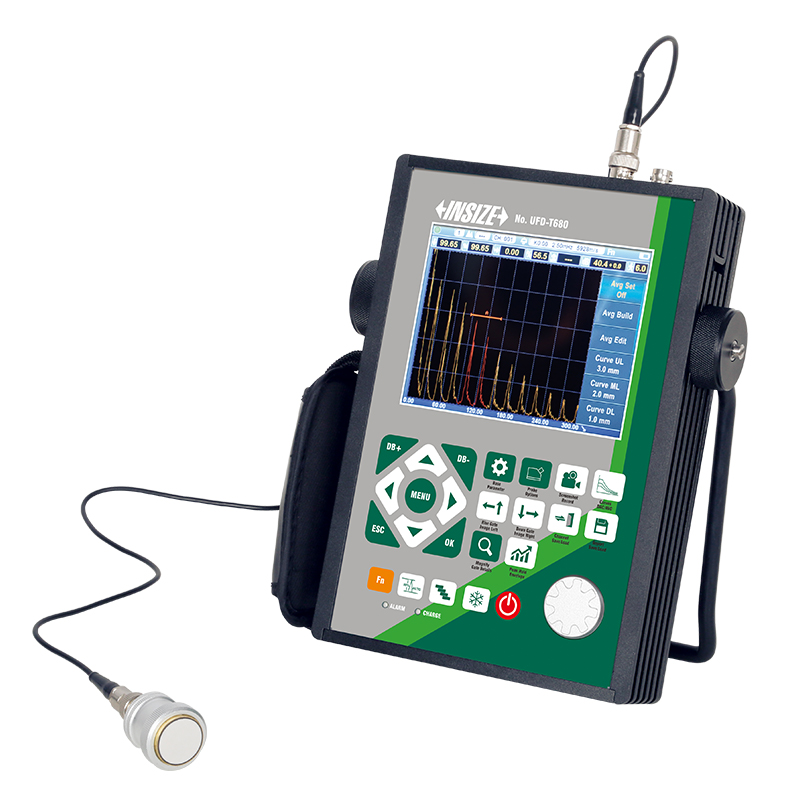

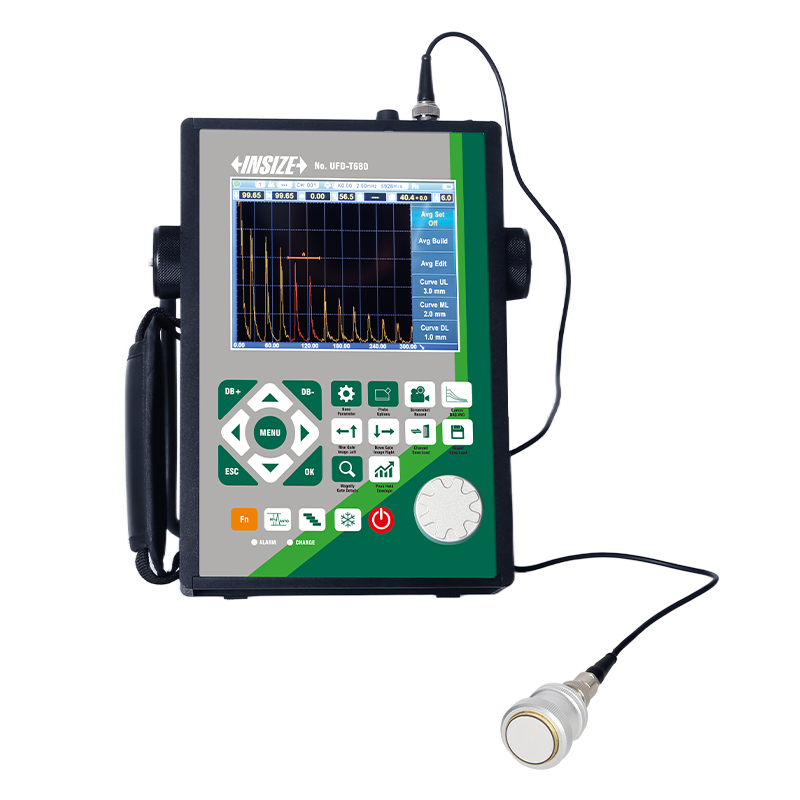

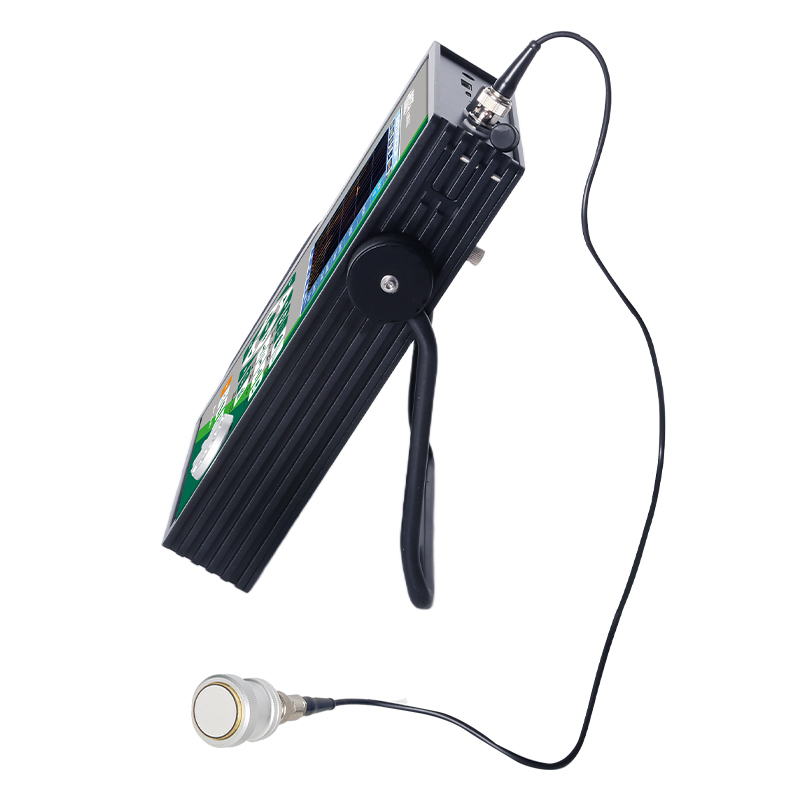

Digital Ultrasonic Flaw Detector (Basic Type)
Code: UFD-T680
The all-aluminum metal shell is strong and durable, and the electromagnetic shielding performance is very good
Tempered glass panel, extremely hard, wear-resistant and scratch-resistant
Full-digital multi-color high resolution (640×480 pixels) TFT LCD display
4 operating interface styles can be selected according to the environment
Real-time screenshots of all pages and flaw detection reports, and save them as BMP pictures to U disk
| Code | Range | Frequency | Vertical linearity | Horizontal linearity | Dynamic range | Resolving power | Sensitivity leavings |
|---|---|---|---|---|---|---|---|
| UFD-T680 | 0~15000mm | 1.0~20MHz | ≤3.0% | ≤1.0% | ≥36dB | >42dB | >65dB |

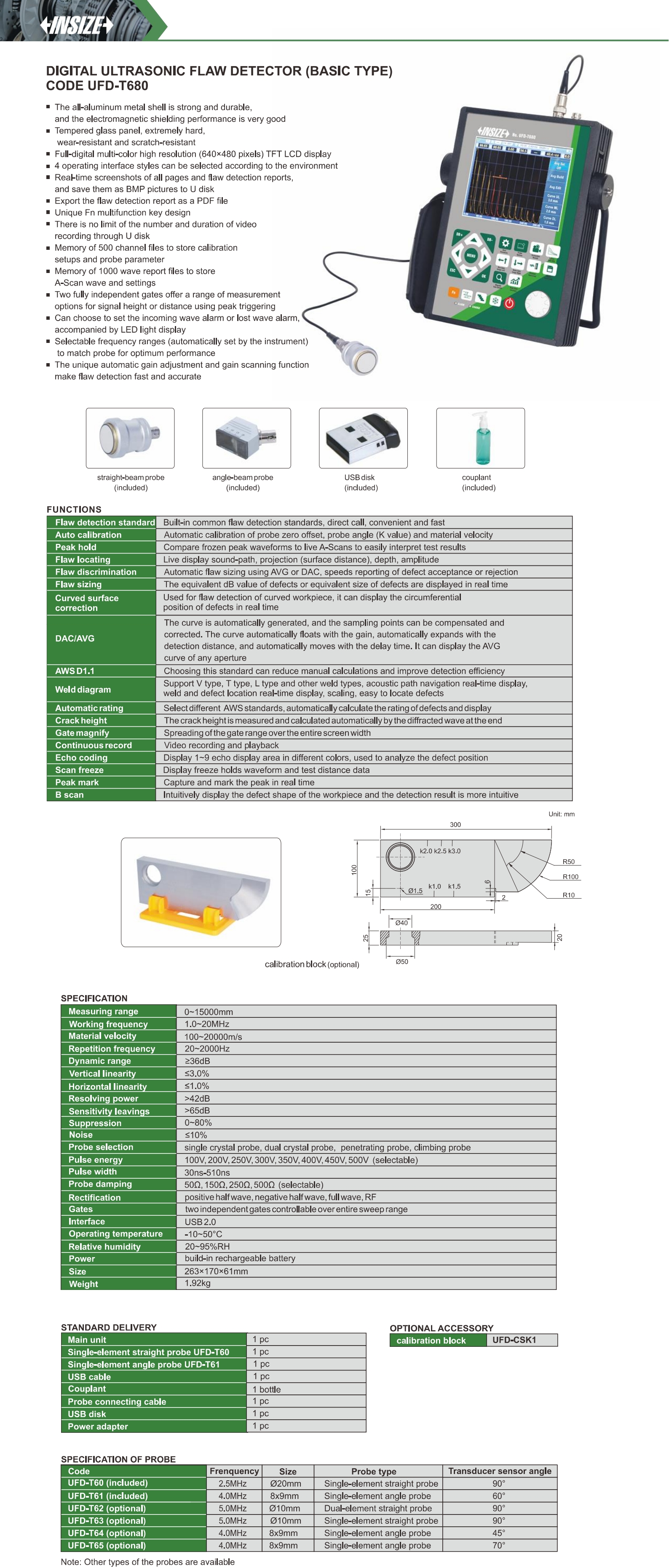

View the complete
product specifications
