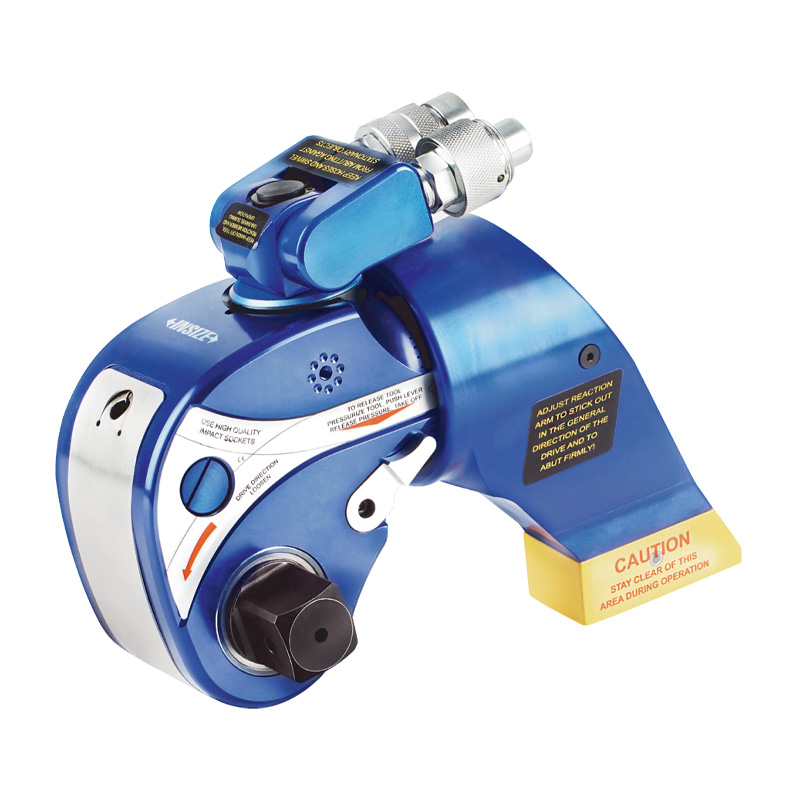

Hydraulic Torque Wrenches With Drive Shaft
Code: IST-HW Series
Constructed with a one-piece housing made of high-tech aerospace aluminum-titanium alloy, it offers outstanding strength while remaining lightweight
Ratchet and pawl adopt coarse-tooth structure, ensuring sufficient safety margin under full load
Special anti-reversal detent prevents reverse rotation caused by springback of deformed bolts
360°×180° oil pipe swivel and 360-degree 60-point fine-tuning reaction arm, suitable for various complex working conditions
60-tooth fine-tuning reaction arm is precisely positioned on a sturdy pivot point and features a trigger-style latch for easy installation removal and adjustment of the reaction arm’s direction
| Code | Type | Range | Data transmission | Presentation Format of Values | Head Type |
|---|---|---|---|---|---|
| IST-HW18 | hydraulic torque wrench | 182~1820N.m | no transmission | no torque display | fixed ratchet head |
| IST-HW42 | hydraulic torque wrench | 425~4250N.m | no transmission | no torque display | fixed ratchet head |
| IST-HW74 | hydraulic torque wrench | 741~7415N.m | no transmission | no torque display | fixed ratchet head |
| IST-HW104 | hydraulic torque wrench | 1047~10470N.m | no transmission | no torque display | fixed ratchet head |
| IST-HW150 | hydraulic torque wrench | 1500~15000N.m | no transmission | no torque display | fixed ratchet head |
| IST-HW213 | hydraulic torque wrench | 2135~21351N.m | no transmission | no torque display | fixed ratchet head |
| IST-HW267 | hydraulic torque wrench | 2678~26785N.m | no transmission | no torque display | fixed ratchet head |
| IST-HW350 | hydraulic torque wrench | 3509~35096N.m | no transmission | no torque display | fixed ratchet head |
| IST-HW516 | hydraulic torque wrench | 5160~51600N.m | no transmission | no torque display | fixed ratchet head |
