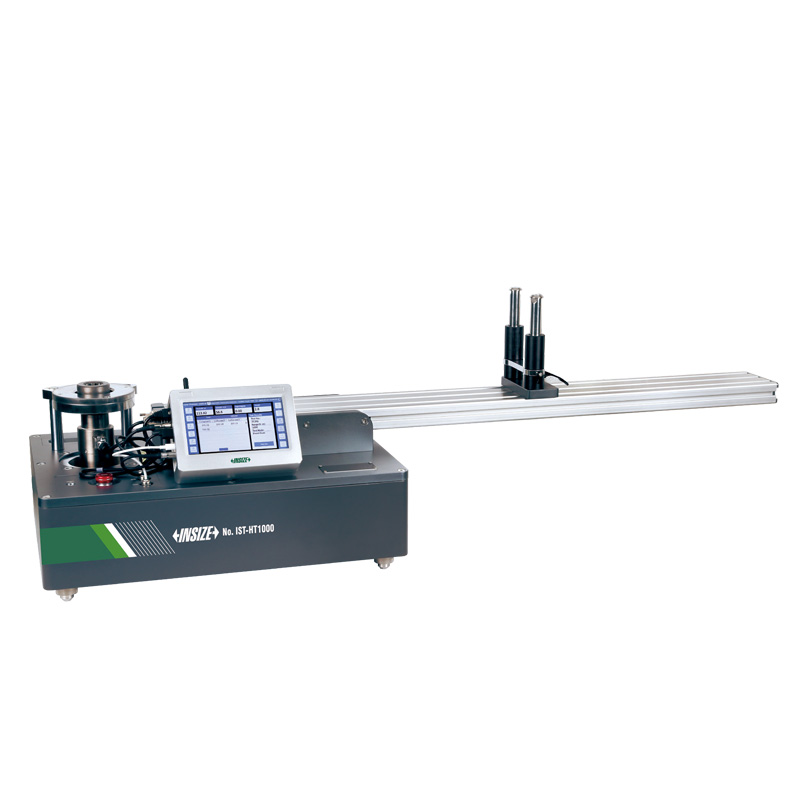

Automatic Torque Wrench Calibrator
Code: IST-HT1000
Unit: N.m, cN.m, in.lb, ft.lb, kg.cm
Automatically load clockwise or counterclockwise
The test curve can be displayed in real time
Four test modes: preset mode, preset mode (manual), indication mode (standard), indication mode (device under test)
Pre-defined test templates for use when testing wrenches of the same specifications
Single-point and multi-point automated testing and fatigue testing of torque wrenches
7-inch HD touchscreen, the instrument can measure ambient temperature, humidity, and atmospheric pressure
Can be connected to a barcode scanner and a label printer, scan the QR code or barcode to retrieve instrument information, once the calibration is complete, a “Pass” label will be printed automatically
Features unique PID control and constant torque loading, enabling rapid calibration of high and low ranges on torque wrenches
The measurement and control system is developed based on the Linux operating system
The torque sensor features a square-ended design, screwless mounting for quick plug-and-play replacement
Built-in Ethernet and Wi-Fi
| Code | Sensor type | Torque testing category | Installation method | With buffer | Max. torque value |
|---|---|---|---|---|---|
| IST-HT1000 | Fixed type | Static torque | Mounted on machine | no | 1000N.m |
