| Code | Sensor type | Torque testing category | Installation method | With buffer | Max. torque value |
|---|---|---|---|---|---|
| IST-07TS3000 | Fixed type | Static torque | Mounted on machine | no | 3000N.m |

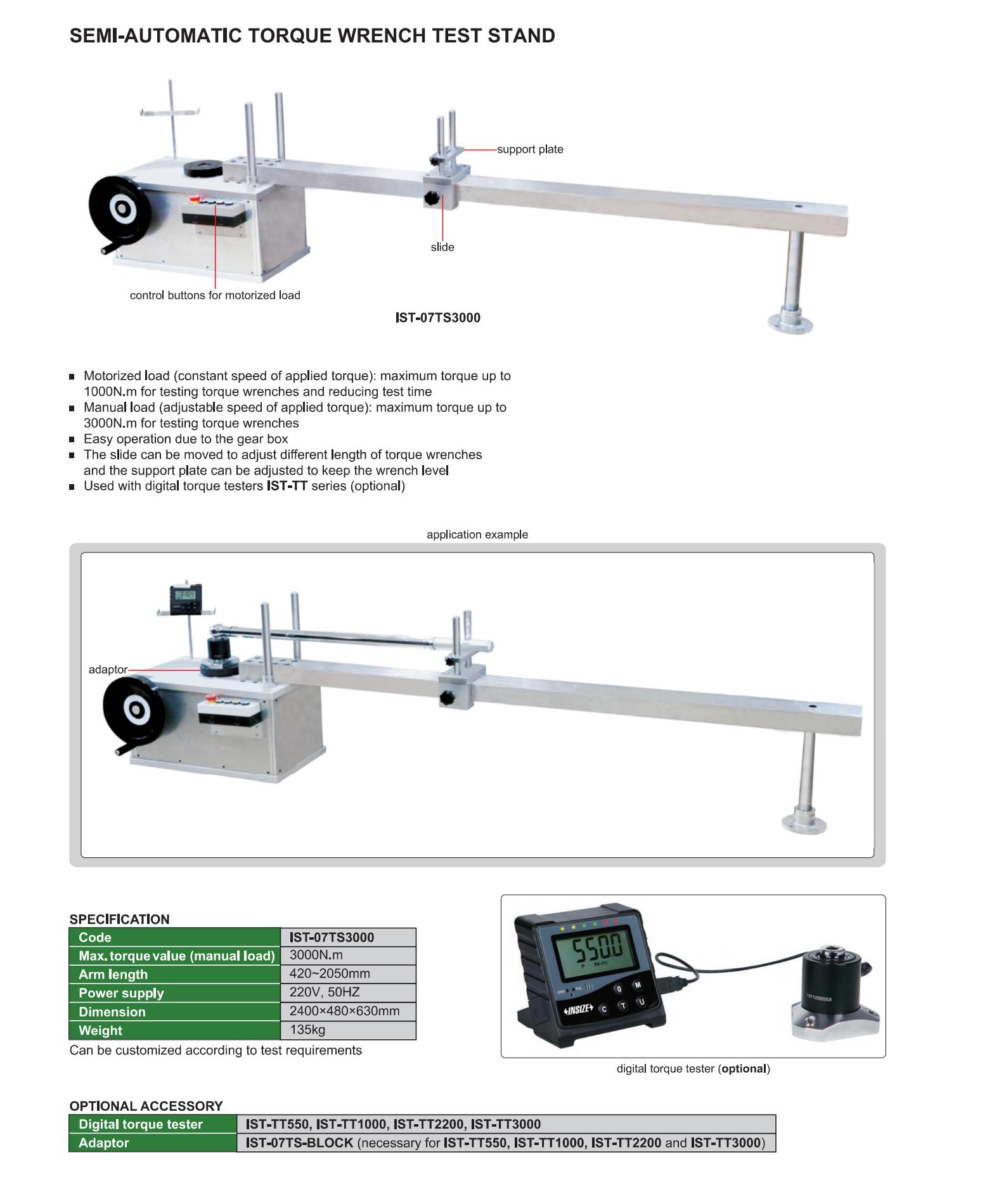

Motorized load (constant speed of applied torque): maximum torque up to 1000N.m for testing torque wrenches and reducing test time
Manual load (adjustable speed of applied torque): maximum torque up to 3000N.m for testing torque wrenches
Easy operation due to the gear box
The slide can be moved to adjust different length of torque wrenches and the support plate can be adjusted to keep the wrench level
| Code | Sensor type | Torque testing category | Installation method | With buffer | Max. torque value |
|---|---|---|---|---|---|
| IST-07TS3000 | Fixed type | Static torque | Mounted on machine | no | 3000N.m |
View the complete
product specifications
