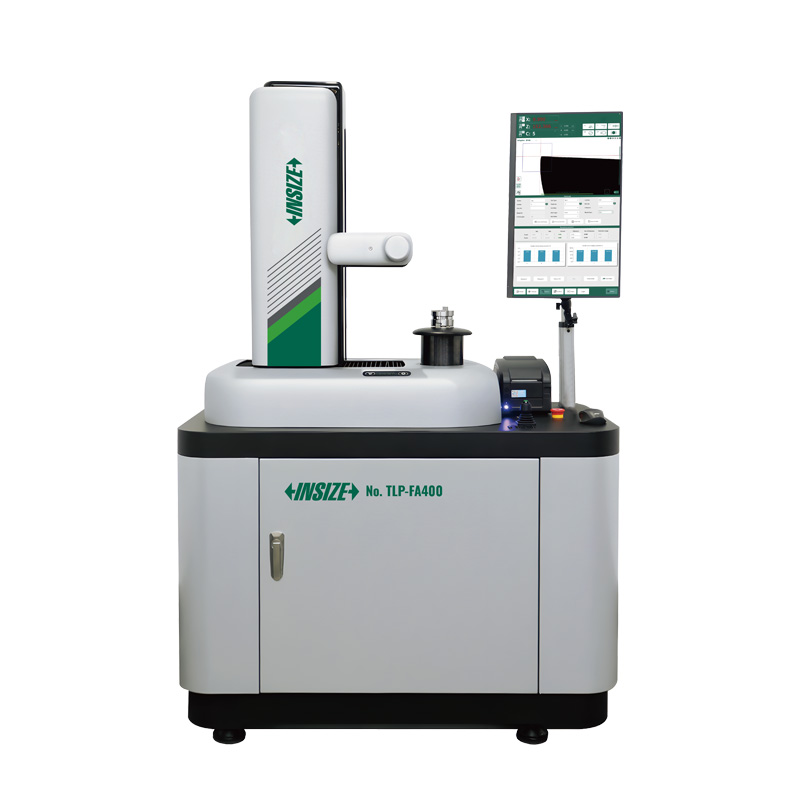

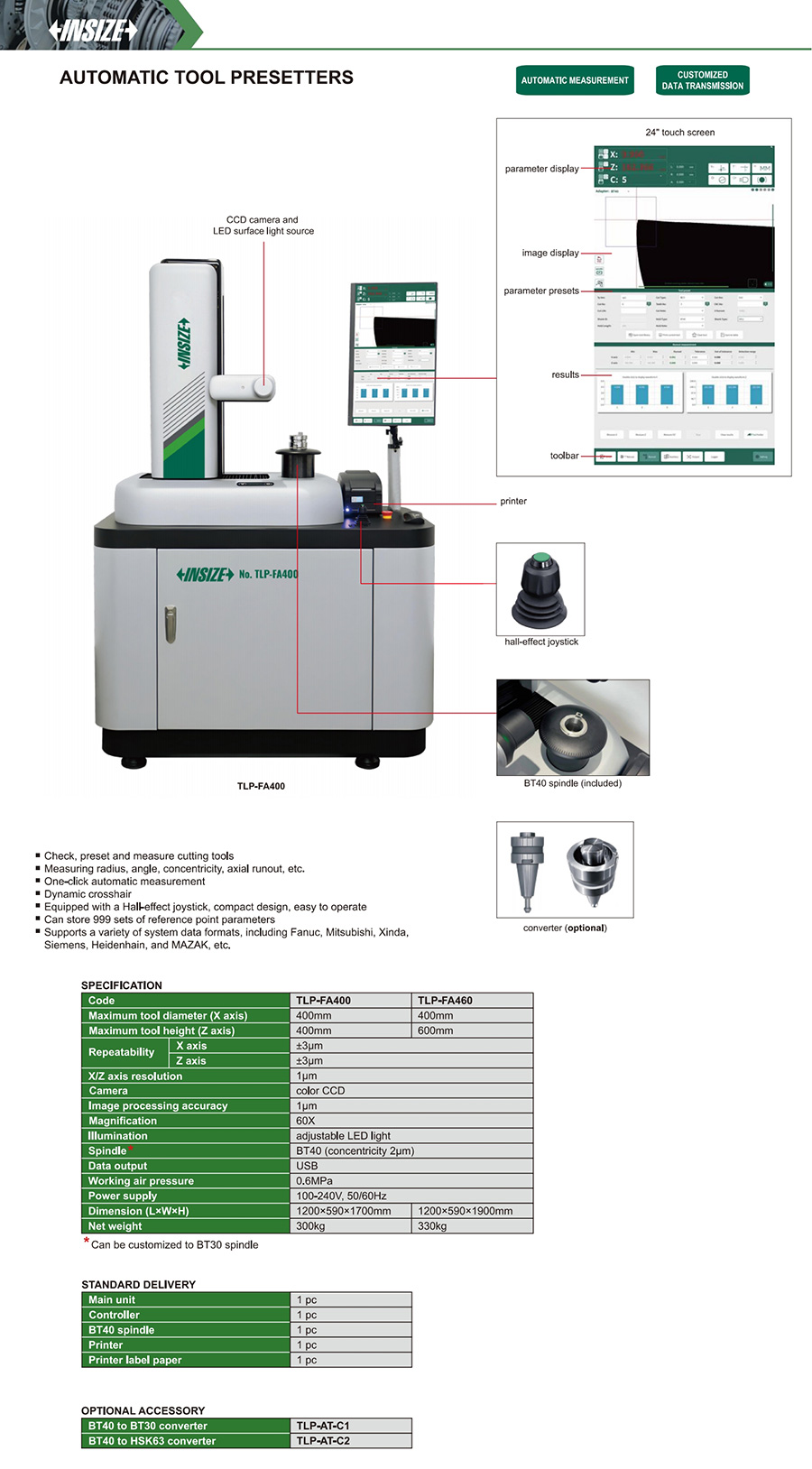

Automatic Tool Presetters
Code: TLP-FA400/FA460
Check, preset and measure cutting tools
Measuring radius, angle, concentricity, axial runout, etc.
One-click automatic measurement
Dynamic crosshair
Equipped with a Hall-effect joystick, compact design, easy to operate
Can store 999 sets of reference point parameters
Supports a variety of system data formats, including Fanuc, Mitsubishi, Xinda, Siemens, Heidenhain, and MAZAK, etc.
| Code | Maximum tool diameter (X axis) | Maximum tool height (Z axis) | Repeatability of X axis | Repeatability of Z axis | X/Z axis resolution |
|---|---|---|---|---|---|
| TLP-FA400 | 400mm | 400mm | ±3µm | ±3µm | 1µm |
| TLP-FA460 | 400mm | 600mm | ±3µm | ±3µm | 1µm |
