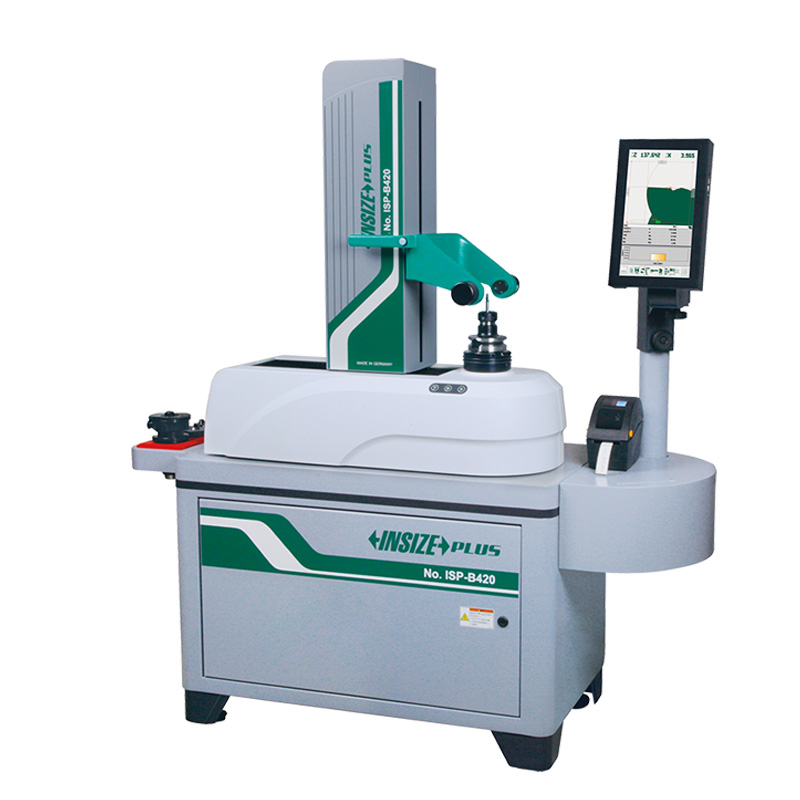

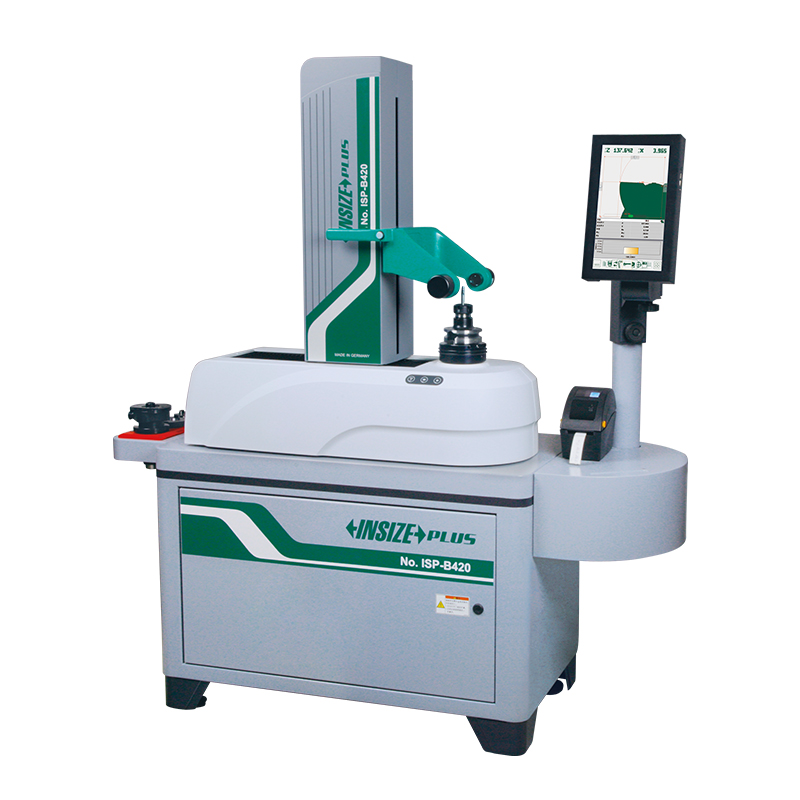

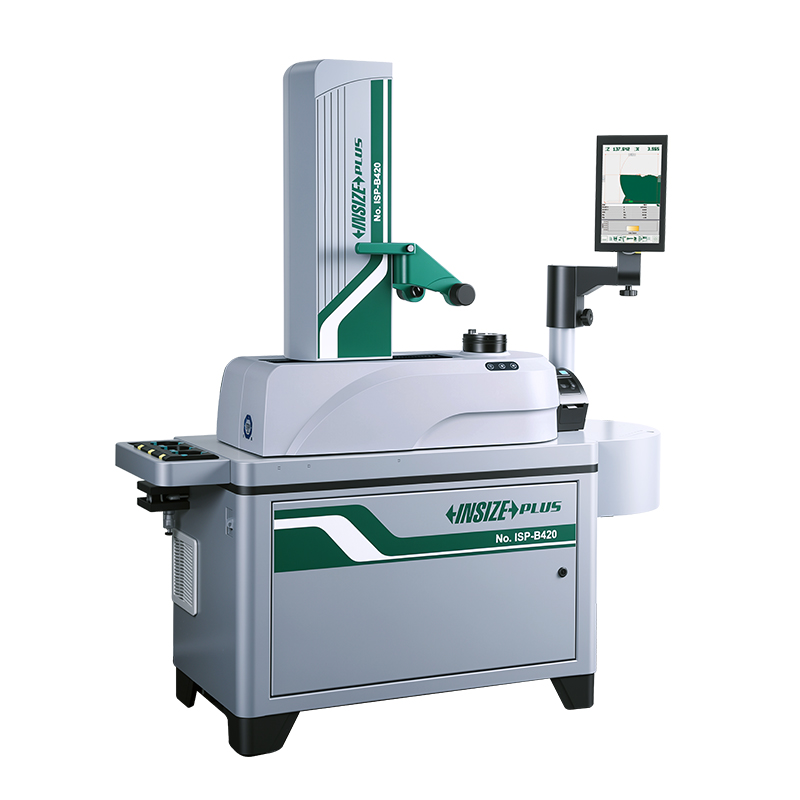

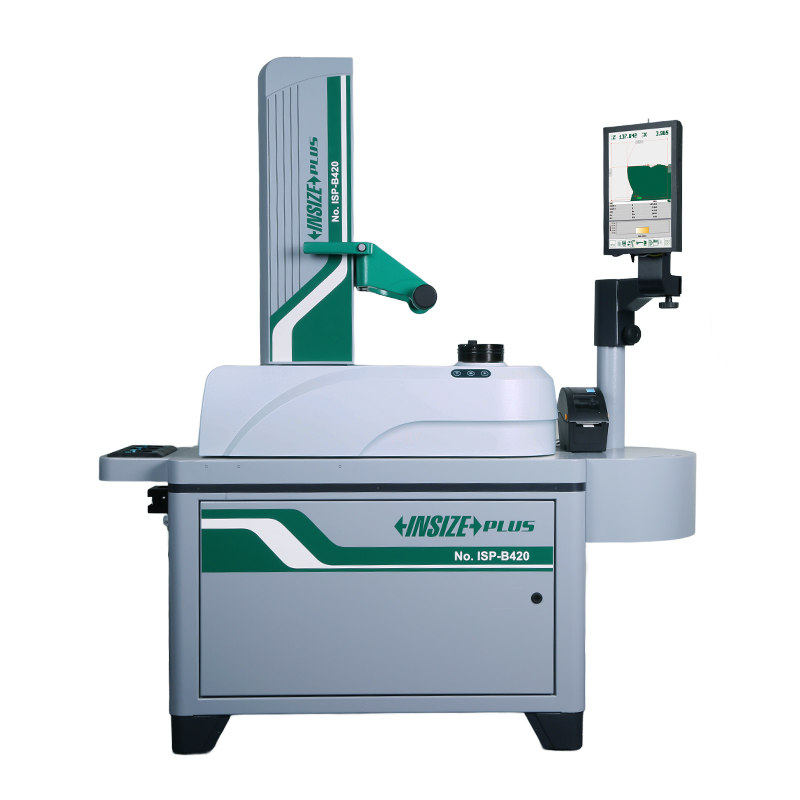

Tool Presetters
Code: ISP-B420/B420H
Windows 10 operation system
Check, preset and measure cutting tools
Telecentric lens CCD camera system
Use Bosch or Festo pneumatic components, THK guideways and HEIDENHAIN scales
Built-in 113 cutting edge shapes, automatic recognition
Measuring modes: absolute, relative and incremental measurement
Measuring radius, angle, concentricity, axial runout, etc.
Storage of 3000 tool parameters
View, print and export measurement results
| Code | Maximum tool diameter (X axis) | Maximum tool height (Z axis) | Repeatability of X axis | Repeatability of Z axis | X/Z axis resolution |
|---|---|---|---|---|---|
| ISP-B420 | 420mm | 420mm | 2µm | 2µm | 1µm |
| ISP-B420H | 420mm | 600mm | 2µm | 2µm | 1µm |

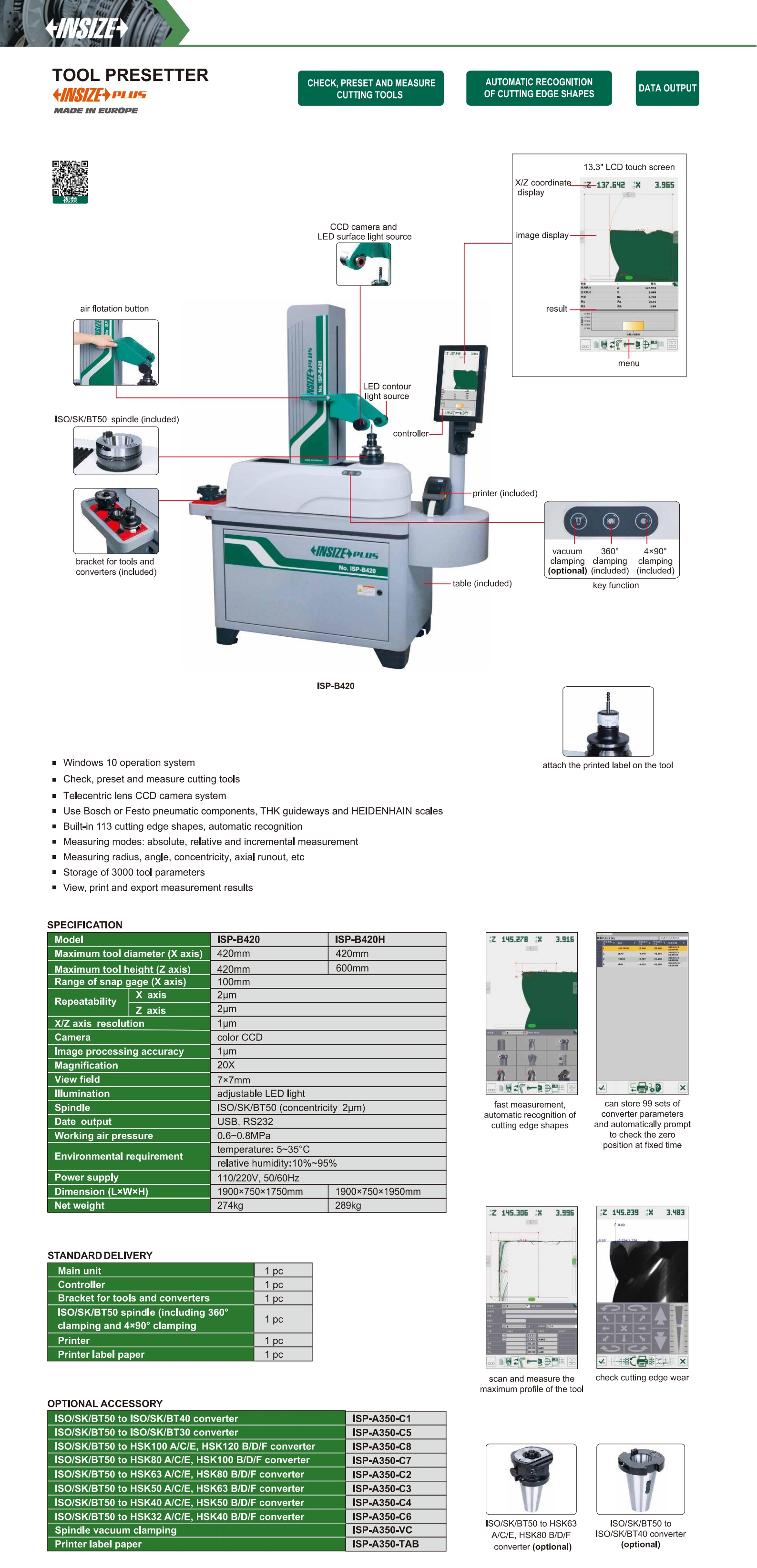

View the complete
