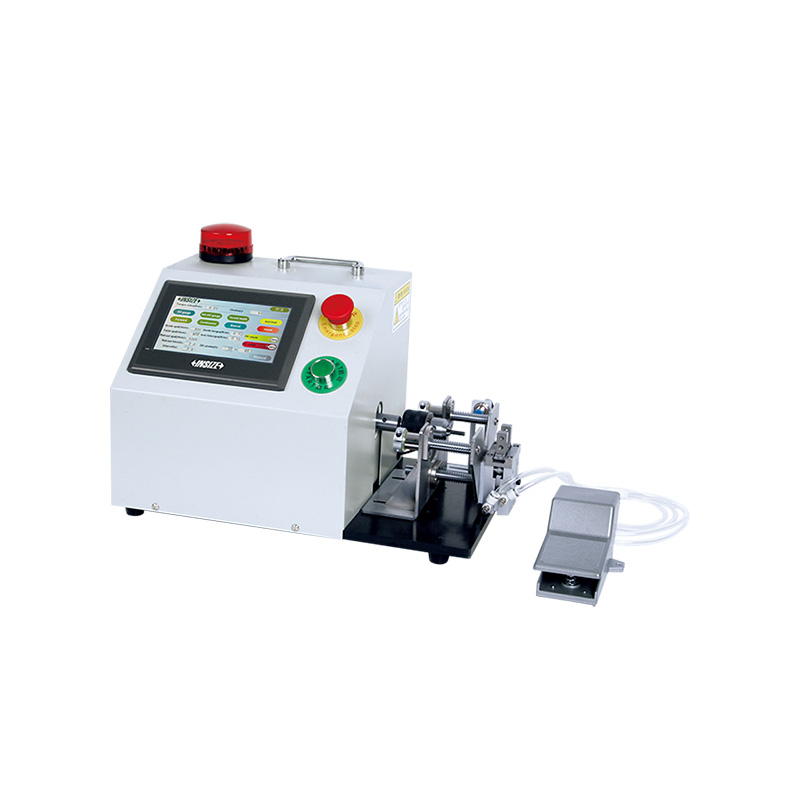

Automatic Thread Inspection Machine
Code: TCM
For inspection of GO, NO-GO and depth of threads
Can be for repair of thread defects
Real-time display of torque, circles, OK and NG counts
If NG thread is detected, audible and visual alarm are activated and the motor is automatically reversed to exit the thread gauge
Different thread gauges and workpiece fixtures can be replaced
For different length of thread by adjusting the induction switch
Thread gauges with DLC coating, excellent wear resistance
Optional accessory: thread plug gauges, thread ring gauges thread gauge fixtures, custom-made workpiece fixtures, foot switch (code TCM-01)
| Code | Range | Torque range |
|---|---|---|
| TCM | thread: M1~M30 | guide torque: 0~1.27N.m, max. torque: 0~1.27N.m |

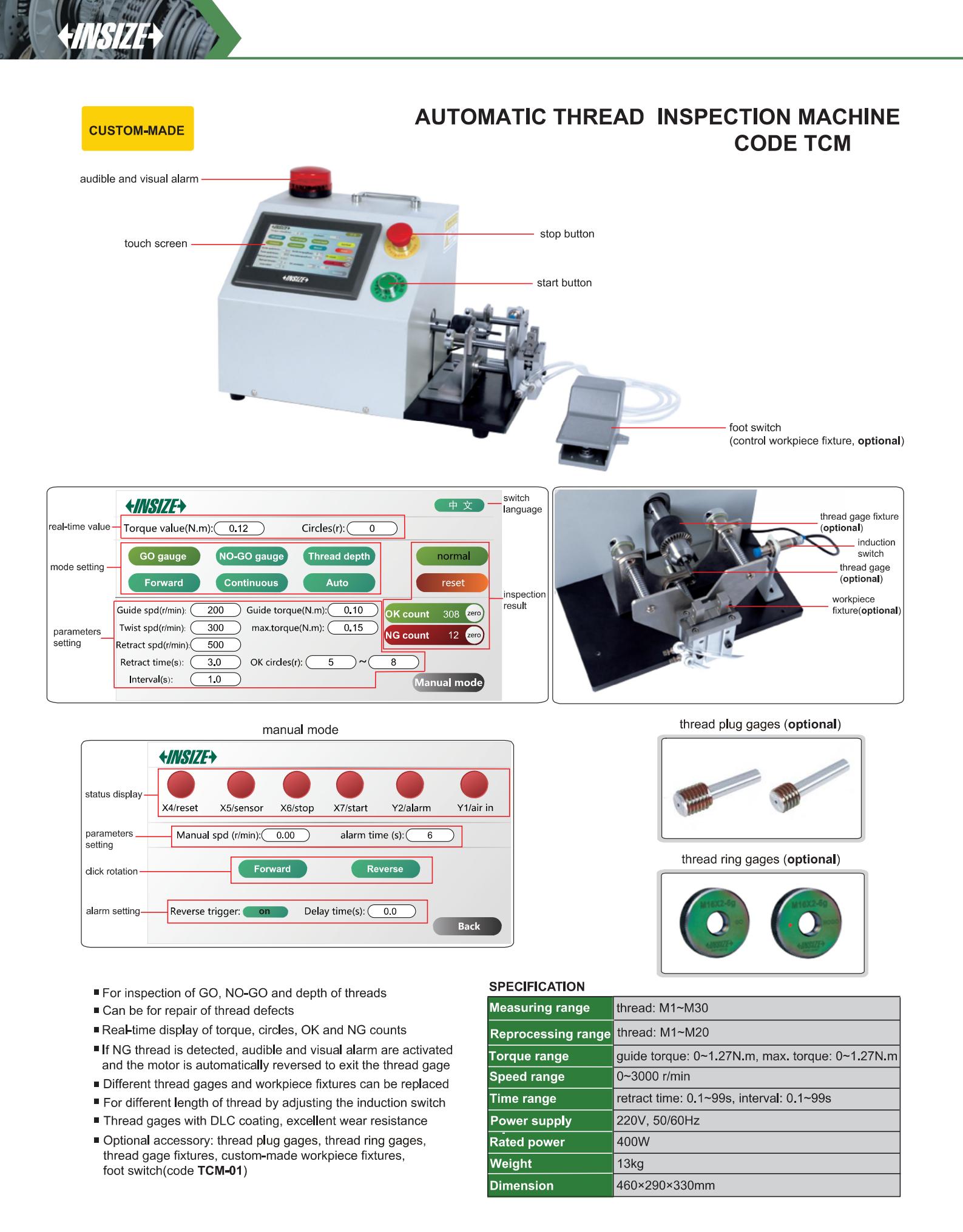

View the complete
product specifications
FAQ
Why Choose the TCM?
• Automatic NG handling
When an NG thread is detected, an audible and visual alarm is activated, and the motor automatically reverses to exit the thread gauge.
• Compatible with different specifications
Different thread gauges and workpiece fixtures can be replaced to accommodate different inspection requirements.
• Wear-resistant DLC-coated thread gauges
Thread gauges with DLC coating are available to provide excellent wear resistance.
• Reduced inspection time
Automatic inspection and NG handling can reduce the time required for thread inspection by up to 70%.
