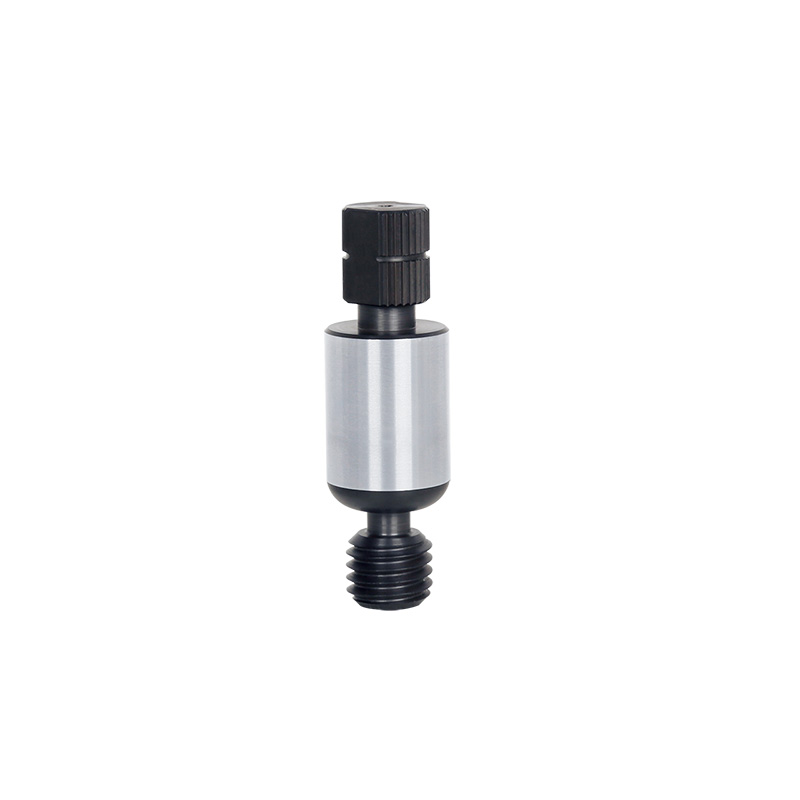

Threaded Hole Location Gauges
Code: 4676
Only for the workpieces that the chamfer is concentric with the screw part
| Code | Size (mm) |
|---|---|
| 4676-3 | M3×0.5 |
| 4676-4 | M4×0.7 |
| 4676-5 | M5×0.8 |
| 4676-6 | M6×1.0 |
| 4676-8 | M8×1.25 |
| 4676-10 | M10×1.5 |
| 4676-12 | M12×1.75 |

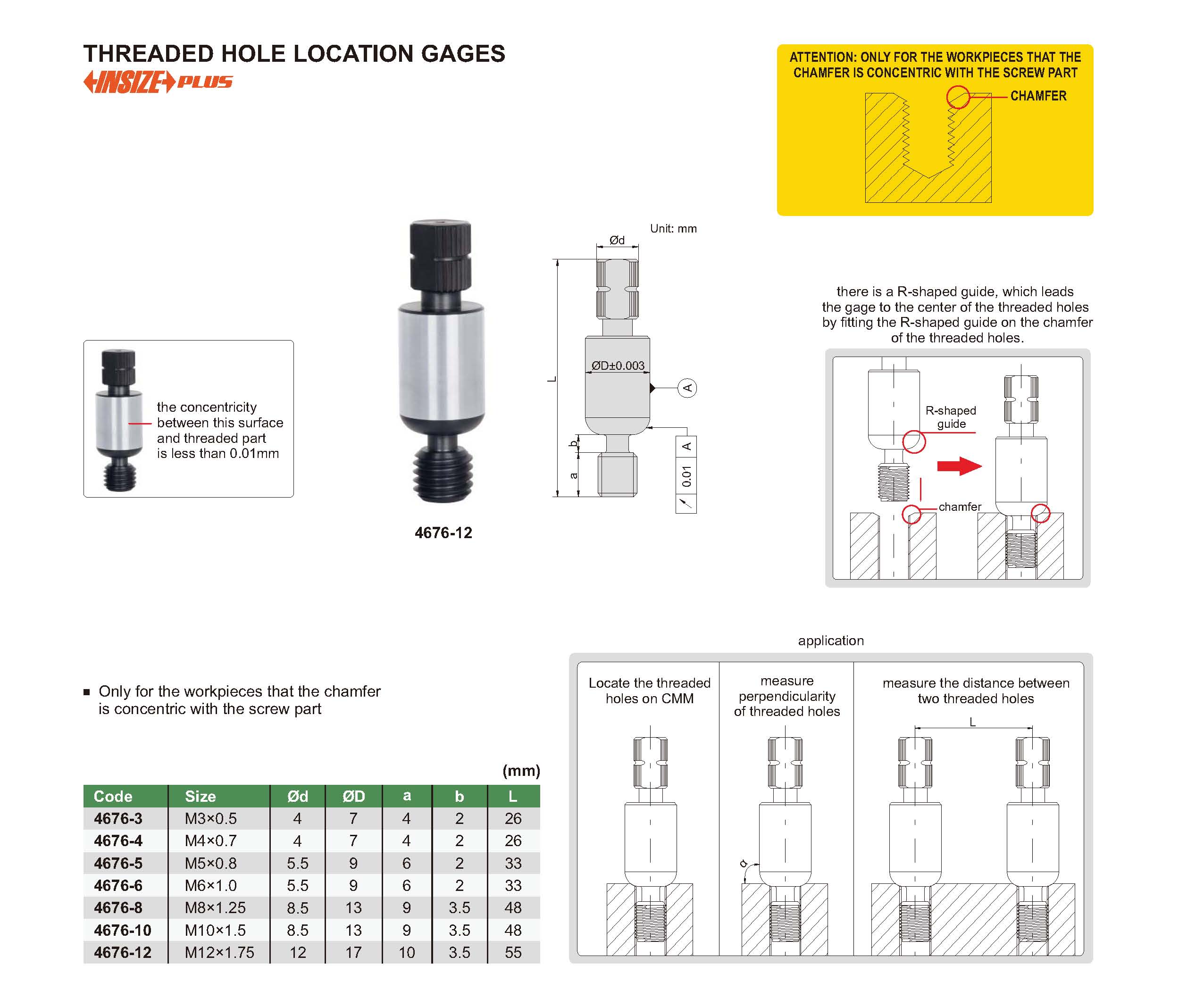

View the complete
