Home / Dimensional Metrology / Measuring Tools / Standards And Gauge Blocks / Thread Function Gauge

Specification

PDF Download

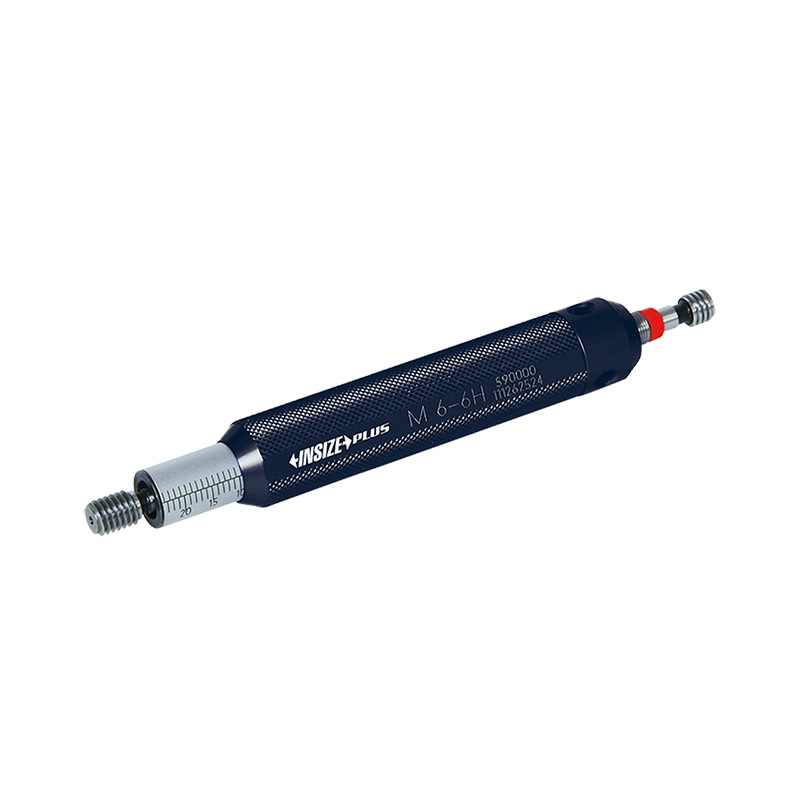

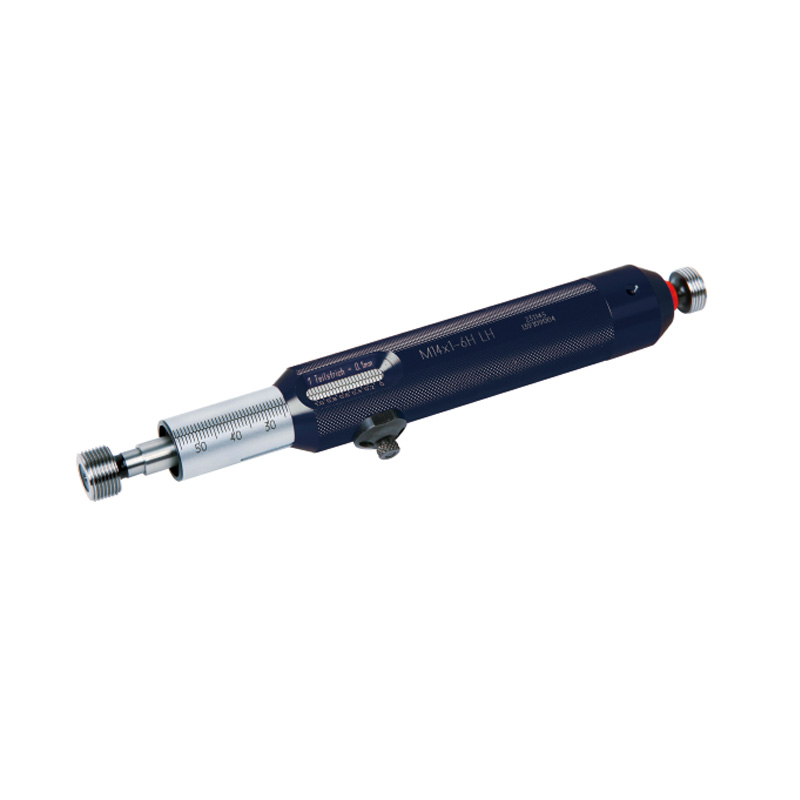

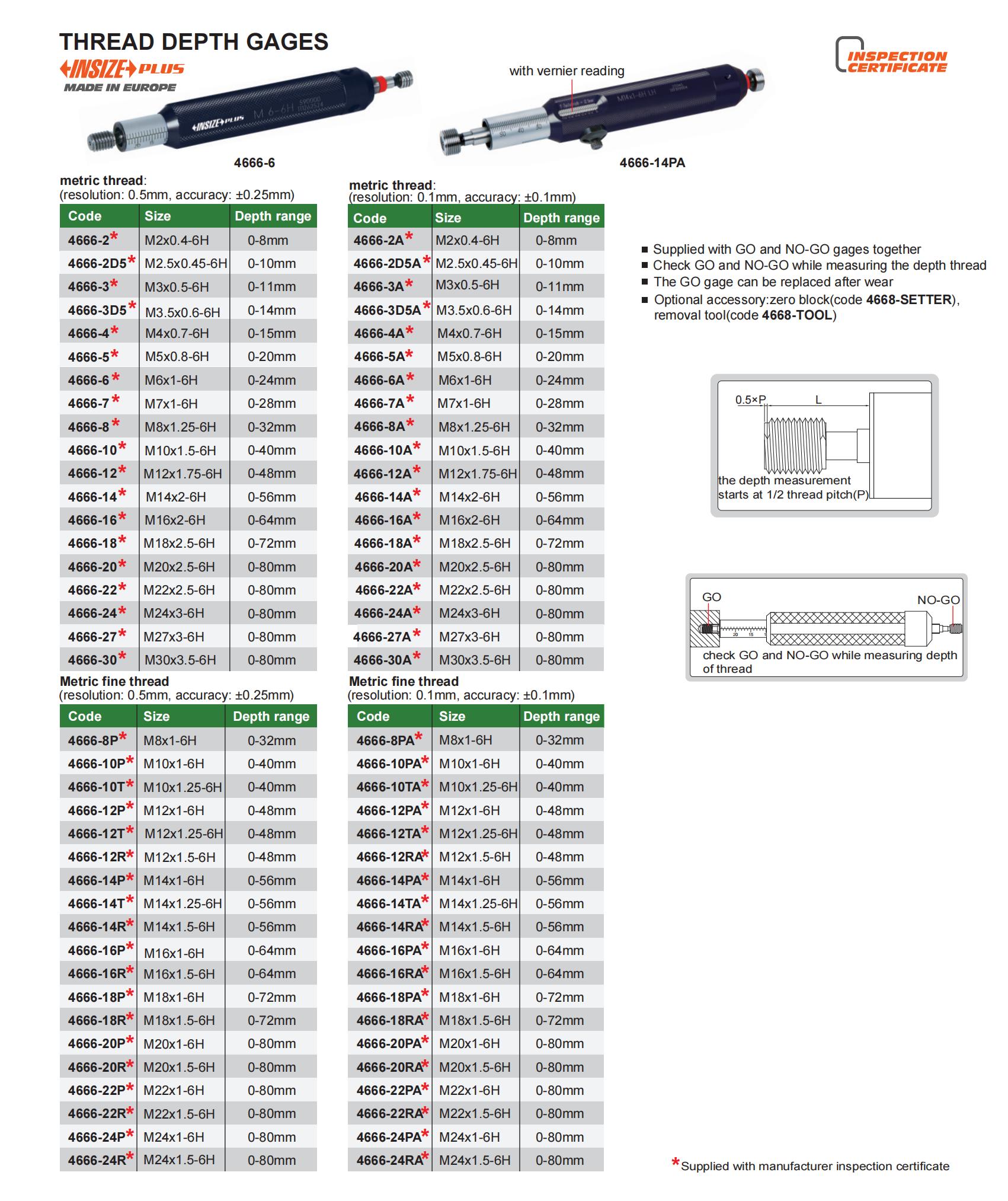

Code Accuracy Resolution Depth range Size (mm)
4666-2 ±0.25mm 0.5mm 0-8mm M2x0.4-6H mm
4666-2D5 ±0.25mm 0.5mm 0-10mm M2.5x0.45-6H
4666-3 ±0.25mm 0.5mm 0-11mm M3x0.5-6H
4666-3D5 ±0.25mm 0.5mm 0-14mm M3.5x0.6-6H
4666-4 ±0.25mm 0.5mm 0-15mm M4x0.7-6H
4666-5 ±0.25mm 0.5mm 0-20mm M5x0.8-6H
4666-6 ±0.25mm 0.5mm 0-24mm M6x1-6H
4666-7 ±0.25mm 0.5mm 0-28mm M7x1-6H
4666-8 ±0.25mm 0.5mm 0-32mm M8x1.25-6H
4666-10 ±0.25mm 0.5mm 0-40mm M10x1.5-6H
4666-12 ±0.25mm 0.5mm 0-48mm M12x1.75-6H
4666-14 ±0.25mm 0.5mm 0-56mm M14x2-6H
4666-16 ±0.25mm 0.5mm 0-64mm M16x2-6H
4666-18 ±0.25mm 0.5mm 0-72mm M18x2.5-6H
4666-20 ±0.25mm 0.5mm 0-80mm M20x2.5-6H
4666-22 ±0.25mm 0.5mm 0-80mm M22x2.5-6H
4666-24 ±0.25mm 0.5mm 0-80mm M24x3-6H
4666-27 ±0.25mm 0.5mm 0-80mm M27x3-6H
4666-30 ±0.25mm 0.5mm 0-80mm M30x3.5-6H
4666-2A ±0.1mm 0.1mm 0-8mm M2x0.4-6H
4666-2D5A ±0.1mm 0.1mm 0-10mm M2.5x0.45-6H
4666-3A ±0.1mm 0.1mm 0-11mm M3x0.5-6H
4666-3D5A ±0.1mm 0.1mm 0-14mm M3.5x0.6-6H
4666-4A ±0.1mm 0.1mm 0-15mm M4x0.7-6H
4666-5A ±0.1mm 0.1mm 0-20mm M5x0.8-6H
4666-6A ±0.1mm 0.1mm 0-24mm M6x1-6H
4666-7A ±0.1mm 0.1mm 0-28mm M7x1-6H
4666-8A ±0.1mm 0.1mm 0-32mm M8x1.25-6H
4666-10A ±0.1mm 0.1mm 0-40mm M10x1.5-6H
4666-12A ±0.1mm 0.1mm 0-48mm M12x1.75-6H
4666-14A ±0.1mm 0.1mm 0-56mm M14x2-6H
4666-16A ±0.1mm 0.1mm 0-64mm M16x2-6H
4666-18A ±0.1mm 0.1mm 0-72mm M18x2.5-6H
4666-20A ±0.1mm 0.1mm 0-80mm M20x2.5-6H
4666-22A ±0.1mm 0.1mm 0-80mm M22x2.5-6H
4666-24A ±0.1mm 0.1mm 0-80mm M24x3-6H
4666-27A ±0.1mm 0.1mm 0-80mm M27x3-6H
4666-30A ±0.1mm 0.1mm 0-80mm M30x3.5-6H
4666-8P ±0.25mm 0.5mm 0-32mm M8x1-6H
4666-10P ±0.25mm 0.5mm 0-40mm M10x1-6H
4666-10T ±0.25mm 0.5mm 0-40mm M10x1.25-6H
4666-12P ±0.25mm 0.5mm 0-48mm M12x1-6H
4666-12T ±0.25mm 0.5mm 0-48mm M12x1.25-6H
4666-12R ±0.25mm 0.5mm 0-48mm M12x1.5-6H
4666-14P ±0.25mm 0.5mm 0-56mm M14x1-6H
4666-14T ±0.25mm 0.5mm 0-56mm M14x1.25-6H
4666-14R ±0.25mm 0.5mm 0-56mm M14x1.5-6H
4666-16P ±0.25mm 0.5mm 0-64mm M16x1-6H
4666-16R ±0.25mm 0.5mm 0-64mm M16x1.5-6H
4666-18P ±0.25mm 0.5mm 0-72mm M18x1-6H
4666-18R ±0.25mm 0.5mm 0-72mm M18x1.5-6H
4666-20P ±0.25mm 0.5mm 0-80mm M20x1-6H
4666-20R ±0.25mm 0.5mm 0-80mm M20x1.5-6H
4666-22P ±0.25mm 0.5mm 0-80mm M22x1-6H
4666-22R ±0.25mm 0.5mm 0-80mm M22x1.5-6H
4666-24P ±0.25mm 0.5mm 0-80mm M24x1-6H
4666-24R ±0.25mm 0.5mm 0-80mm M24x1.5-6H
4666-8PA ±0.1mm 0.1mm 0-32mm M8x1-6H
4666-10PA ±0.1mm 0.1mm 0-40mm M10x1-6H
4666-10TA ±0.1mm 0.1mm 0-40mm M10x1.25-6H
4666-12PA ±0.1mm 0.1mm 0-48mm M12x1-6H
4666-12TA ±0.1mm 0.1mm 0-48mm M12x1.25-6H
4666-12RA ±0.1mm 0.1mm 0-48mm M12x1.5-6H
4666-14PA ±0.1mm 0.1mm 0-56mm M14x1-6H
4666-14TA ±0.1mm 0.1mm 0-56mm M14x1.25-6H
4666-14RA ±0.1mm 0.1mm 0-56mm M14x1.5-6H
4666-16PA ±0.1mm 0.1mm 0-64mm M16x1-6H
4666-16RA ±0.1mm 0.1mm 0-64mm M16x1.5-6H
4666-18PA ±0.1mm 0.1mm 0-72mm M18x1-6H
4666-18RA ±0.1mm 0.1mm 0-72mm M18x1.5-6H
4666-20PA ±0.1mm 0.1mm 0-80mm M20x1-6H
4666-20RA ±0.1mm 0.1mm 0-80mm M20x1.5-6H
4666-22PA ±0.1mm 0.1mm 0-80mm M22x1-6H
4666-22RA ±0.1mm 0.1mm 0-80mm M22x1.5-6H
4666-24PA ±0.1mm 0.1mm 0-80mm M24x1-6H
4666-24RA ±0.1mm 0.1mm 0-80mm M24x1.5-6H

View the complete
product specifications

PDF Download
