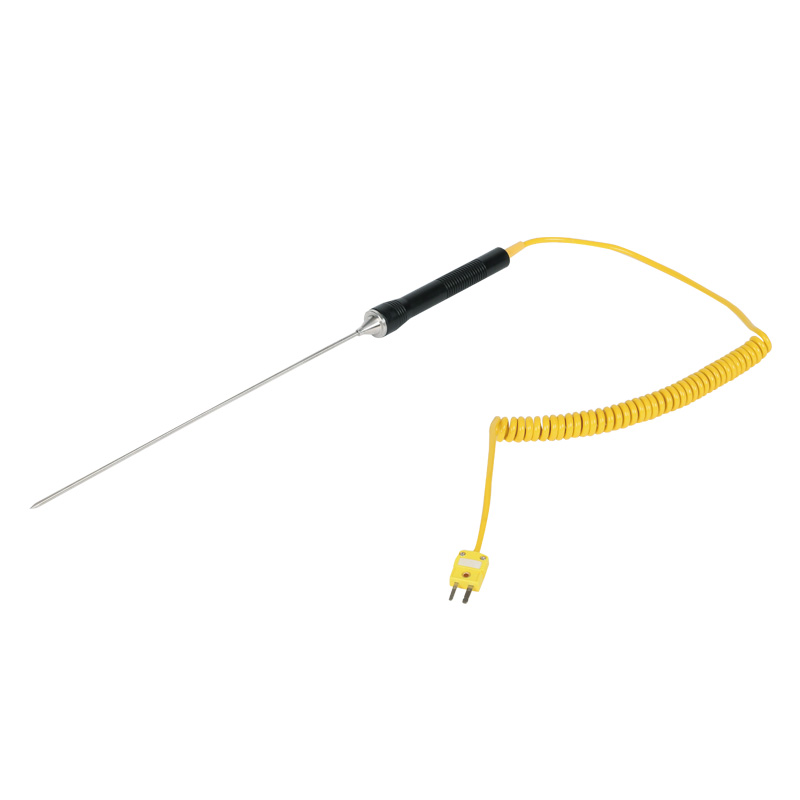

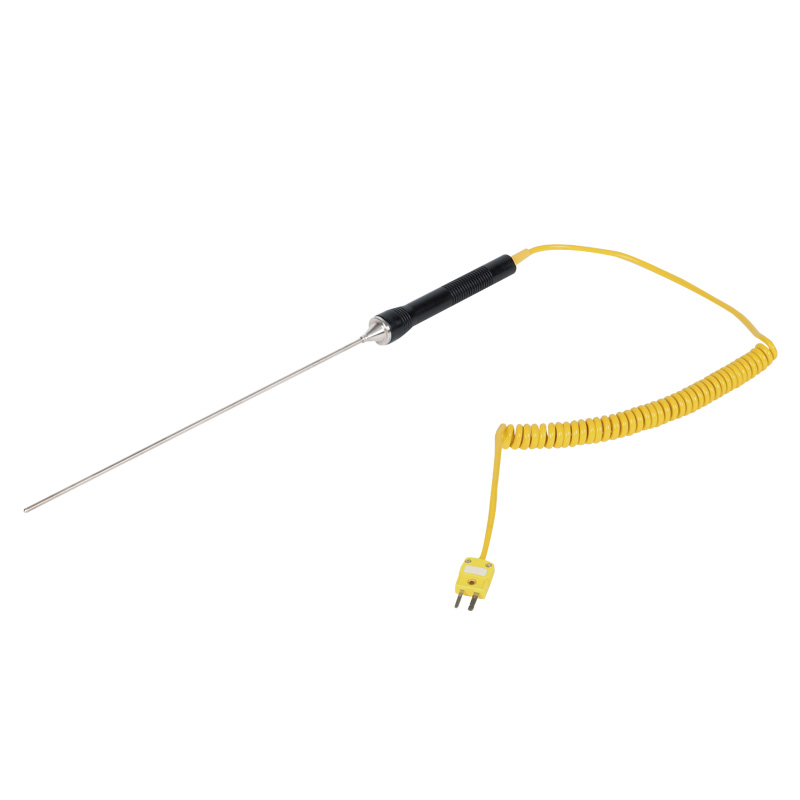

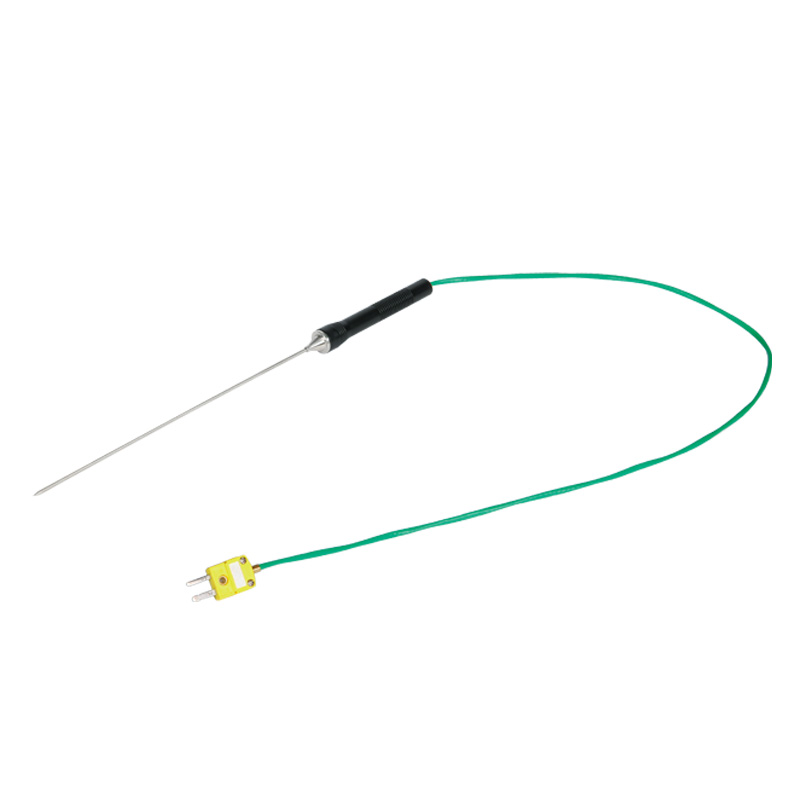

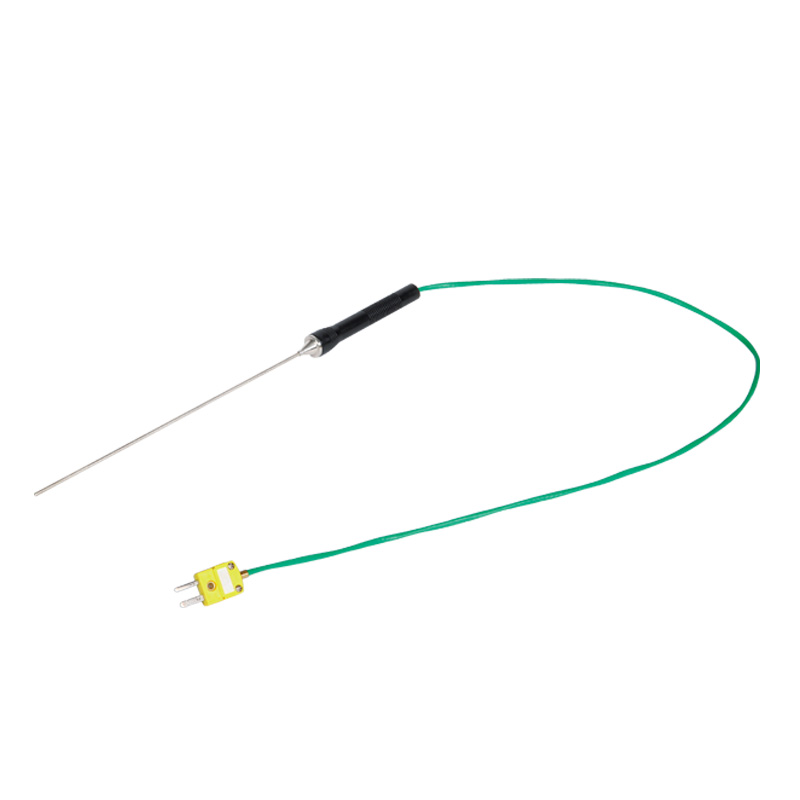

K-Type Handheld Armored Thermocouples
Code: 0709-HA Series
Temperature sensor is made of 316L stainless steel, resistant to high temperature and corrosion
Bakelite handle has good insulation, high mechanical strength and is not easy to deform
Integrated plastic plug, insulated, flarne-retardant, corrcsion-resistant
PUP spring wire has good elasticity and can be stretched
Sensor length, diameter, temperature range can be customized

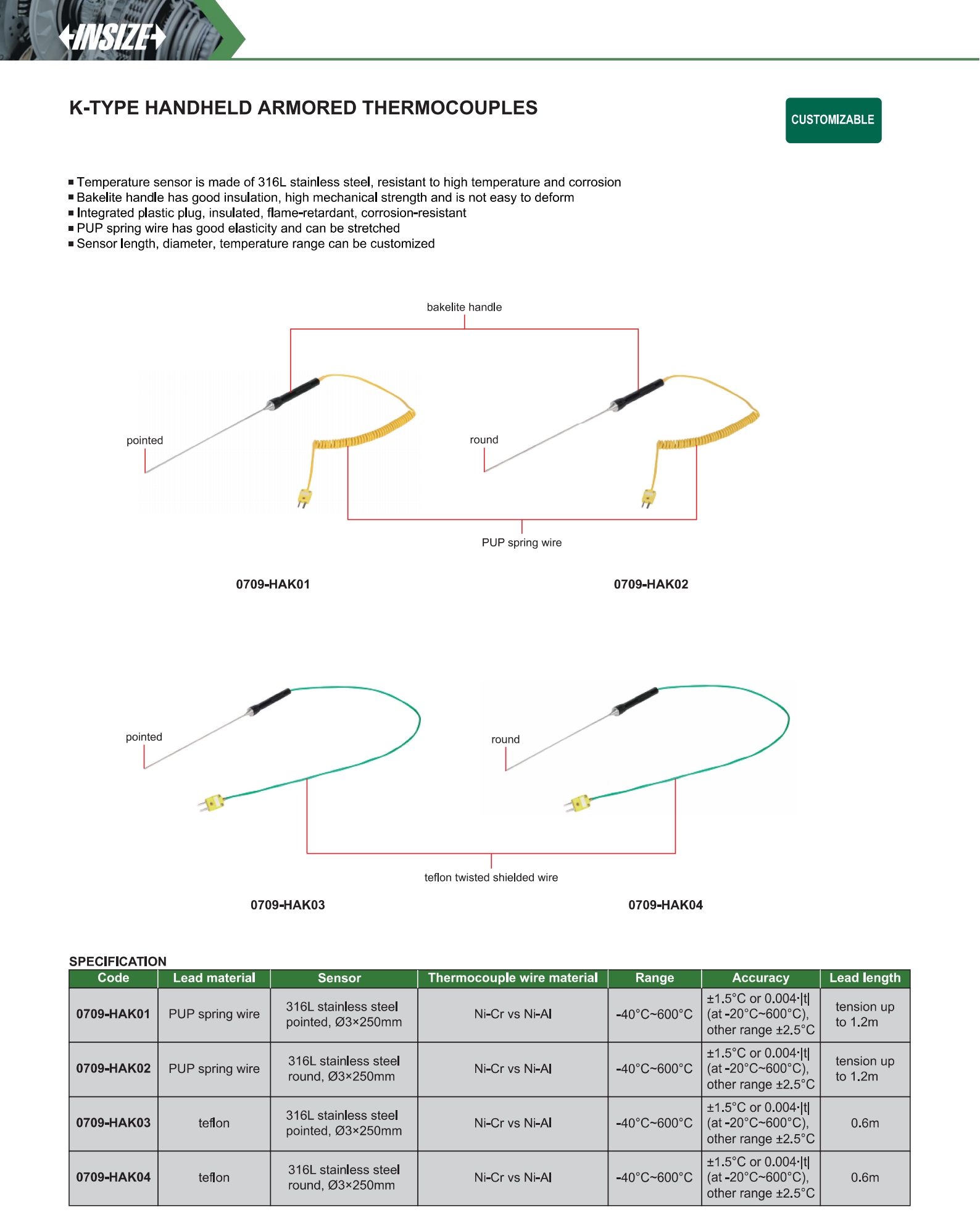

| Code | Type | Sensor type | Range | Accuracy | Length | Material |
|---|---|---|---|---|---|---|
| 0709-HAK01 | K | 316L stainless steel pointed, Ø3×250mm | -40°C~600°C | ±1.1°C or .004∙|t| | lead: tension up to 1.2m | lead: PUP spring wire |
| 0709-HAK02 | K | 316L stainless steel round, Ø3×250mm | -40°C~600°C | ±1.1°C or .004∙|t| | lead: tension up to 1.2m | lead: PUP spring wire |
| 0709-HAK03 | K | 316L stainless steel pointed, Ø3×250mm | -40°C-600°C | ±1.1°C or .004∙|t| | lead: 0.6m | lead: teflon |
| 0709-HAK04 | K | 316L stainless steel round, Ø3×250mm | -40°C~600°C | ±1.1°C or .004∙|t| | lead: 0.6m | lead: teflon |
