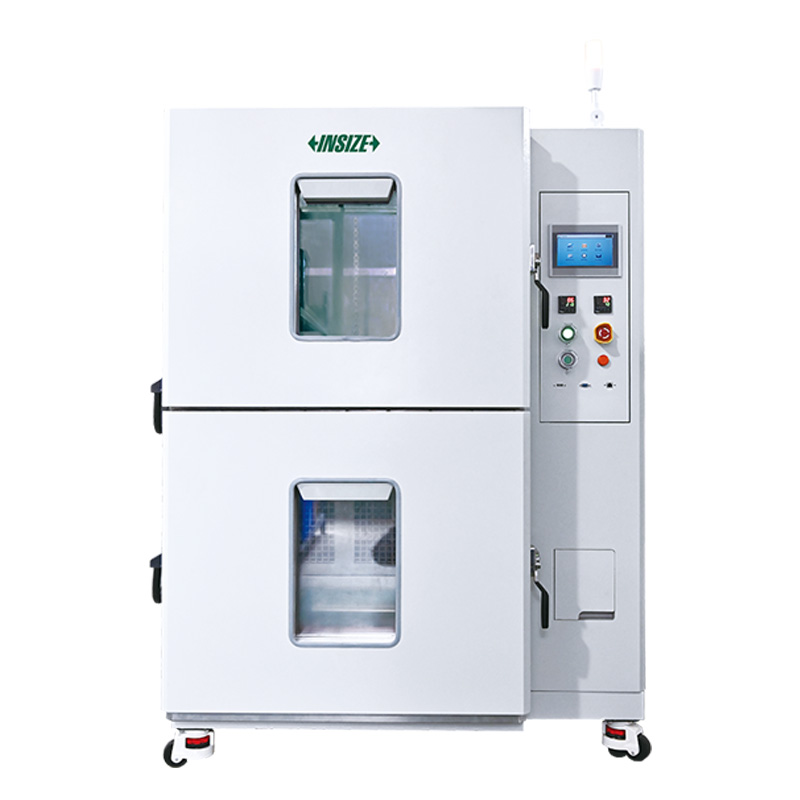

Thermal Shock Test Chambers (Two-Zone Type)
Code: TST-A series
Suitable for automotive industry, electronic industry, material, aerospace, communication, etc.
Two-zone structure, can be quickly switched between high and low temperature zones
Water-cooled system ensures superior cooling performance, adaptable to complex environments
Multiple safety protections, such as leakage protection, overload protection, over-temperature protection, etc.
| Code | Chamber dimension | Temperature range |
|---|---|---|
| TST-A201 | 400×300×350mm | low temperature: -40°C~0°C,high temperature: 60°C~150°C |
| TST-A202 | 500×400×400mm | low temperature: -40°C~0°C,high temperature: 60°C~150°C |
| TST-A203 | 650×500×460mm | low temperature: -40°C~0°C, high temperature: 60°C~150°C |
| TST-A204 | 650×670×460mm | low temperature: -40°C~0°C, high temperature: 60°C~150°C |
| TST-A205 | 800×670×560mm | low temperature: -40°C~0°C, high temperature: 60°C~150°C |

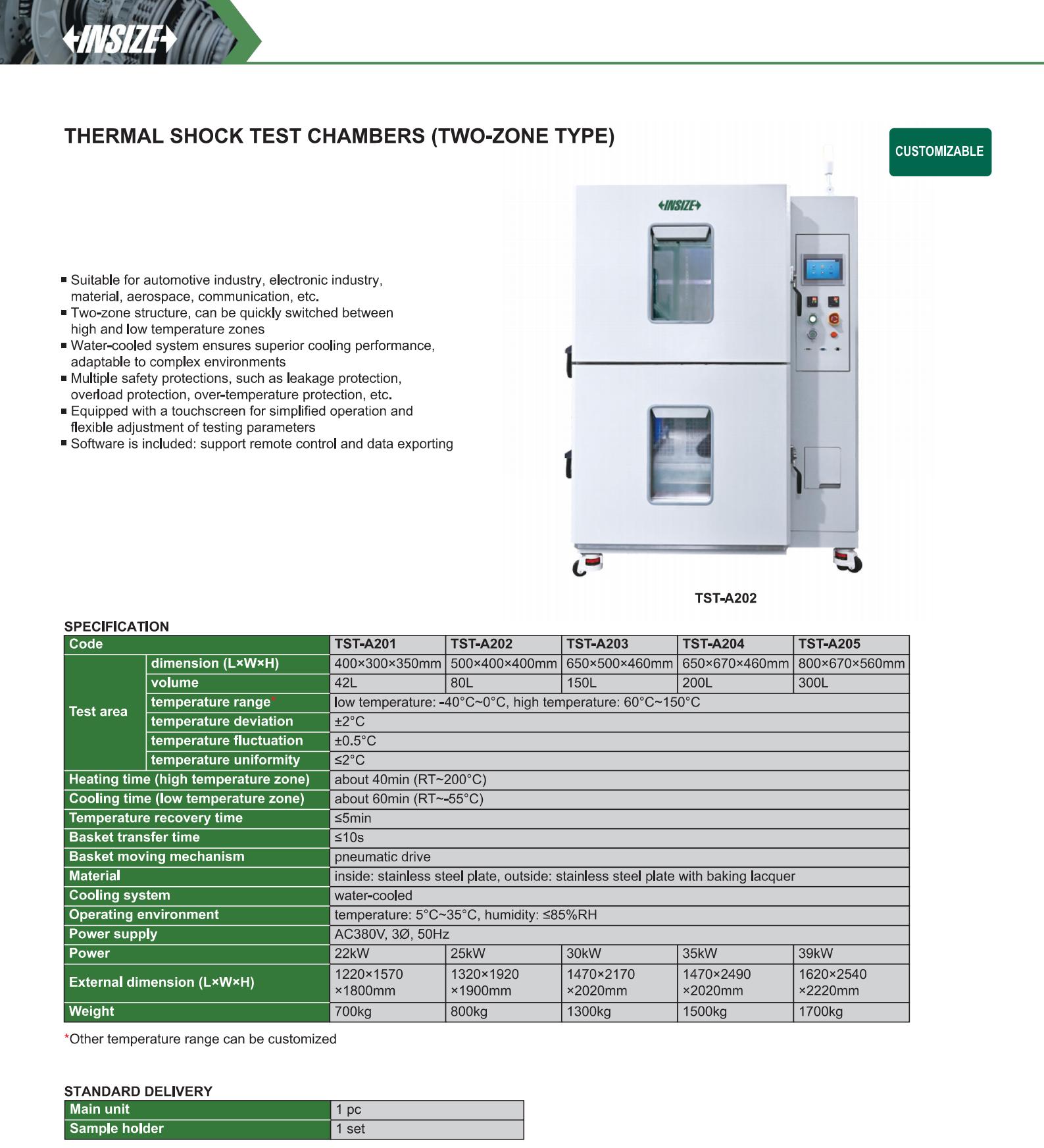

View the complete
product specifications
