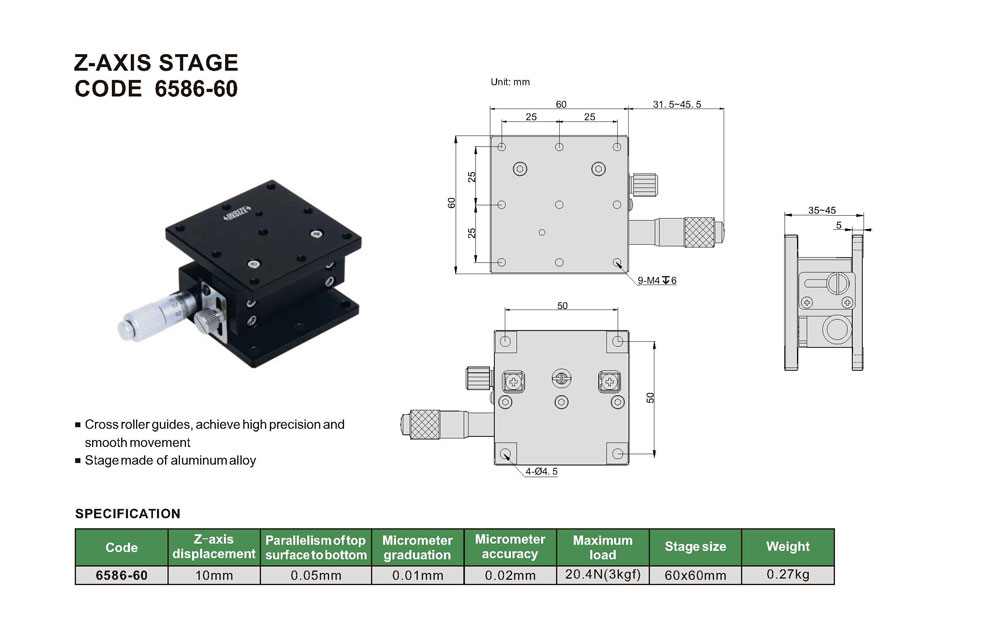

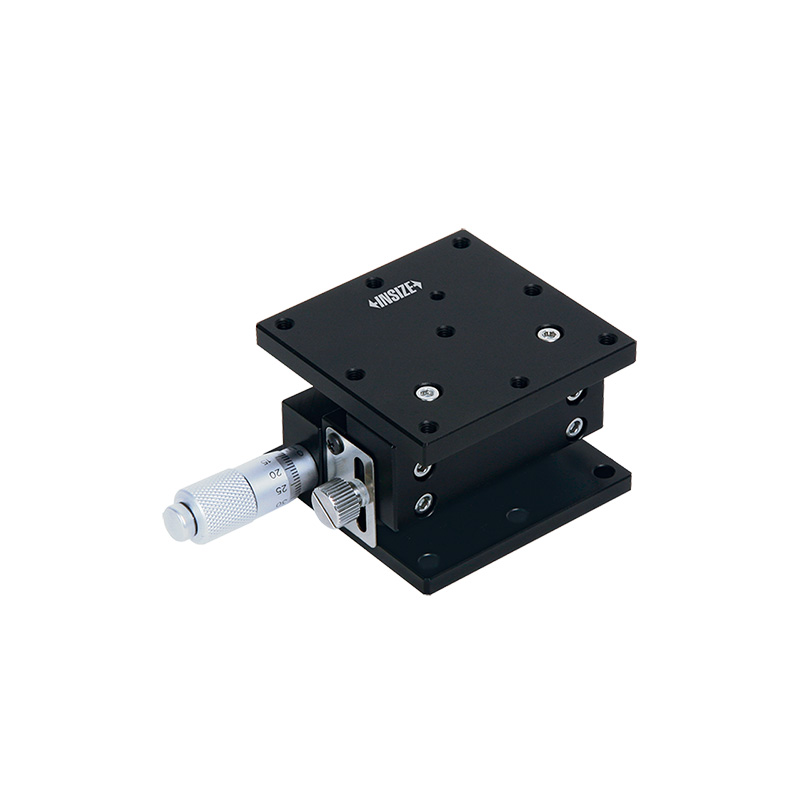

Z-axis Stage
Code: 6586-60
Cross roller guides, achieve high precision and smooth movement
Stage made of aluminum alloy
| Code | Parallelism | Z-axis displacement | Micrometer graduation | Micrometer accuracy | Stage size |
|---|---|---|---|---|---|
| 6586-60 | 0.05mm | 10mm | 0.01mm | 0.02mm | 60x60mm |
