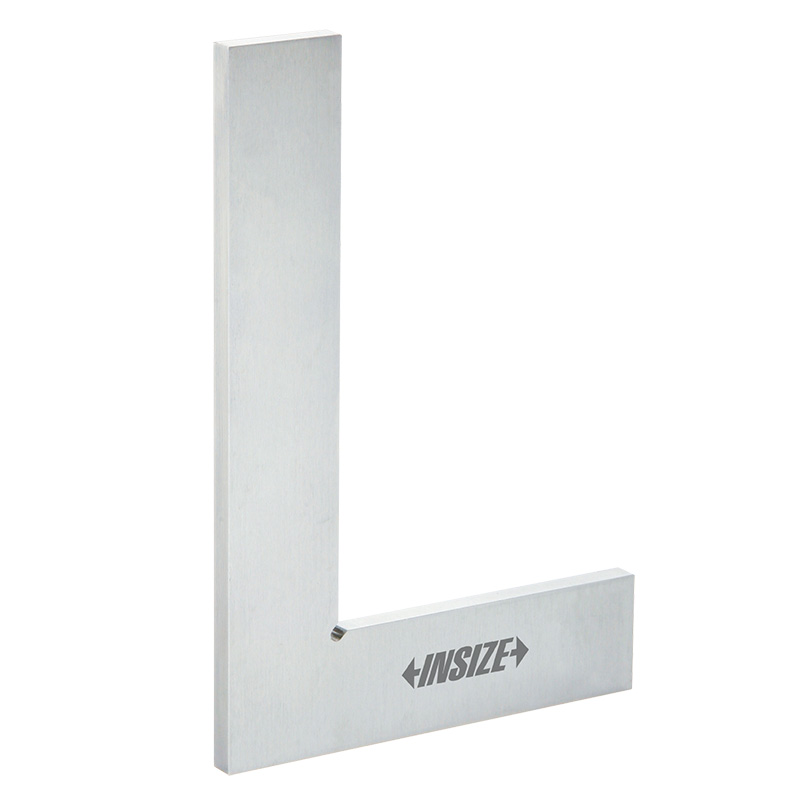

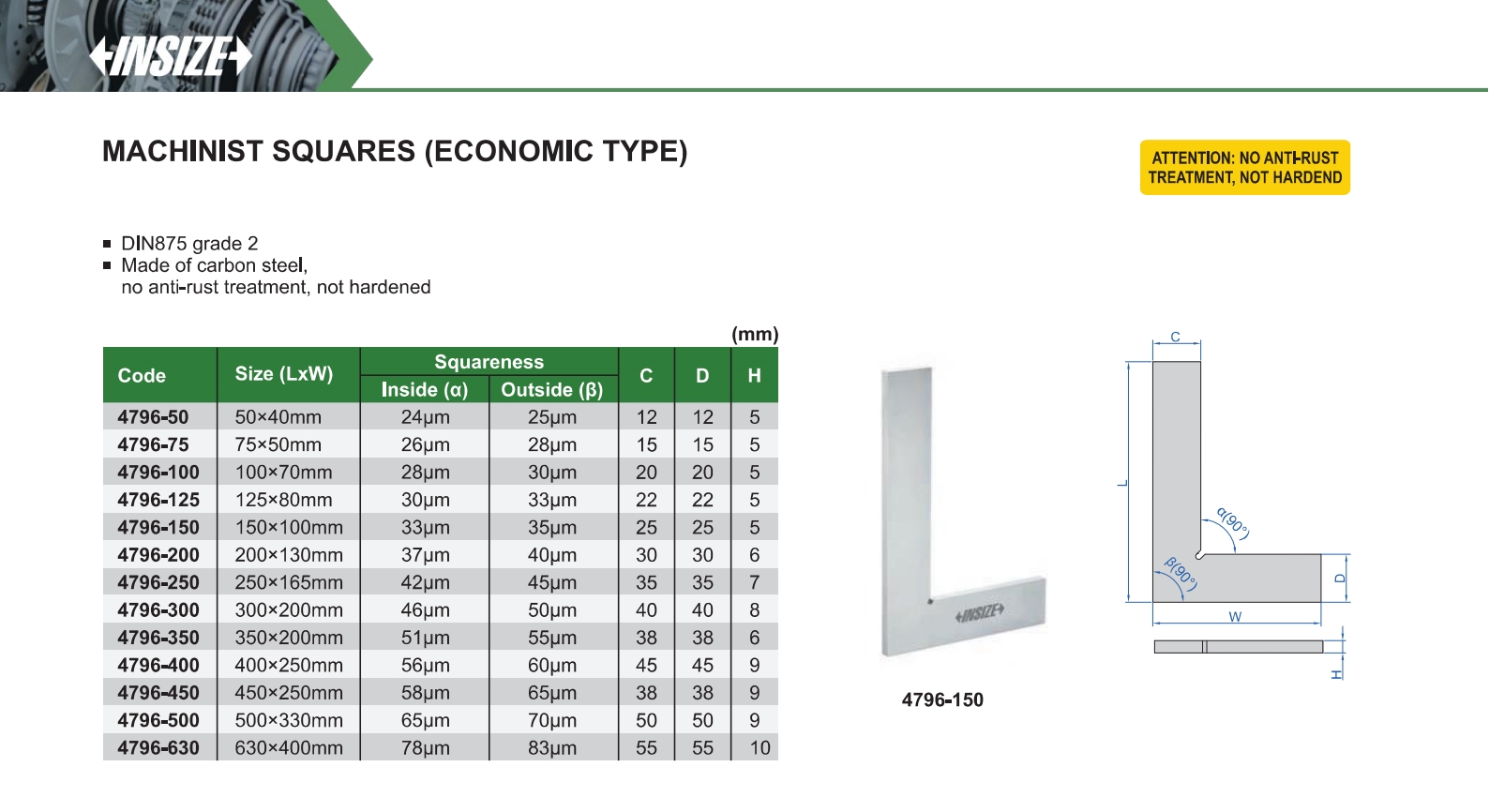

Machinist Squares (Economic Type)
Code: 4796
DIN875 grade 2
Made of carbon steel, no anti-rust treatment, not hardened
| Code | Size | Squareness Inside (α) | Squareness Outside (β) |
|---|---|---|---|
| 4796-50 | 50×40mm | 24μm | 25μm |
| 4796-75 | 75×50mm | 26μm | 28μm |
| 4796-100 | 100×70mm | 28μm | 30μm |
| 4796-125 | 125×80mm | 30μm | 33μm |
| 4796-150 | 150×100mm | 33μm | 35μm |
| 4796-200 | 200×130mm | 37μm | 40μm |
| 4796-250 | 250×165mm | 42μm | 45μm |
| 4796-300 | 300×200mm | 46μm | 50μm |
| 4796-350 | 350×200mm | 51μm | 55μm |
| 4796-400 | 400×250mm | 56μm | 60μm |
| 4796-450 | 450×250mm | 58μm | 65μm |
| 4796-500 | 500×330mm | 65μm | 70μm |
| 4796-630 | 630×400mm | 78μm | 83μm |
