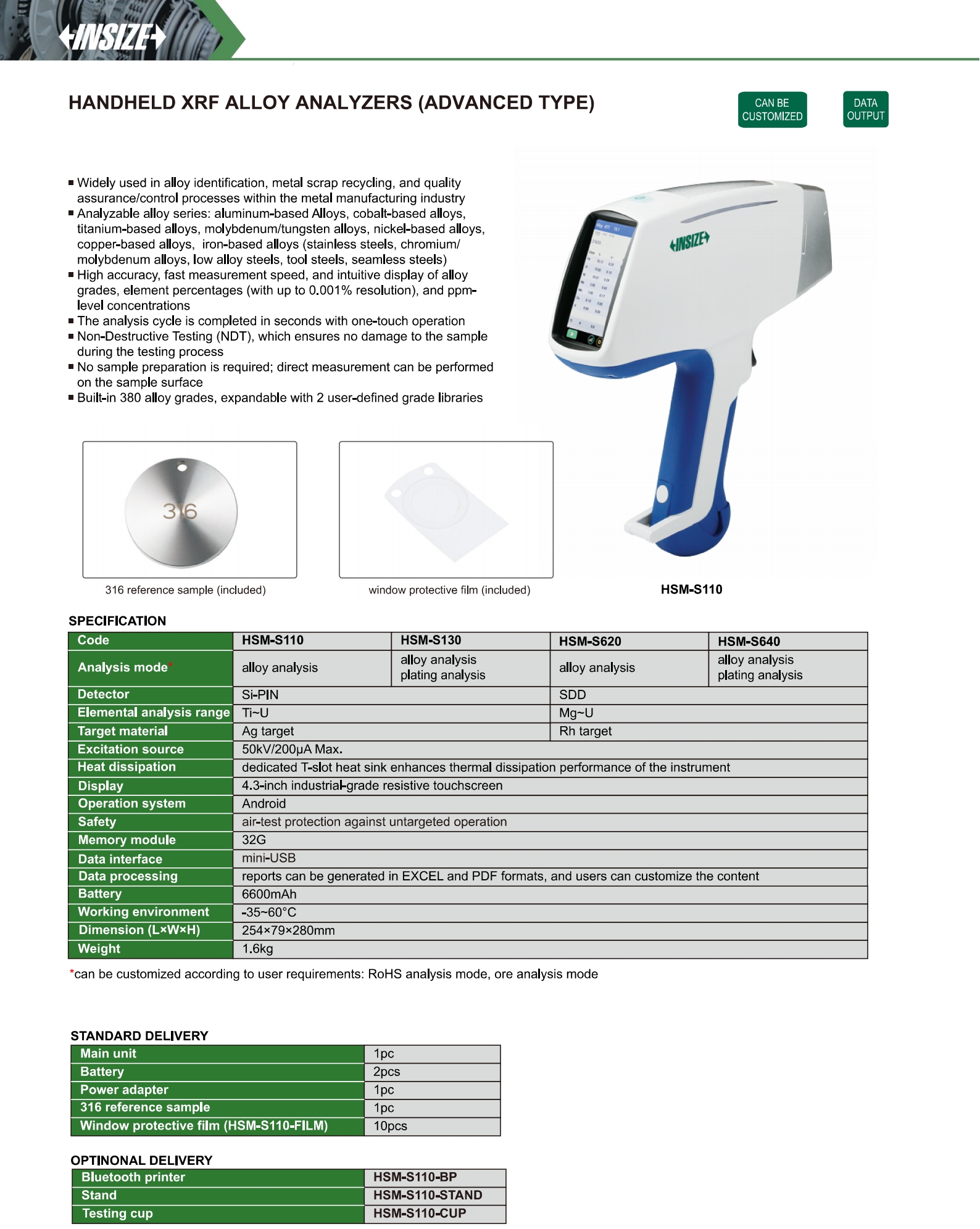

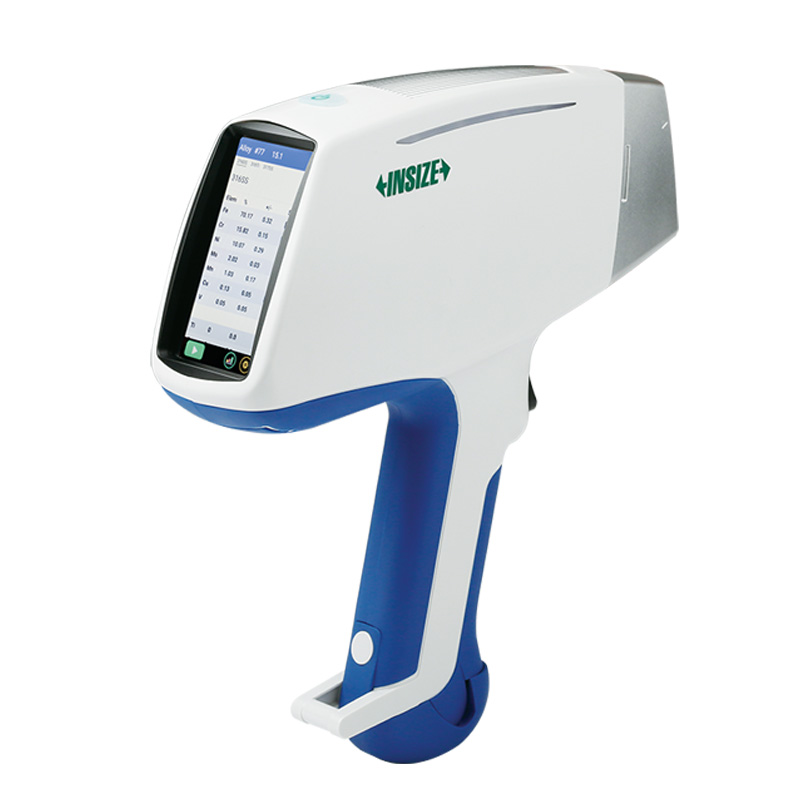

Handheld XRF Alloy Analyzers (Advanced Type)
Code: HSM-S series
Widely used in alloy identification, metal scrap recycling, and quality assurance/control processes within the metal manufacturing industry
Analyzable alloy series: aluminum-based Alloys, cobalt-based alloys, titanium-based alloys, molybdenum/tungsten alloys, nickel-based alloys, copper-based alloys, iron-based alloys (stainless steels, chromium/molybdenum alloys, low alloy steels, tool steels, seamless steels)
High accuracy, fast measurement speed, and intuitive display of alloy grades, element percentages (with up to 0.001% resolution), and ppm-level concentrations
The analysis cycle is completed in seconds with one-touch operation
Non-Destructive Testing (NDT), which ensures no damage to the sample during the testing process
No sample preparation is required; direct measurement can be performed on the sample surface
Built-in 380 alloy grades, expandable with 2 user-defined grade libraries
| Code | Detection method | Application | Type | Non destructive | Elemental analysis range |
|---|---|---|---|---|---|
| HSM-S110 | XRF | alloy analysis | handheld | yes | Ti~U |
| HSM-S130 | XRF | alloy analysis， plating analysis | handheld | yes | Ti~U |
| HSM-S150 | XRF | precious metal analysis | handheld | yes | Ti~U |
| HSM-S620 | XRF | alloy analysis | handheld | yes | Mg~U |
| HSM-S640 | XRF | alloy analysis， plating analysis | handheld | yes | Mg~U |
| HSM-S650 | XRF | precious metal analysis | handheld | yes | Mg~U |
View the complete
product specifications
