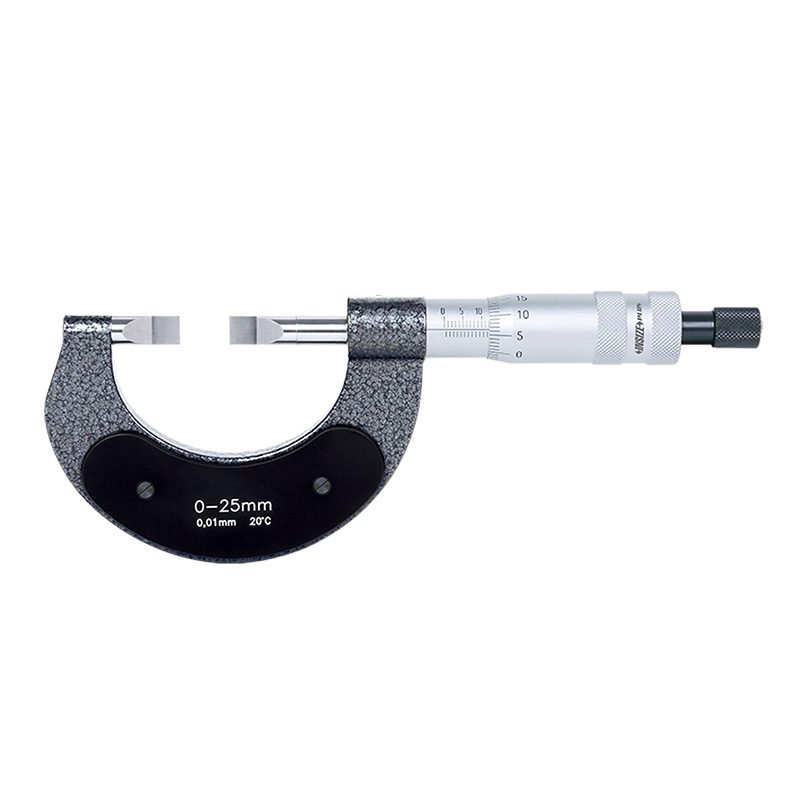

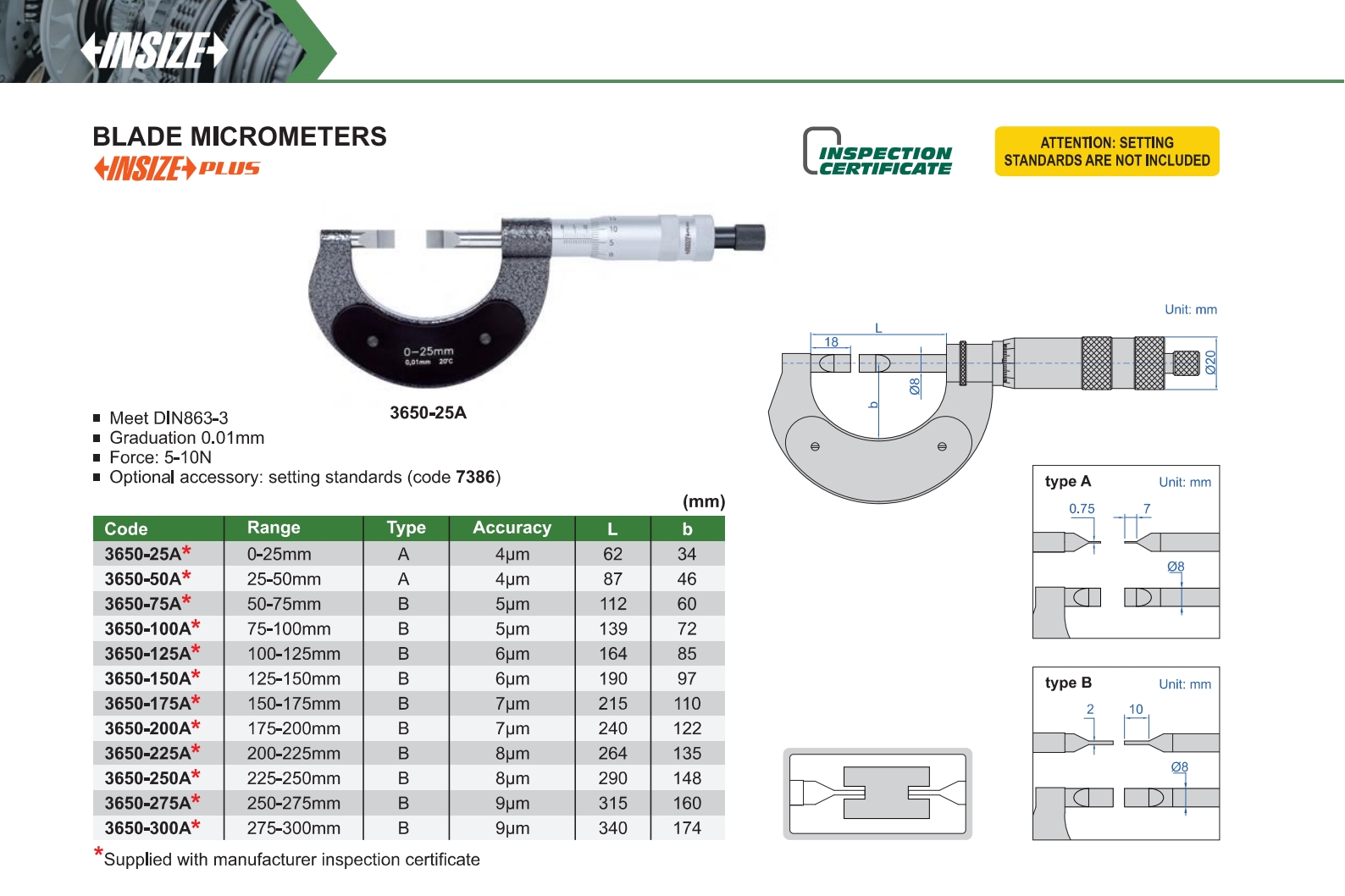

Blade Micrometers
Code: 3650
Meet DIN863-3
Force: 5-10N
Optional accessory: setting standards (code 7386)
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3650-25A | 0-25mm | 4μm | 0.01mm |
| 3650-50A | 25-50mm | 4μm | 0.01mm |
| 3650-75A | 50-75mm | 5μm | 0.01mm |
| 3650-100A | 75-100mm | 5μm | 0.01mm |
| 3650-125A | 100-125mm | 6μm | 0.01mm |
| 3650-150A | 125-150mm | 6μm | 0.01mm |
| 3650-175A | 150-175mm | 7μm | 0.01mm |
| 3650-200A | 175-200mm | 7μm | 0.01mm |
| 3650-225A | 200-225mm | 8μm | 0.01mm |
| 3650-250A | 225-250mm | 8μm | 0.01mm |
| 3650-275A | 250-275mm | 9μm | 0.01mm |
| 3650-300A | 275-300mm | 9μm | 0.01mm |
View the complete
product specifications
