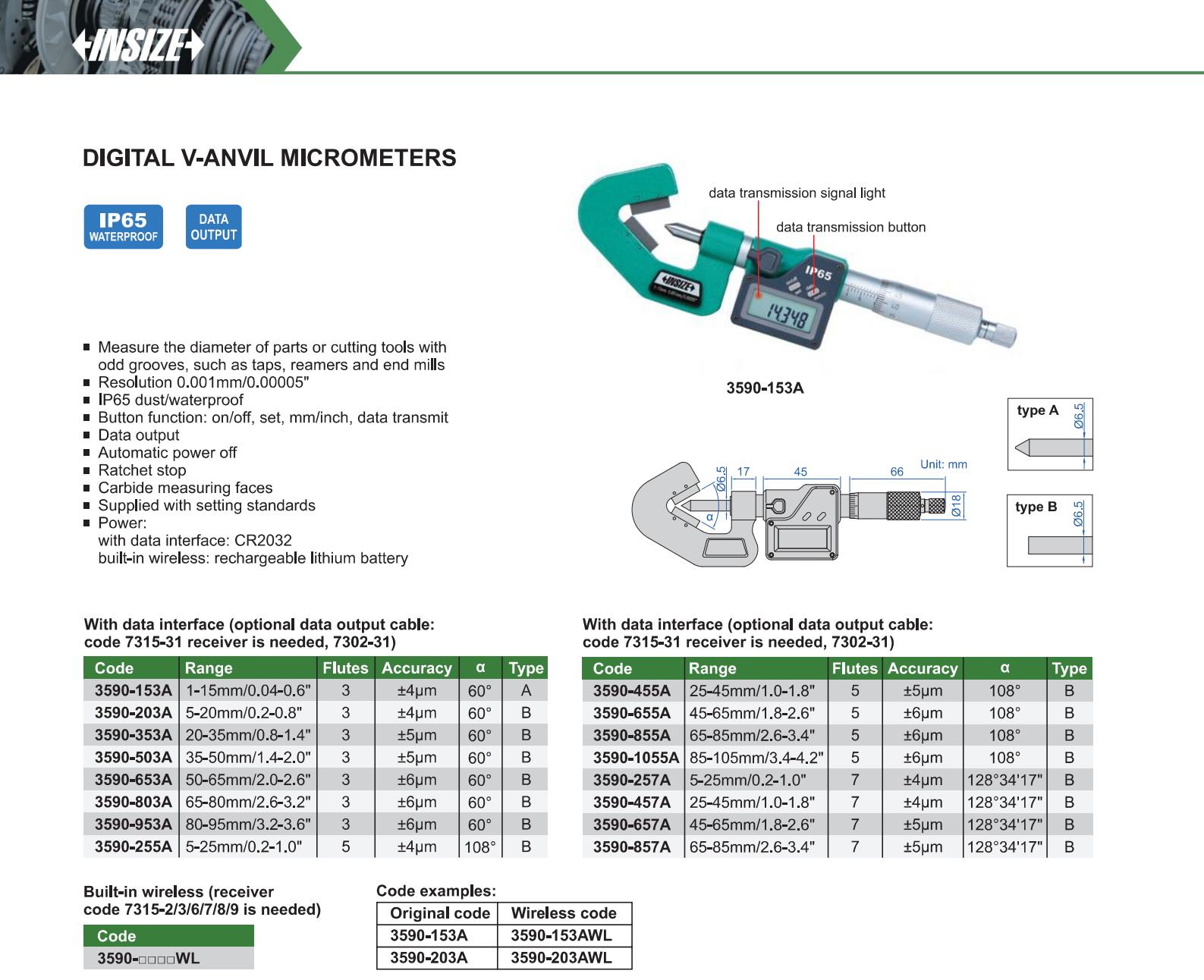

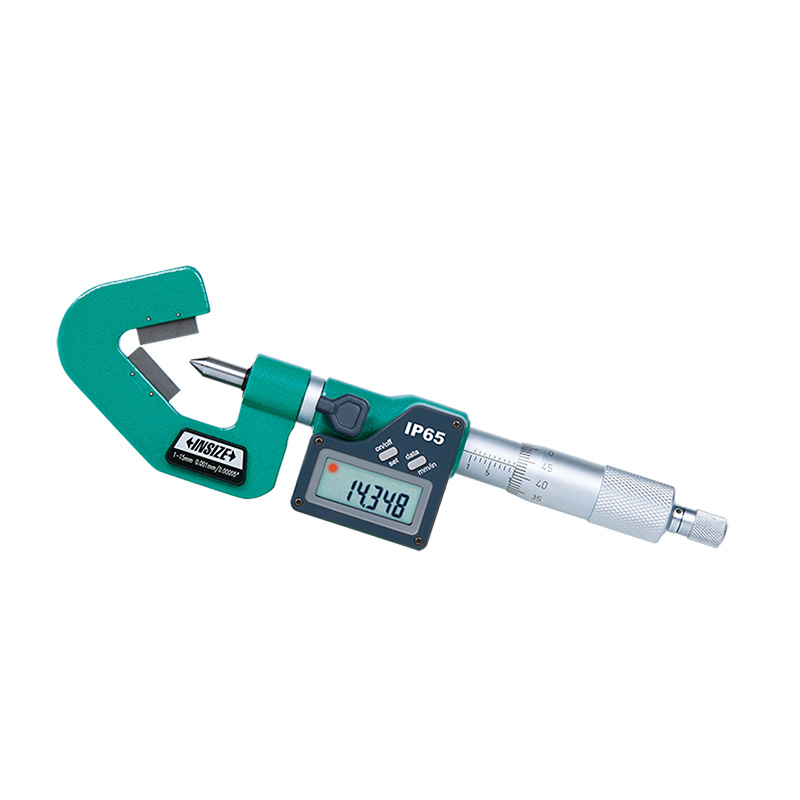

Digital V-Anvil Micrometers
Code: 3590
Measure the diameter of parts or cutting tools with odd grooves, such as taps, reamers and end mills
Button function: on/off, set, mm/inch, data transmit
Automatic power off
Ratchet stop
Carbide measuring faces
| Code | Range | Accuracy | Resolution | Data output | Flutes |
|---|---|---|---|---|---|
| 3590-153A | 1-15mm/0.04-0.6" | ±4μm | 0.001mm/0.00005" | with data interface | 3 |
| 3590-203A | 5-20mm/0.2-0.8" | ±4μm | 0.001mm/0.00005" | with data interface | 3 |
| 3590-353A | 20-35mm/0.8-1.4" | ±5μm | 0.001mm/0.00005" | with data interface | 3 |
| 3590-503A | 35-50mm/1.4-2.0" | ±5μm | 0.001mm/0.00005" | with data interface | 3 |
| 3590-653A | 50-65mm/2.0-2.6" | ±6μm | 0.001mm/0.00005" | with data interface | 3 |
| 3590-803A | 65-80mm/2.6-3.2" | ±6μm | 0.001mm/0.00005" | with data interface | 3 |
| 3590-953A | 80-95mm/3.2-3.6" | ±6μm | 0.001mm/0.00005" | with data interface | 3 |
| 3590-255A | 5-25mm/0.2-1.0" | ±4μm | 0.001mm/0.00005" | with data interface | 5 |
| 3590-455A | 25-45mm/1.0-1.8" | ±5μm | 0.001mm/0.00005" | with data interface | 5 |
| 3590-655A | 45-65mm/1.8-2.6" | ±6μm | 0.001mm/0.00005" | with data interface | 5 |
| 3590-855A | 65-85mm/2.6-3.4" | ±6μm | 0.001mm/0.00005" | with data interface | 5 |
| 3590-1055A | 85-105mm/3.4-4.2" | ±6μm | 0.001mm/0.00005" | with data interface | 5 |
| 3590-257A | 5-25mm/0.2-1.0" | ±4μm | 0.001mm/0.00005" | with data interface | 7 |
| 3590-457A | 25-45mm/1.0-1.8" | ±4μm | 0.001mm/0.00005" | with data interface | 7 |
| 3590-657A | 45-65mm/1.8-2.6" | ±5μm | 0.001mm/0.00005" | with data interface | 7 |
| 3590-857A | 65-85mm/2.6-3.4" | ±5μm | 0.001mm/0.00005" | with data interface | 7 |
| 3590-153AWL | 1-15mm/0.04-0.6" | ±4μm | 0.001mm/0.00005" | built-in wireless | 3 |
| 3590-203AWL | 5-20mm/0.2-0.8" | ±4μm | 0.001mm/0.00005" | built-in wireless | 3 |
| 3590-353AWL | 20-35mm/0.8-1.4" | ±5μm | 0.001mm/0.00005" | built-in wireless | 3 |
| 3590-503AWL | 35-50mm/1.4-2.0" | ±5μm | 0.001mm/0.00005" | built-in wireless | 3 |
| 3590-653AWL | 50-65mm/2.0-2.6" | ±6μm | 0.001mm/0.00005" | built-in wireless | 3 |
| 3590-803AWL | 65-80mm/2.6-3.2" | ±6μm | 0.001mm/0.00005" | built-in wireless | 3 |
| 3590-953AWL | 80-95mm/3.2-3.6" | ±6μm | 0.001mm/0.00005" | built-in wireless | 3 |
| 3590-255AWL | 5-25mm/0.2-1.0" | ±4μm | 0.001mm/0.00005" | built-in wireless | 5 |
| 3590-455AWL | 25-45mm/1.0-1.8" | ±5μm | 0.001mm/0.00005" | built-in wireless | 5 |
| 3590-655AWL | 45-65mm/1.8-2.6" | ±6μm | 0.001mm/0.00005" | built-in wireless | 5 |
| 3590-855AWL | 65-85mm/2.6-3.4" | ±6μm | 0.001mm/0.00005" | built-in wireless | 5 |
| 3590-1055AWL | 85-105mm/3.4-4.2" | ±6μm | 0.001mm/0.00005" | built-in wireless | 5 |
| 3590-257AWL | 5-25mm/0.2-1.0" | ±4μm | 0.001mm/0.00005" | built-in wireless | 7 |
| 3590-457AWL | 25-45mm/1.0-1.8" | ±4μm | 0.001mm/0.00005" | built-in wireless | 7 |
| 3590-657AWL | 45-65mm/1.8-2.6" | ±5μm | 0.001mm/0.00005" | built-in wireless | 7 |
| 3590-857AWL | 65-85mm/2.6-3.4" | ±5μm | 0.001mm/0.00005" | built-in wireless | 7 |
