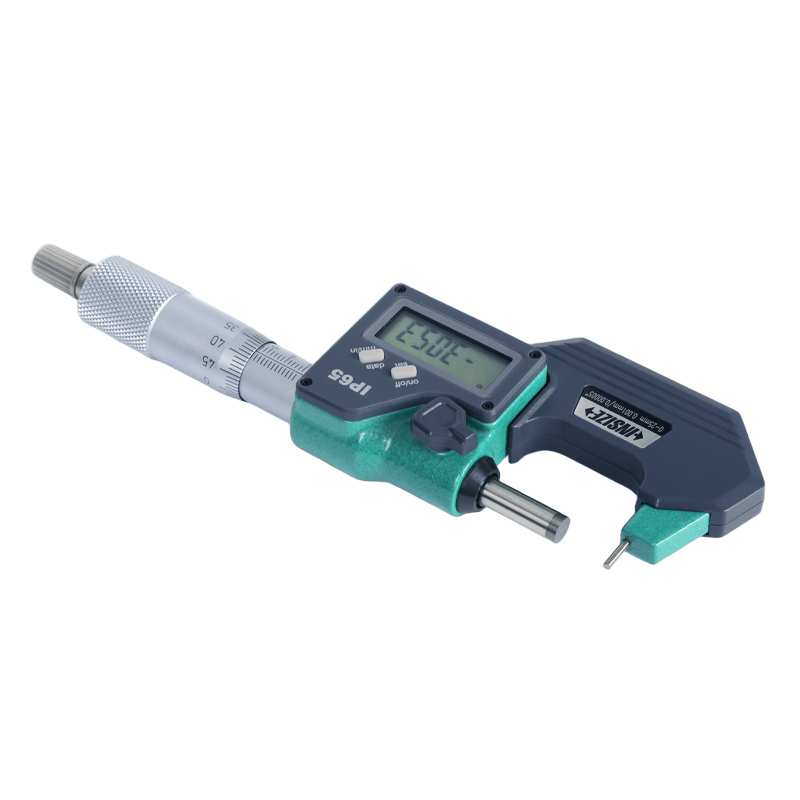

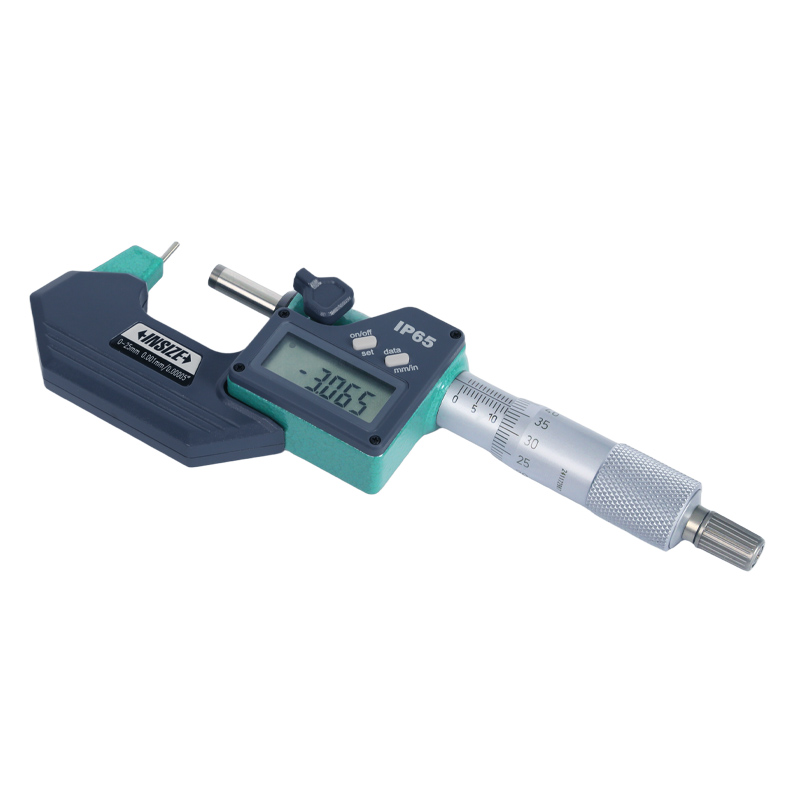

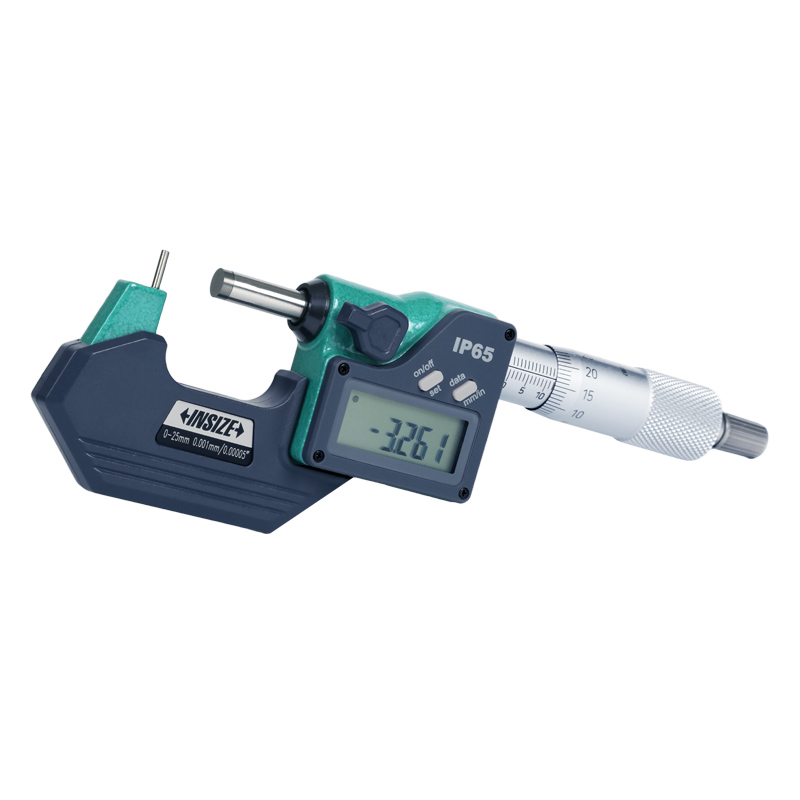

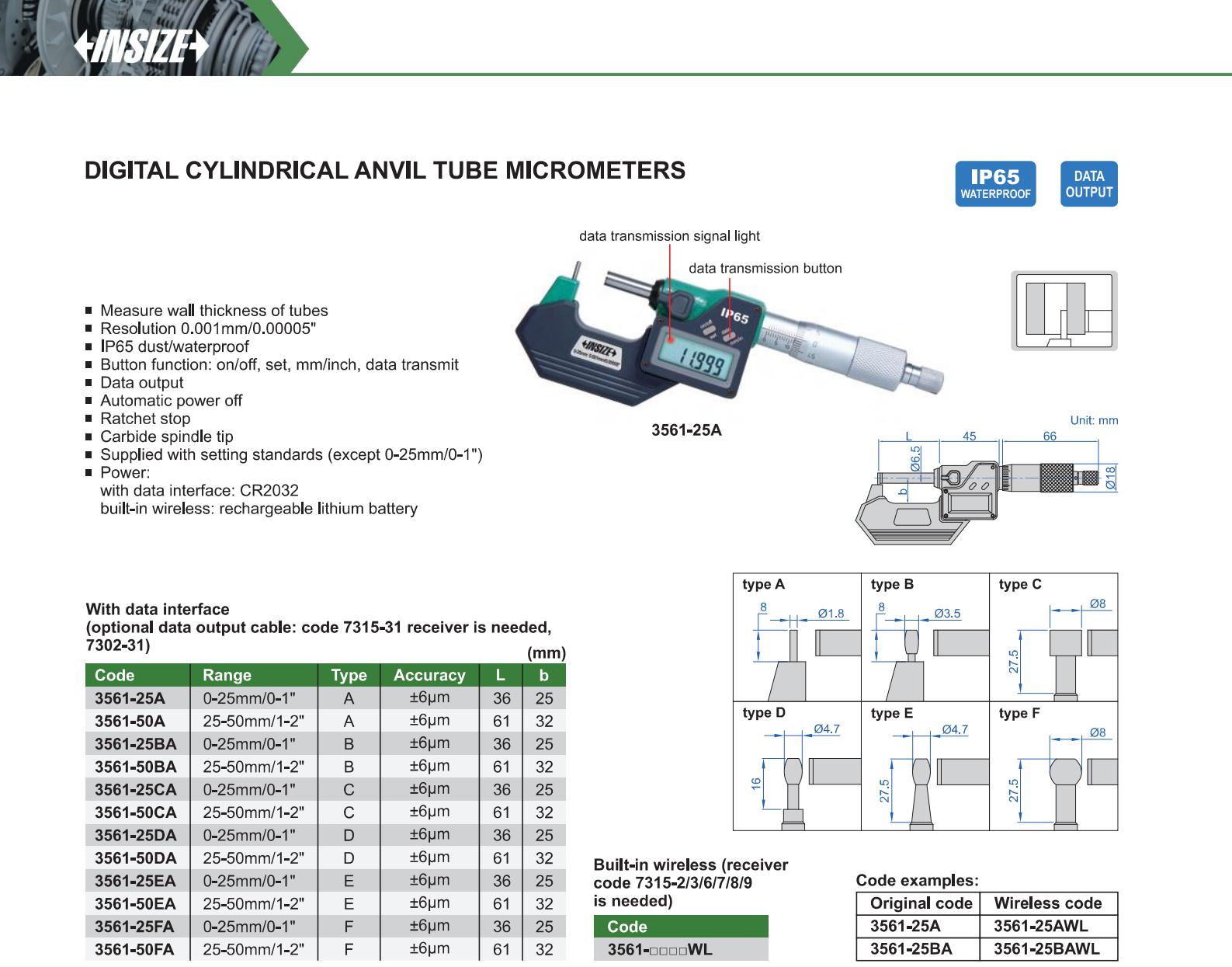

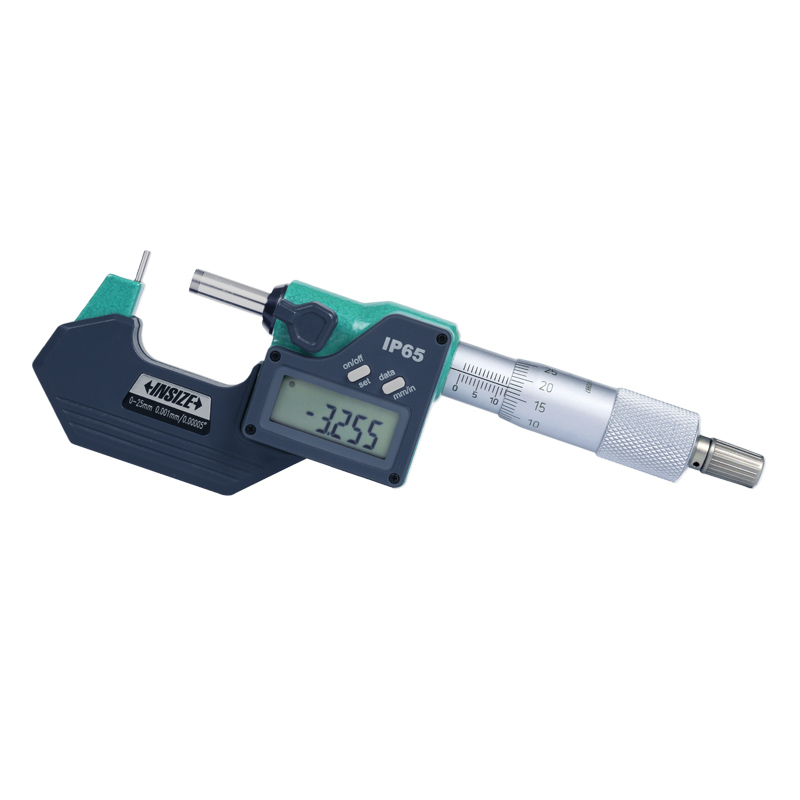

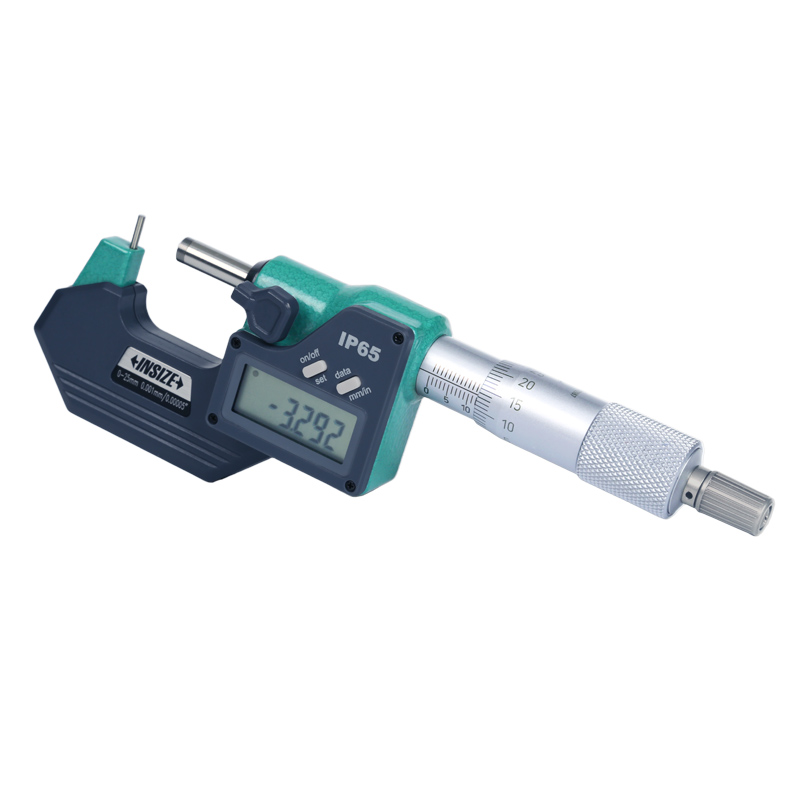

Digital Cylindrical Anvil Tube Micrometers
Code: 3561
Measure wall thickness of tubes
Button function: on/off, set, mm/inch, data transmit
Automatic power off
Ratchet stop
Carbide spindle tip
Supplied with setting standards (except 0-25mm/0-1")
| Code | Type | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|---|
| 3561-25A | A | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-50A | A | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-25BA | B | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-50BA | B | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-25CA | C | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-50CA | C | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-25DA | D | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-50DA | D | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-25EA | E | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-50EA | E | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-25FA | F | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-50FA | F | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3561-25AWL | A | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3561-50AWL | A | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3561-25BAWL | B | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3561-50BAWL | B | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3561-25CAWL | C | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3561-50CAWL | C | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3561-25DAWL | D | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3561-50DAWL | D | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3561-25EAWL | E | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3561-50EAWL | E | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3561-25FAWL | F | 0-25mm/0-1" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3561-50FAWL | F | 25-50mm/1-2" | ±6μm | 0.001mm/0.00005" | built-in wireless |
