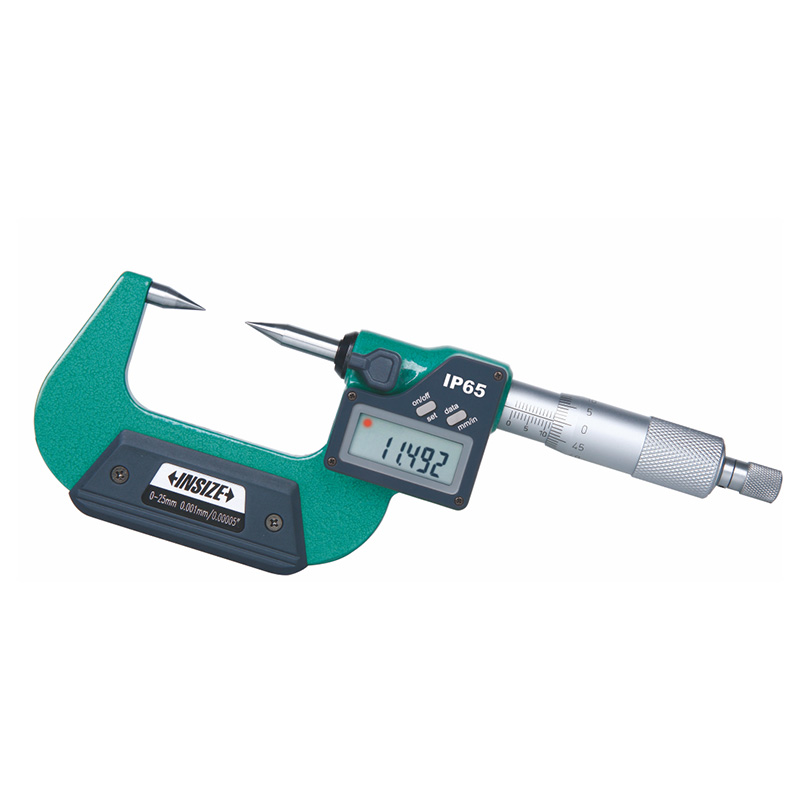

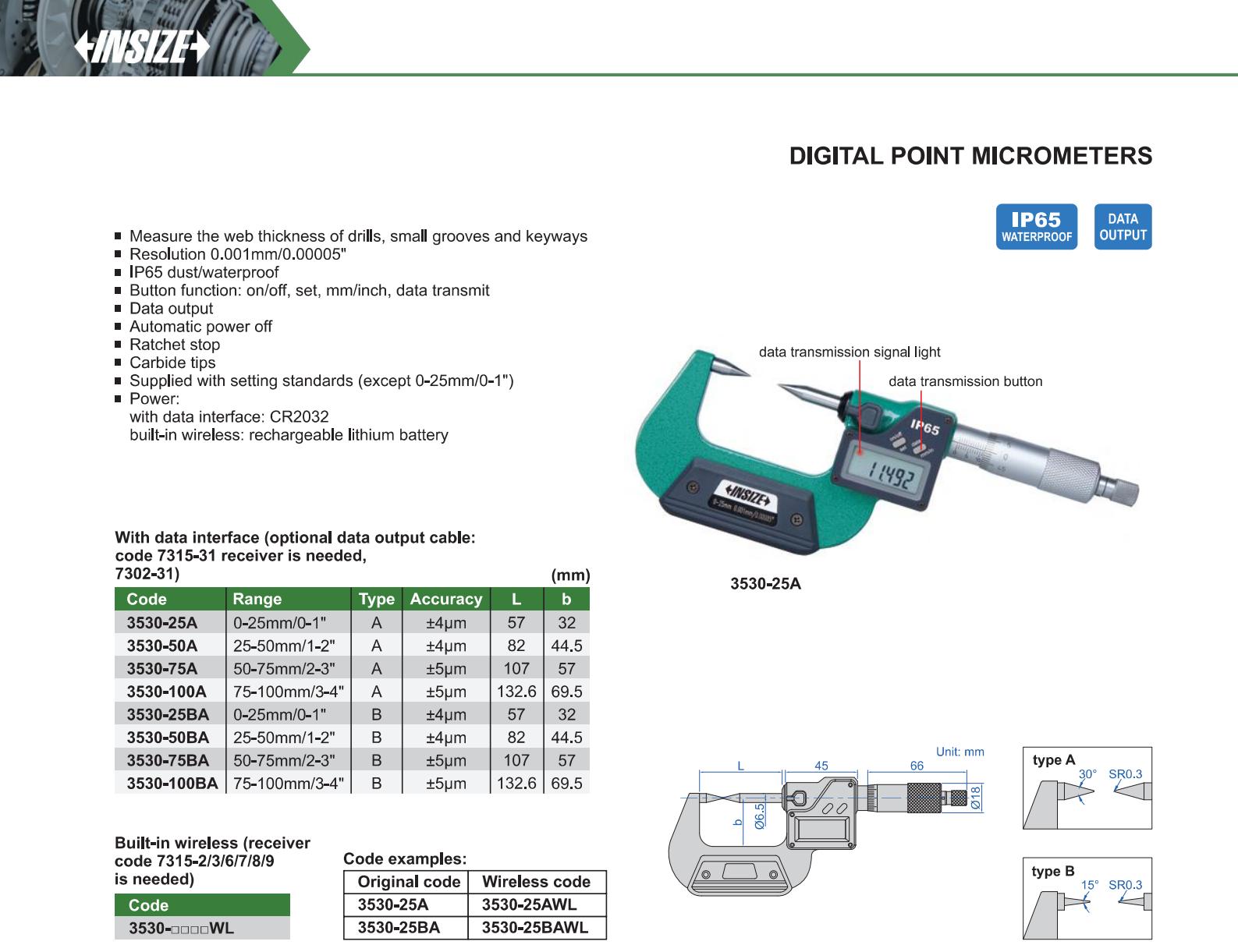

Digital Point Micrometers
Code: 3530
Measure the web thickness of drills, small grooves and keyways
Button function: on/off, set, mm/inch, data transmit
Automatic power off
Ratchet stop
Carbide tips
Supplied with setting standards (except 0-25mm/0-1")
| Code | Type | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|---|
| 3530-25A | A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3530-50A | A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3530-75A | A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3530-100A | A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3530-25BA | B | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3530-50BA | B | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3530-75BA | B | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3530-100BA | B | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3530-25AWL | A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3530-50AWL | A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3530-75AWL | A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3530-100AWL | A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3530-25BAWL | B | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3530-50BAWL | B | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3530-75BAWL | B | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3530-100BAWL | B | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | built-in wireless |
