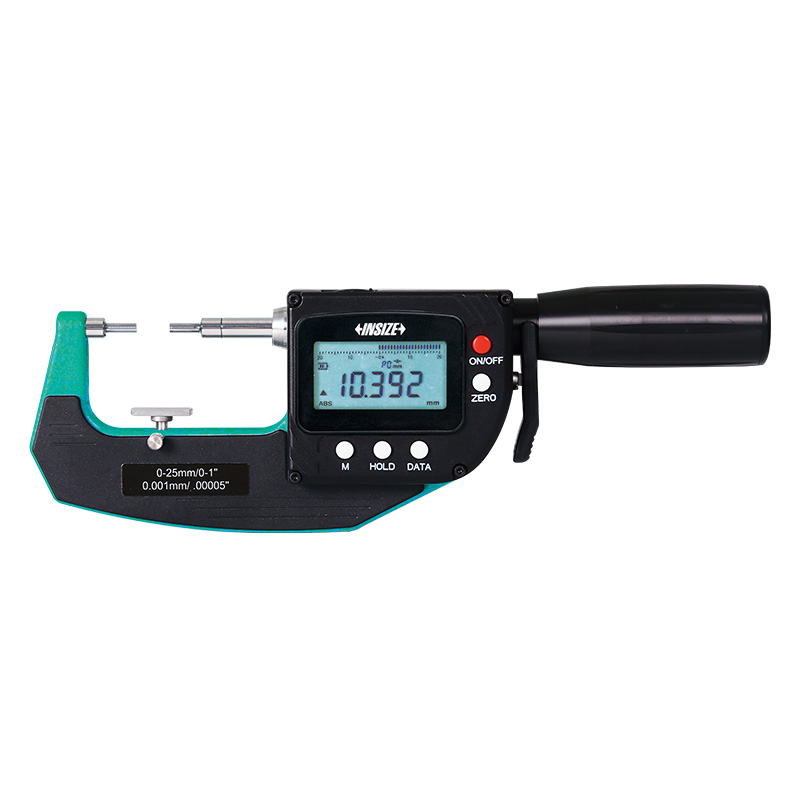

Digital Spline Micrometers/Snap Gauges
Code: 3356
Measure splined shafts, slots and keyways
Absolute encoder, the original data remains after power off
One turn of sleeve makes 10mm spindle feed
Carbide measuring faces
Measuring force 5-10N
Customizable measuring force range 3-11N
| Code | Type | Range | Accuracy | Resolution |
|---|---|---|---|---|
| 3356-251 | A | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" |
| 3356-501 | A | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" |
| 3356-751 | A | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" |
| 3356-252 | B | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" |
| 3356-502 | B | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" |
| 3356-752 | B | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" |
| 3356-251WL | A | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" |
| 3356-501WL | A | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" |
| 3356-751WL | A | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" |
| 3356-252WL | B | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" |
| 3356-502WL | B | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" |
| 3356-752WL | B | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" |

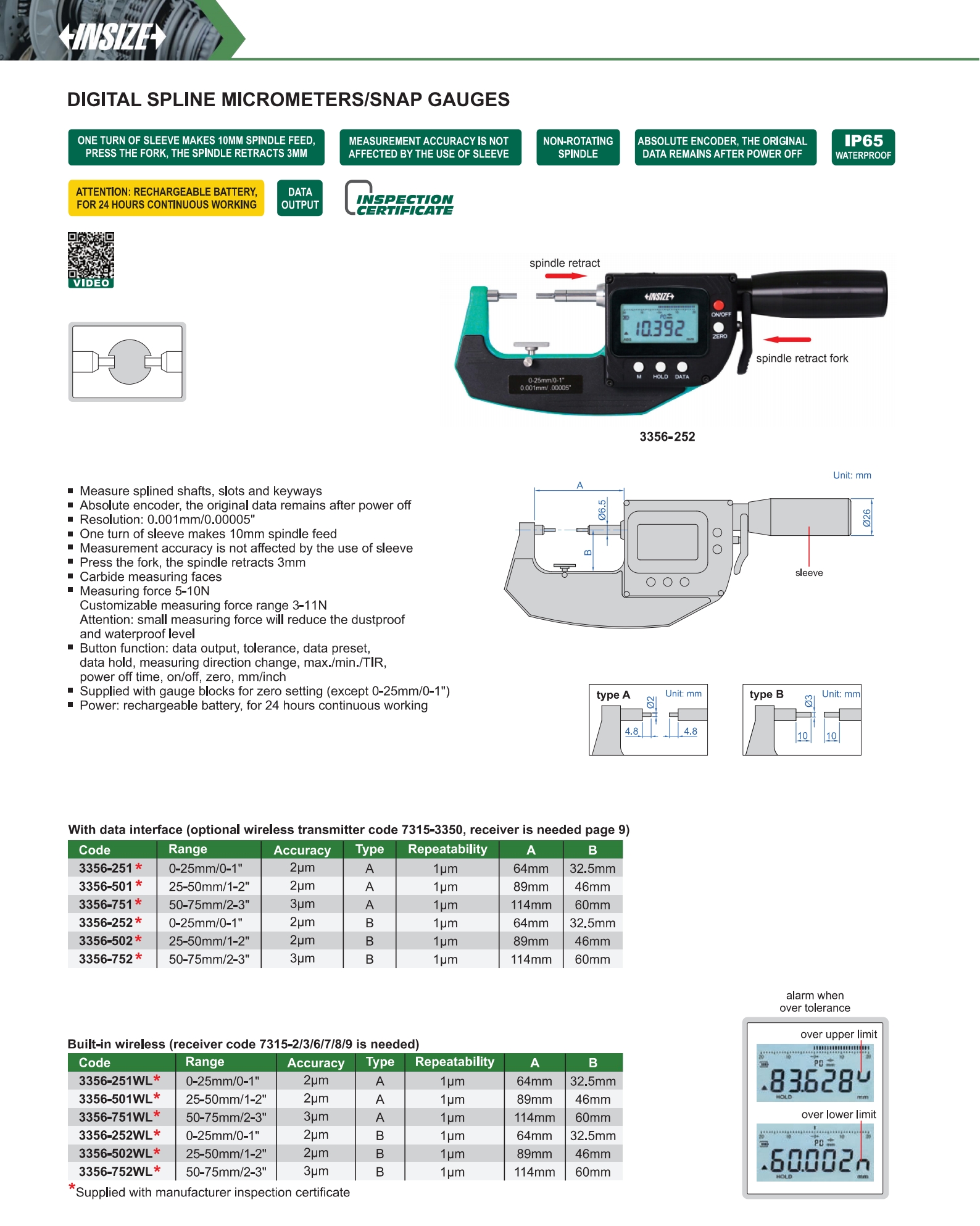

View the complete
product specifications
