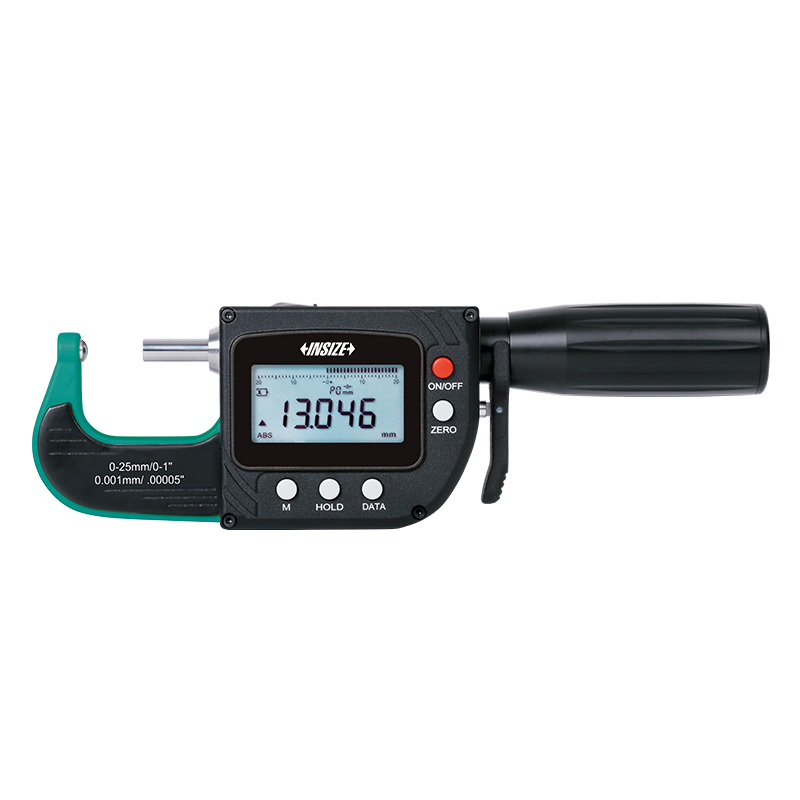

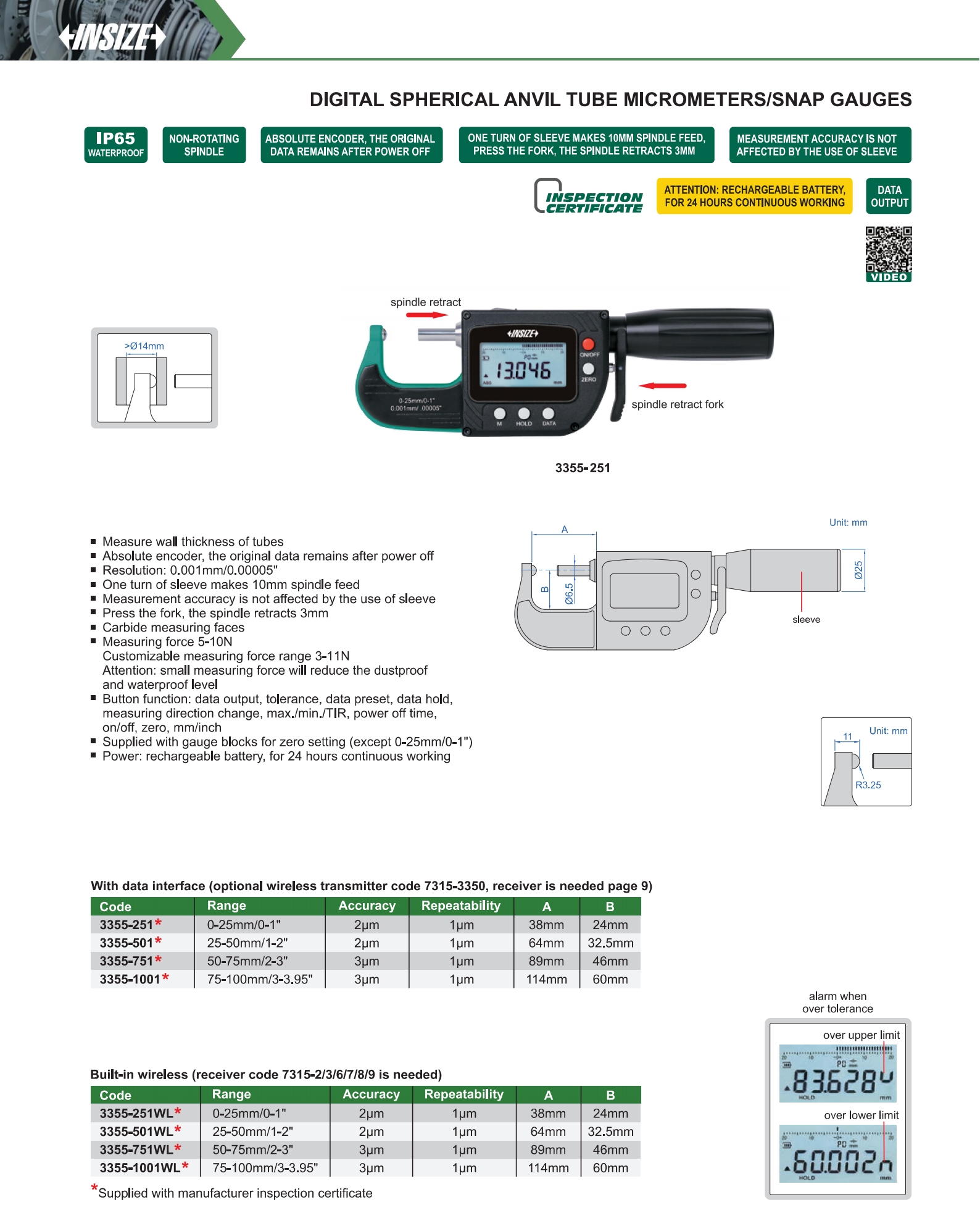

Digital Spherical Anvil Tube Micrometers/Snap Gauges
Code: 3355
Measure wall thickness of tubes
Absolute encoder, the original data remains after power off
One turn of sleeve makes 10mm spindle feed
Carbide measuring faces
Measuring force 5-10N
Customizable measuring force range 3-11N
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3355-251 | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" |
| 3355-501 | 25-50mm/1-2" | 2um | 0.001mm/0.00005" |
| 3355-751 | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" |
| 3355-1001 | 75-100mm/3-3.95" | 3um | 0.001mm/0.00005" |
| 3355-251WL | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" |
| 3355-501WL | 25-50mm/1-2" | 2um | 0.001mm/0.00005" |
| 3355-751WL | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" |
| 3355-1001WL | 75-100mm/3-3.95" | 3um | 0.001mm/0.00005" |
