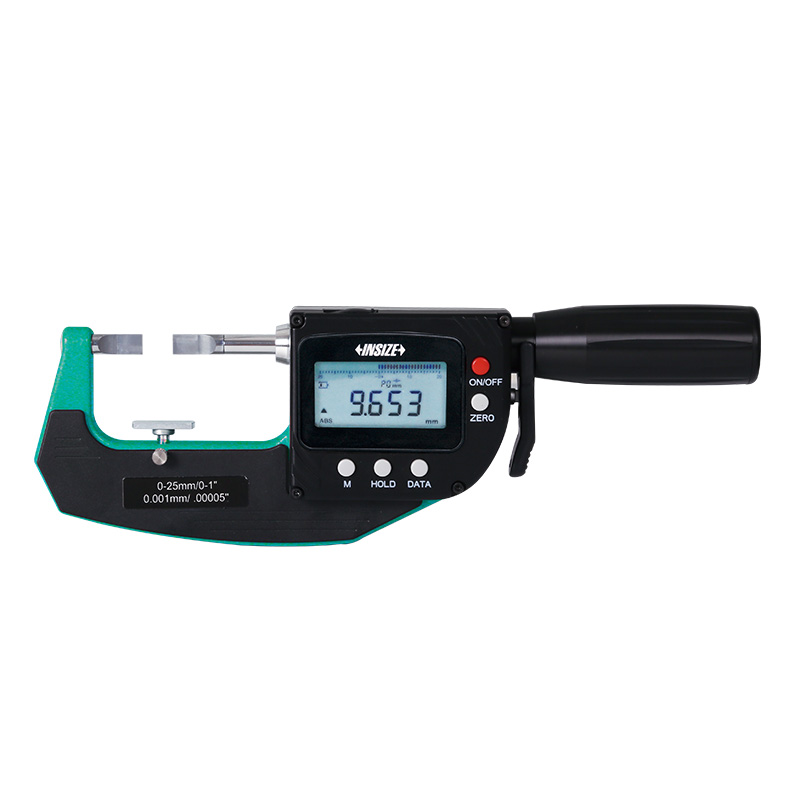

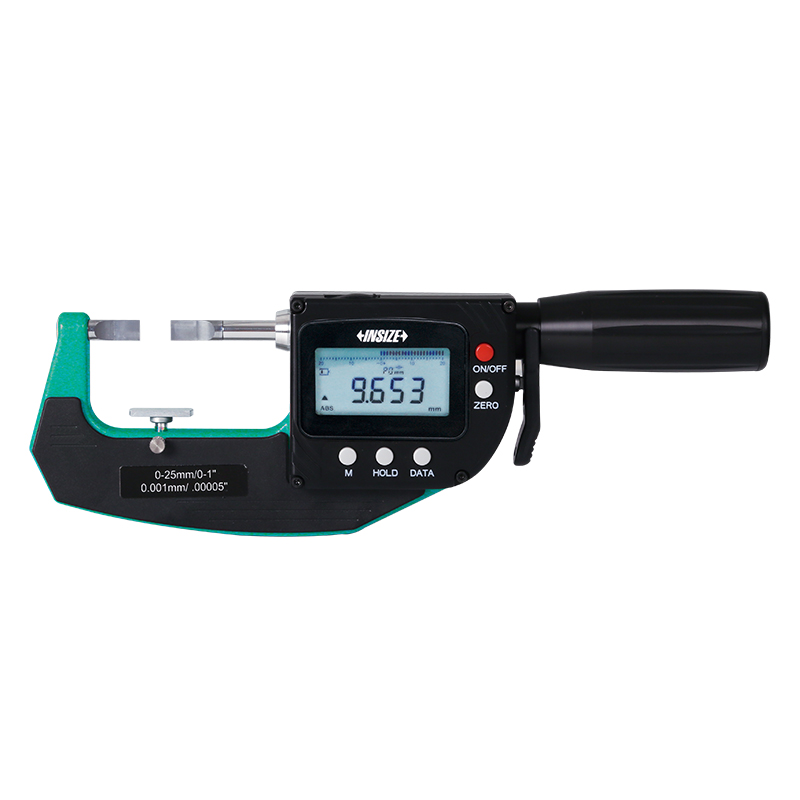

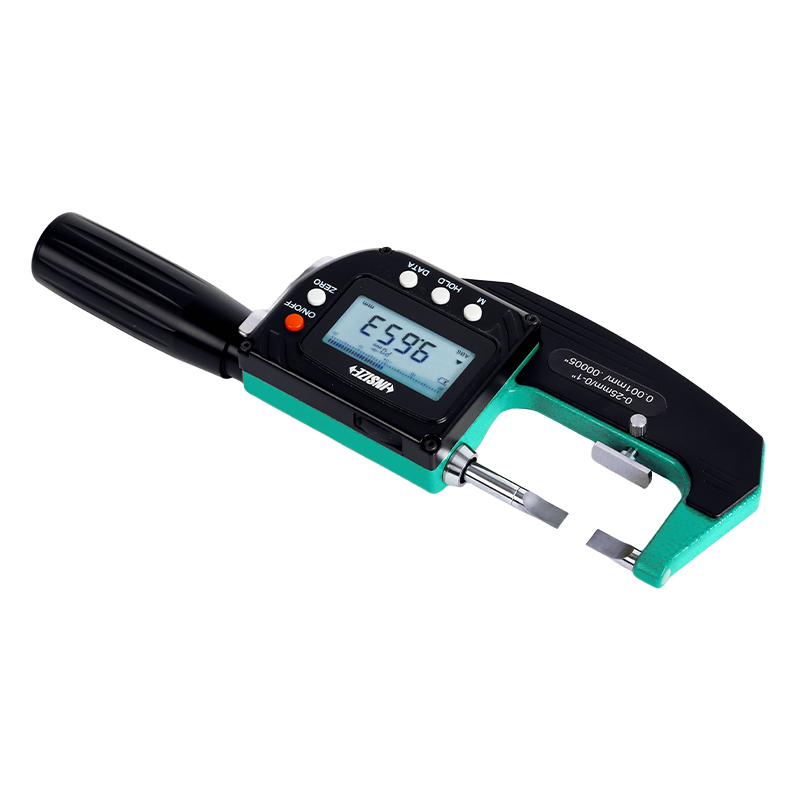

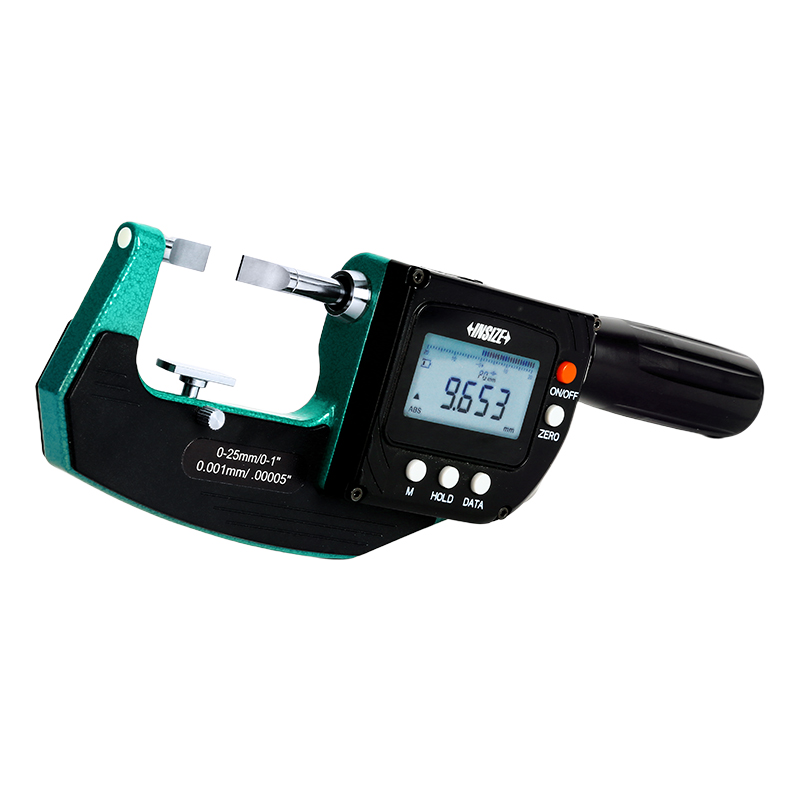

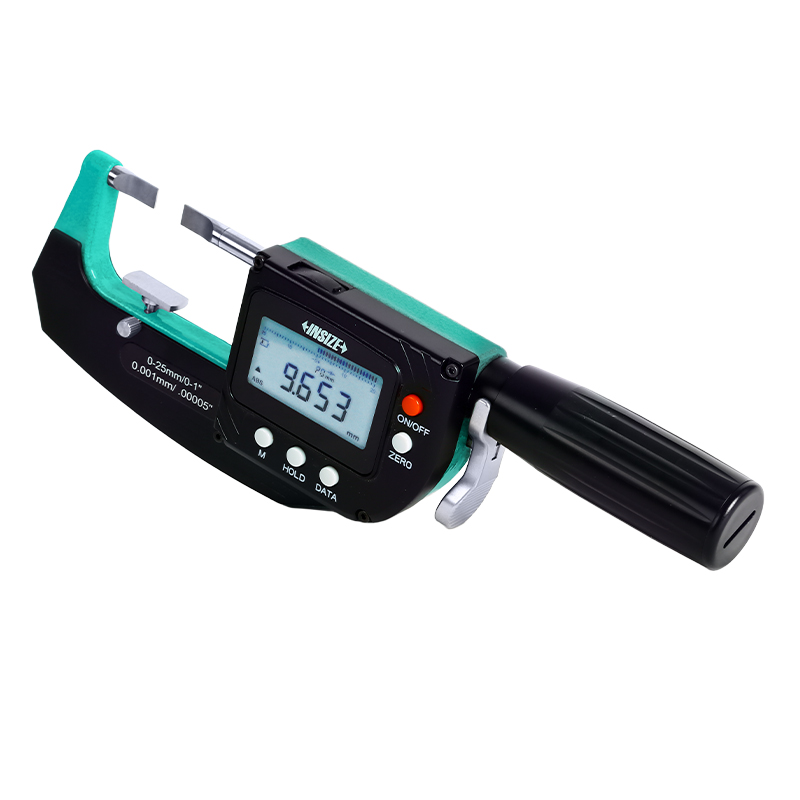

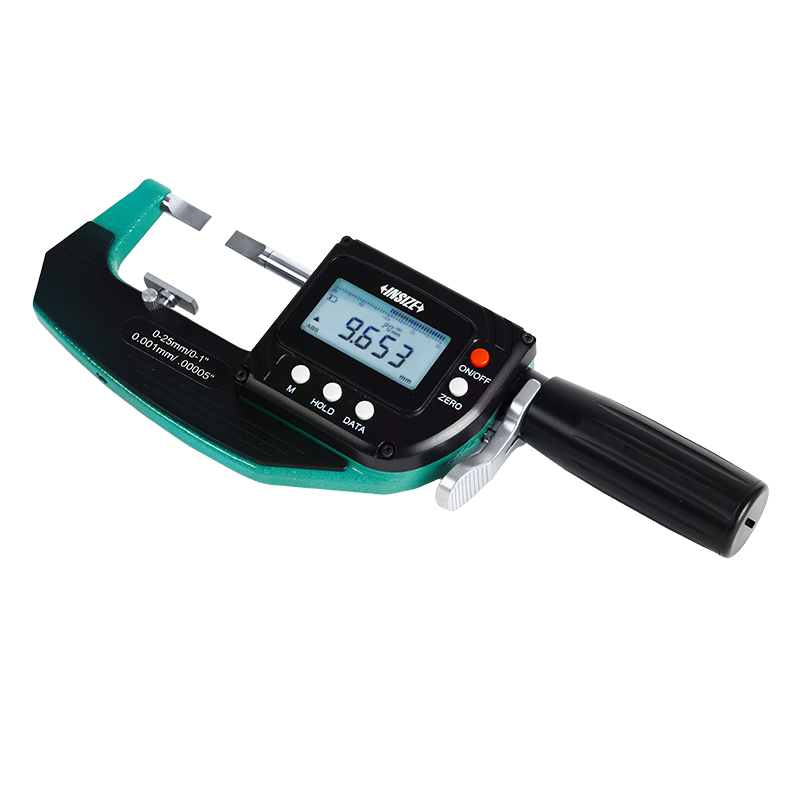

Digital Blade Micrometers/Snap Gauges
Code: 3352
Measure the groove diameter of shafts and keyways
Absolute encoder, the original data remains after power off
One turn of sleeve makes 10mm spindle feed
Press the fork, the spindle retracts 3mm
Carbide measuring faces
Measuring force 5-10N, Customizable measuring force range 3-11N
| Code | Type | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|---|
| 3352-251 | A | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | with data interface |
| 3352-501 | A | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | with data interface |
| 3352-751 | A | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | with data interface |
| 3352-252 | B | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | with data interface |
| 3352-502 | B | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | with data interface |
| 3352-752 | B | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | with data interface |
| 3352-251WL | A | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | built-in wireless |
| 3352-501WL | A | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | built-in wireless |
| 3352-751WL | A | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | built-in wireless |
| 3352-252WL | B | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | built-in wireless |
| 3352-502WL | B | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | built-in wireless |
| 3352-752WL | B | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | built-in wireless |
