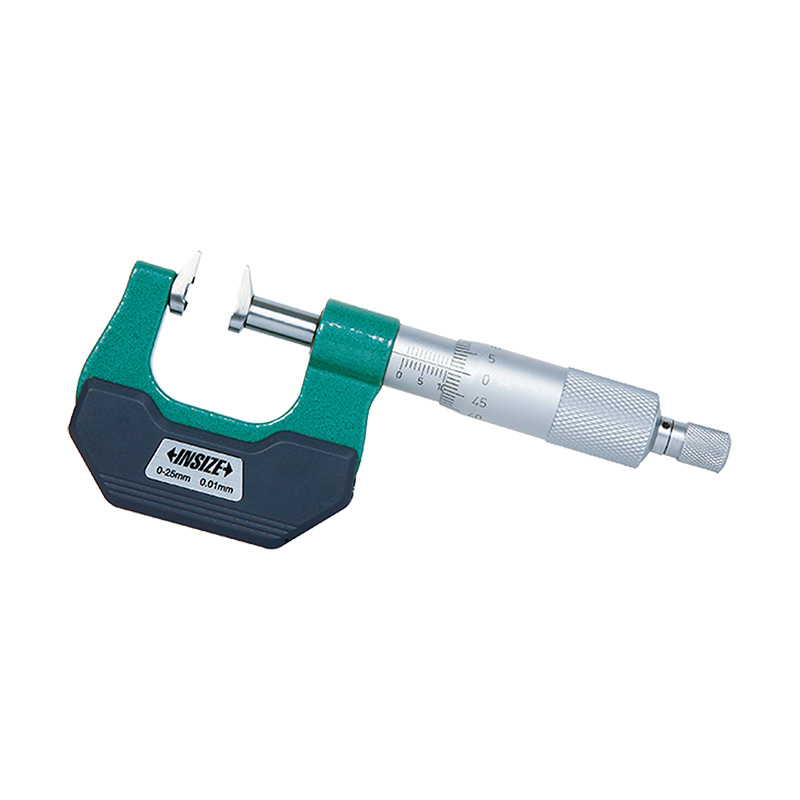

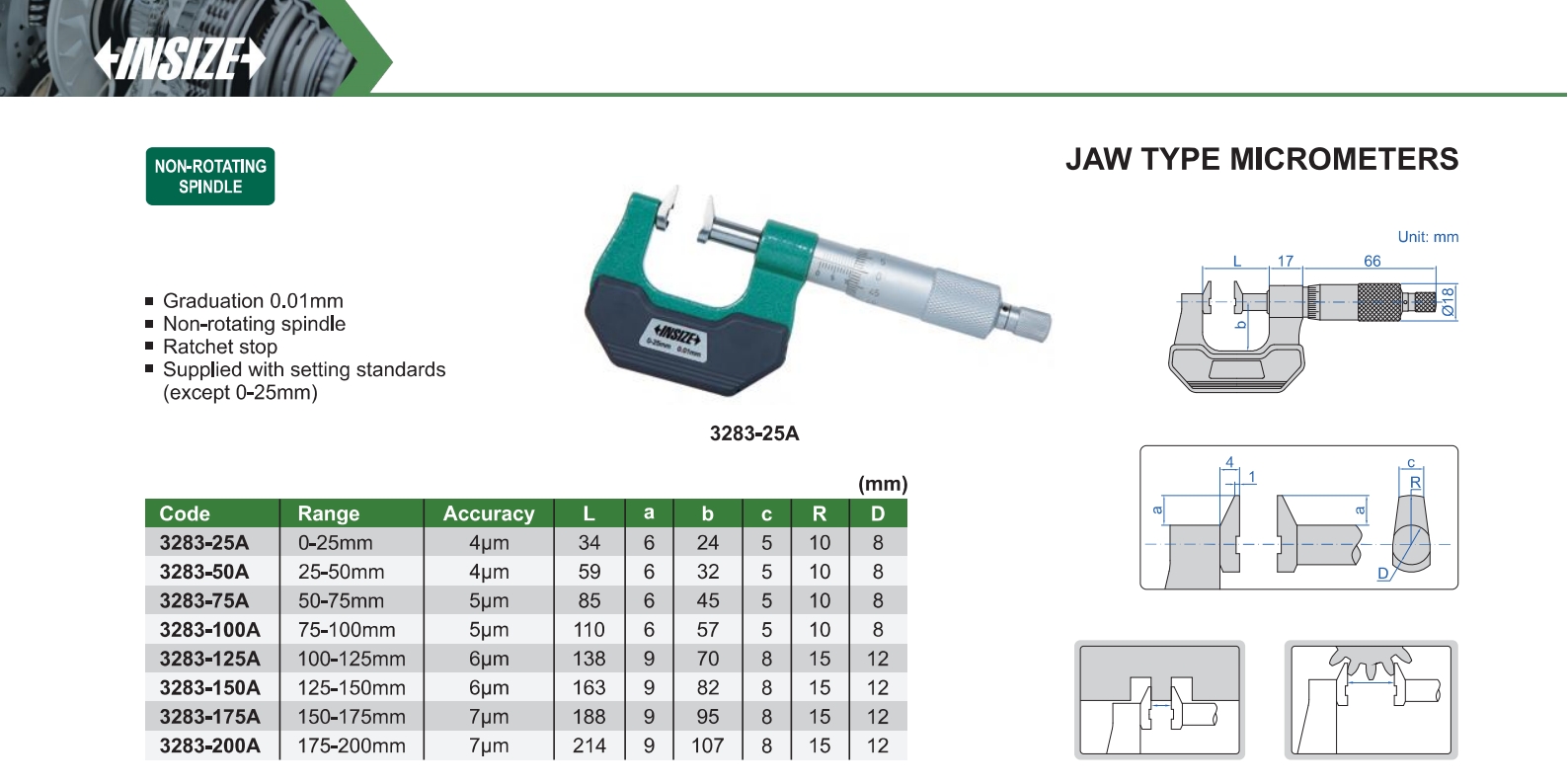

Jaw Type Micrometers
Code: 3283
Non-rotating spindle
Ratchet stop
Supplied with setting standards (except 0-25mm)
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3283-25A | 0-25mm | 4μm | 0.01mm |
| 3283-50A | 25-50mm | 4μm | 0.01mm |
| 3283-75A | 50-75mm | 5μm | 0.01mm |
| 3283-100A | 75-100mm | 5μm | 0.01mm |
| 3283-125A | 100-125mm | 6μm | 0.01mm |
| 3283-150A | 125-150mm | 6μm | 0.01mm |
| 3283-175A | 150-175mm | 7μm | 0.01mm |
| 3283-200A | 175-200mm | 7μm | 0.01mm |
