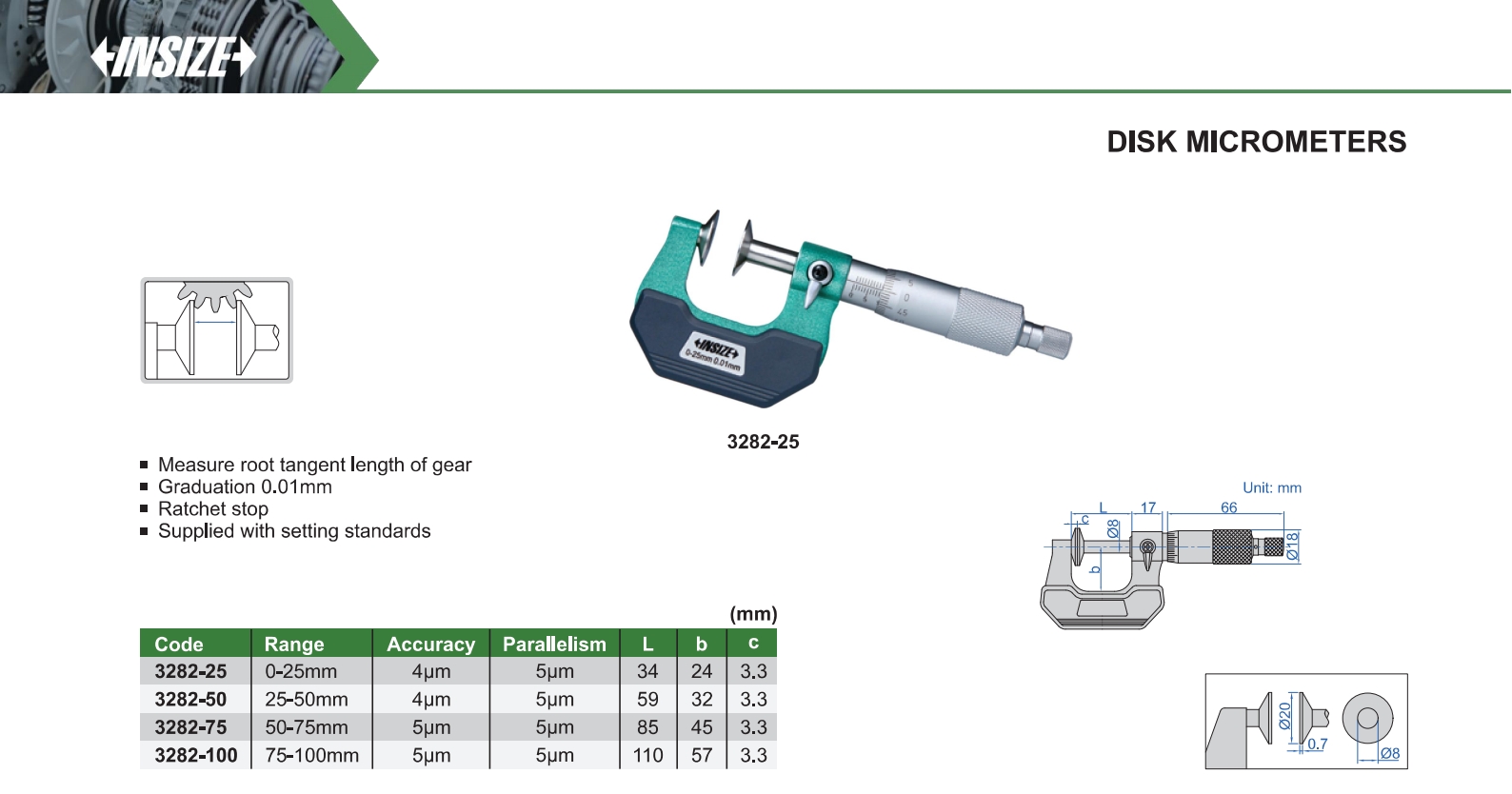

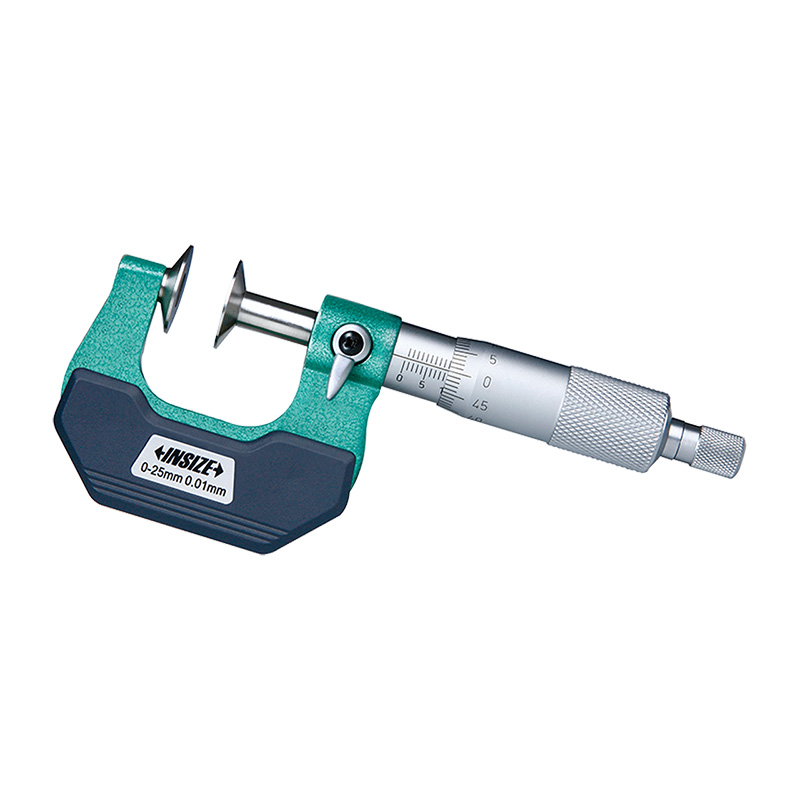

DISK MICROMETERS
Code: 3282
Measure root tangent length of gear
Ratchet stop
Supplied with setting standards
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3282-25 | 0-25mm | 4μm | 0.01mm |
| 3282-50 | 25-50mm | 4μm | 0.01mm |
| 3282-75 | 50-75mm | 5μm | 0.01mm |
| 3282-100 | 75-100mm | 5μm | 0.01mm |
View the complete
product specifications
