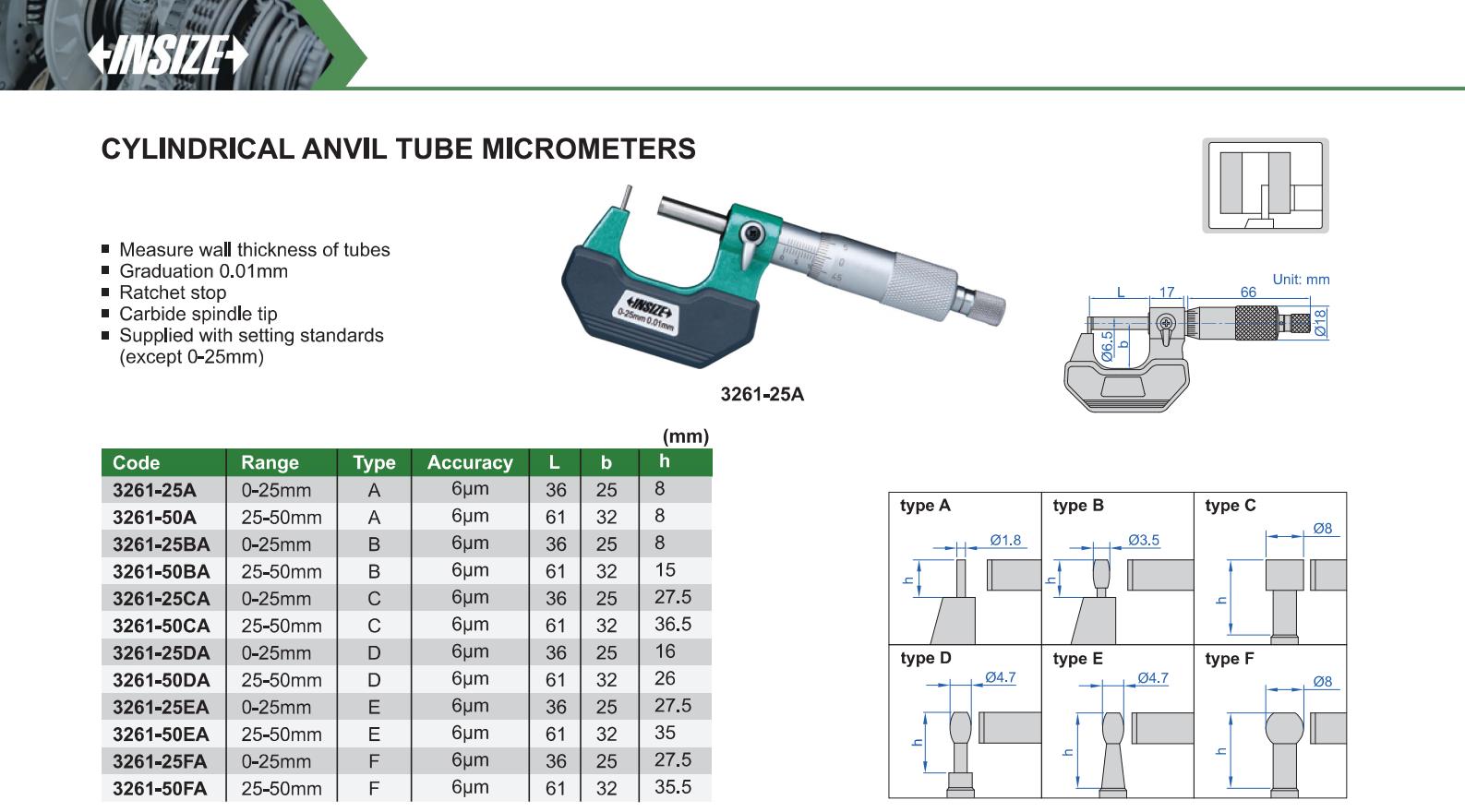

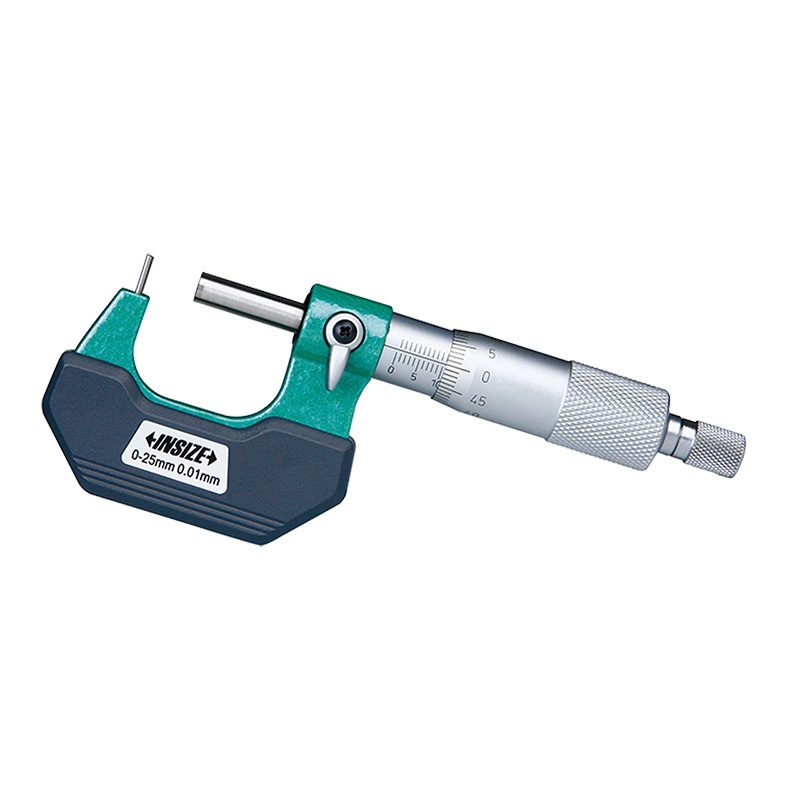

Cylindrical Anvil Tube Micrometers
Code: 3261
Measure wall thickness of tubes
Ratchet stop
Carbide spindle tip
Supplied with setting standards (except 0-25mm)
| Code | Type | Range | Accuracy | Graduation |
|---|---|---|---|---|
| 3261-25A | A | 0-25mm | 6μm | 0.01mm |
| 3261-50A | A | 25-50mm | 6μm | 0.01mm |
| 3261-25BA | B | 0-25mm | 6μm | 0.01mm |
| 3261-50BA | B | 25-50mm | 6μm | 0.01mm |
| 3261-25CA | C | 0-25mm | 6μm | 0.01mm |
| 3261-50CA | C | 25-50mm | 6μm | 0.01mm |
| 3261-25DA | D | 0-25mm | 6μm | 0.01mm |
| 3261-50DA | D | 25-50mm | 6μm | 0.01mm |
| 3261-25EA | E | 0-25mm | 6μm | 0.01mm |
| 3261-50EA | E | 25-50mm | 6μm | 0.01mm |
| 3261-25FA | F | 0-25mm | 6μm | 0.01mm |
| 3261-50FA | F | 25-50mm | 6μm | 0.01mm |
View the complete
product specifications
