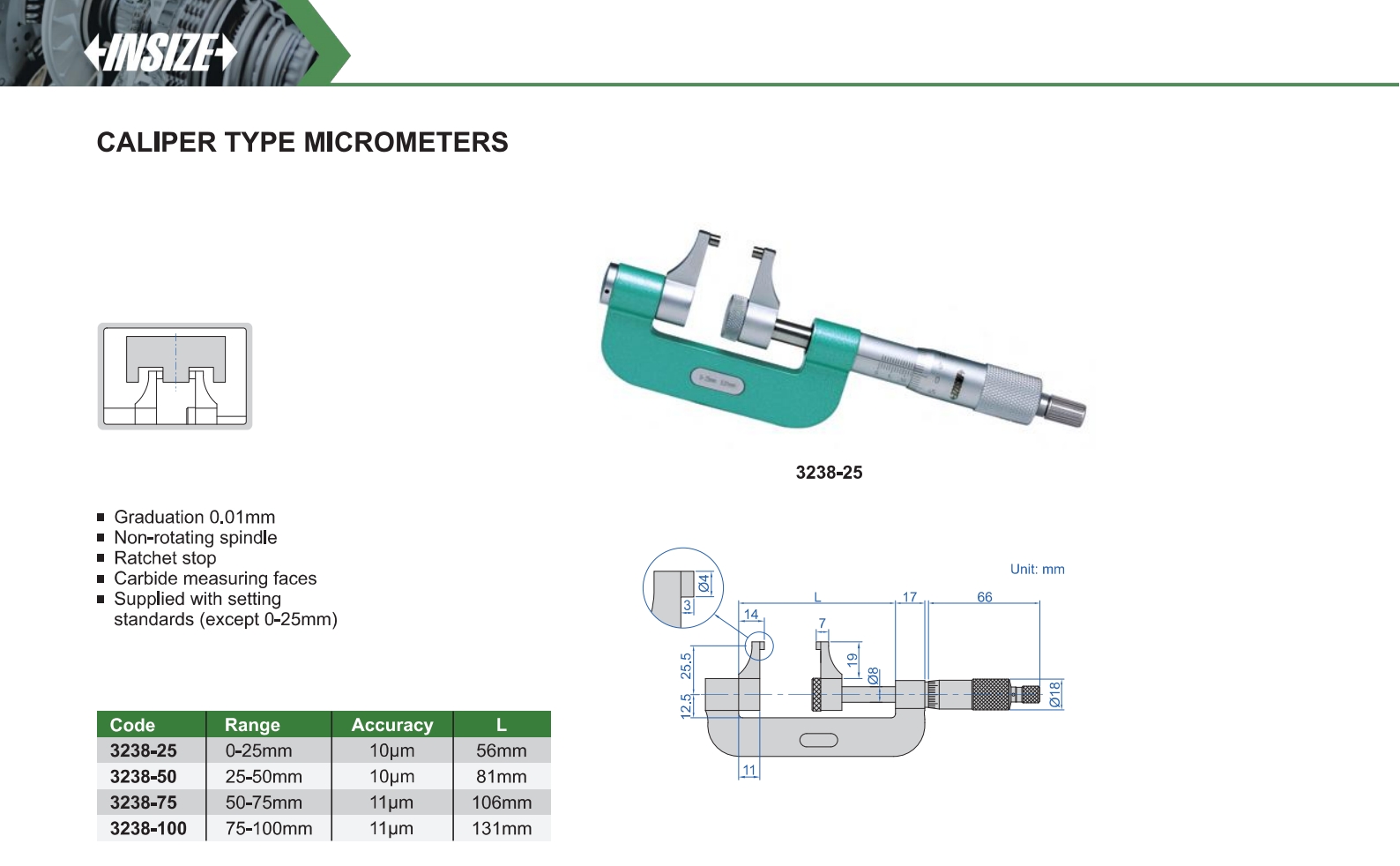

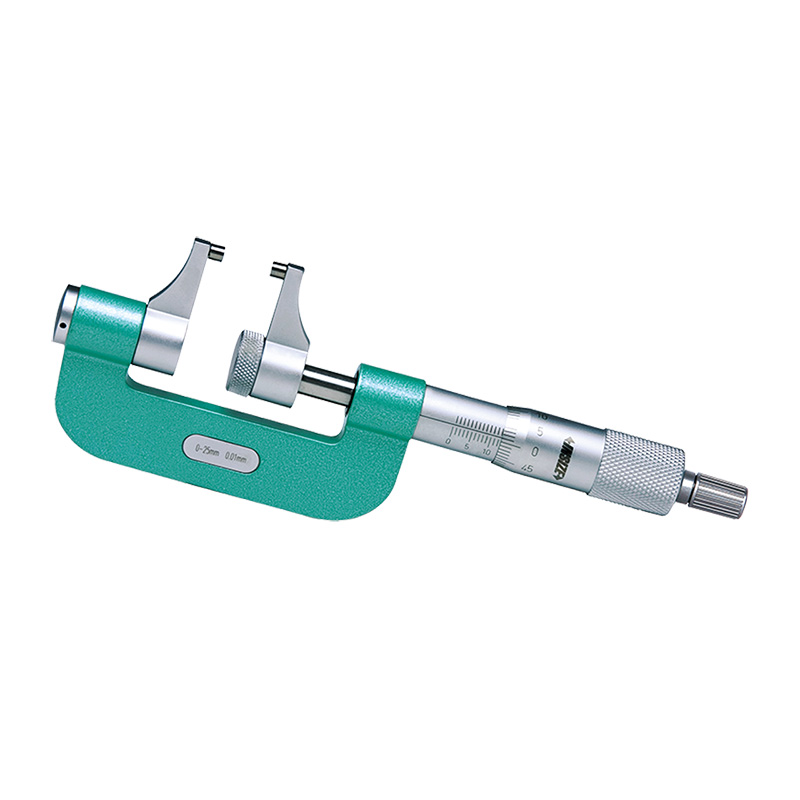

Caliper Type Micrometers
Code: 3238
Non-rotating spindle
Ratchet stop
Carbide measuring faces
Supplied with setting standards (except 0-25mm)
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3238-25 | 0-25mm | 10μm | 0.01mm |
| 3238-50 | 25-50mm | 10μm | 0.01mm |
| 3238-75 | 50-75mm | 11μm | 0.01mm |
| 3238-100 | 75-100mm | 11μm | 0.01mm |
