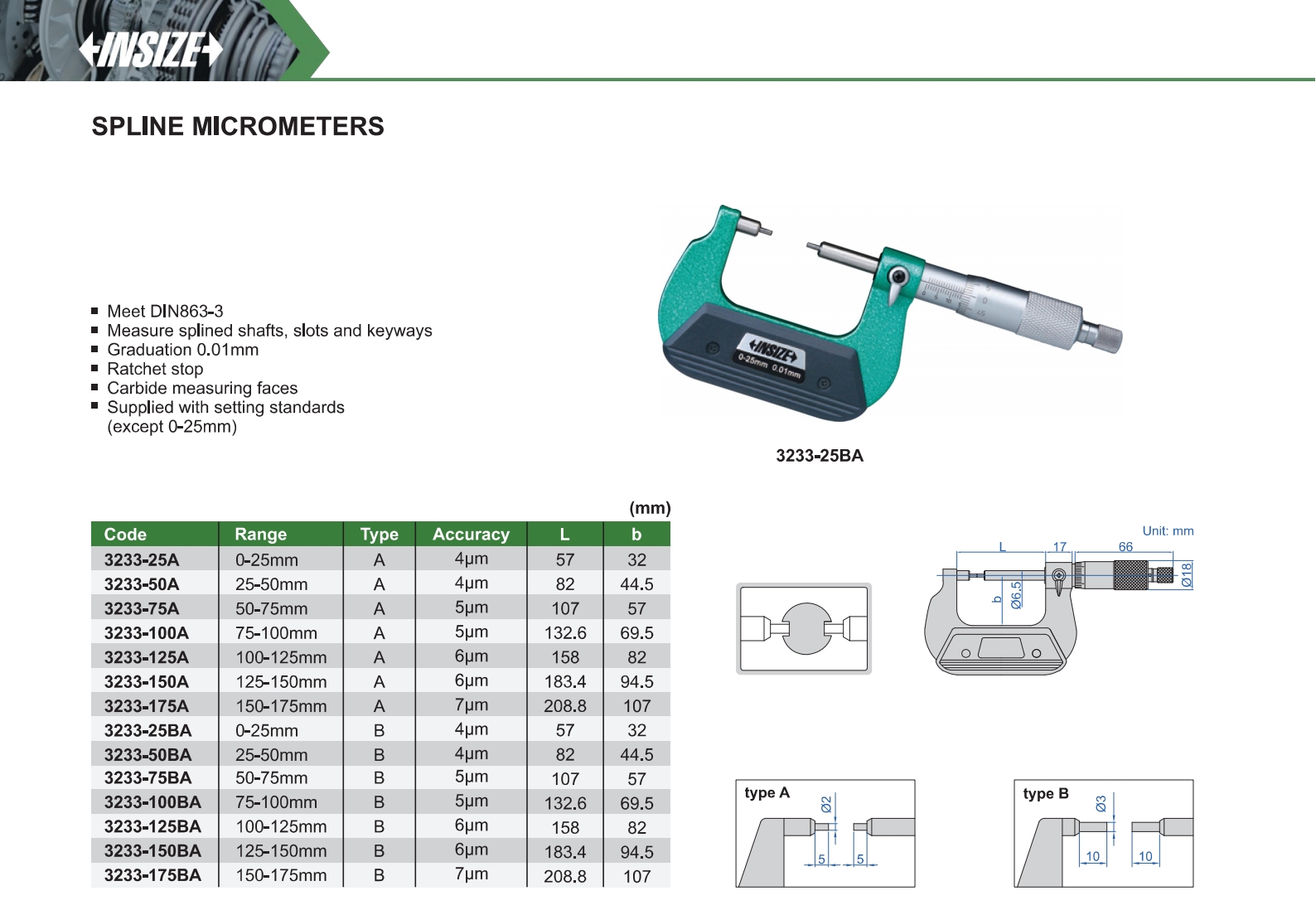

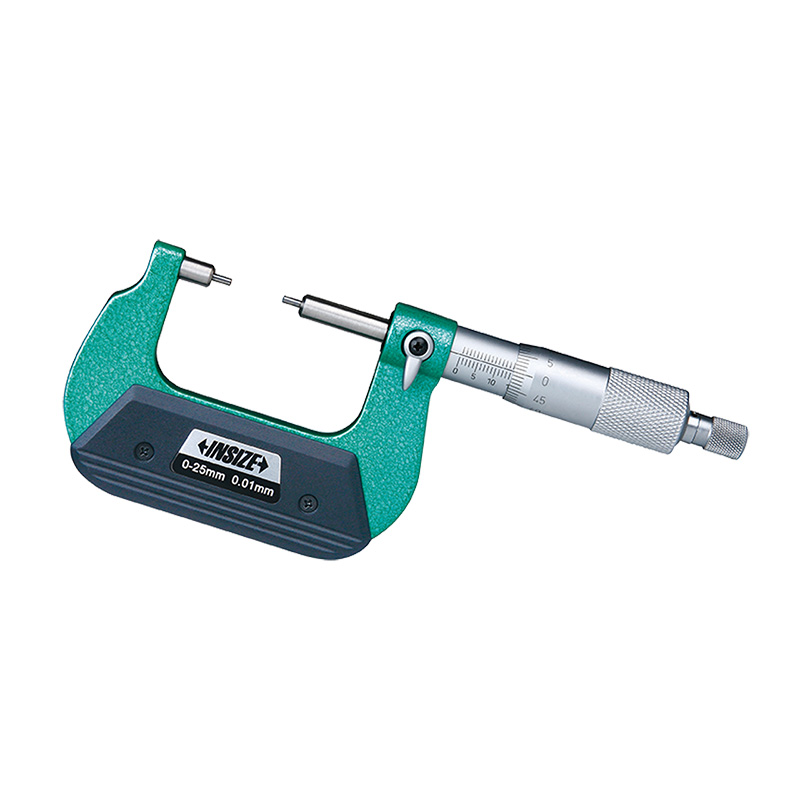

Spline Micrometers
Code: 3233
Meet DIN863-3
Measure splined shafts, slots and keyways
Ratchet stop
Carbide measuring faces
Supplied with setting standards (except 0-25mm)
| Code | Type | Range | Accuracy | Graduation |
|---|---|---|---|---|
| 3233-25A | A | 0-25mm | 4μm | 0.01mm |
| 3233-50A | A | 25-50mm | 4μm | 0.01mm |
| 3233-75A | A | 50-75mm | 5μm | 0.01mm |
| 3233-100A | A | 75-100mm | 5μm | 0.01mm |
| 3233-125A | A | 100-125mm | 6μm | 0.01mm |
| 3233-150A | A | 125-150mm | 6μm | 0.01mm |
| 3233-175A | A | 150-175mm | 7μm | 0.01mm |
| 3233-25BA | B | 0-25mm | 4μm | 0.01mm |
| 3233-50BA | B | 25-50mm | 4μm | 0.01mm |
| 3233-75BA | B | 50-75mm | 5μm | 0.01mm |
| 3233-100BA | B | 75-100mm | 5μm | 0.01mm |
| 3233-125BA | B | 100-125mm | 6μm | 0.01mm |
| 3233-150BA | B | 125-150mm | 6μm | 0.01mm |
| 3233-175BA | B | 150-175mm | 7μm | 0.01mm |
