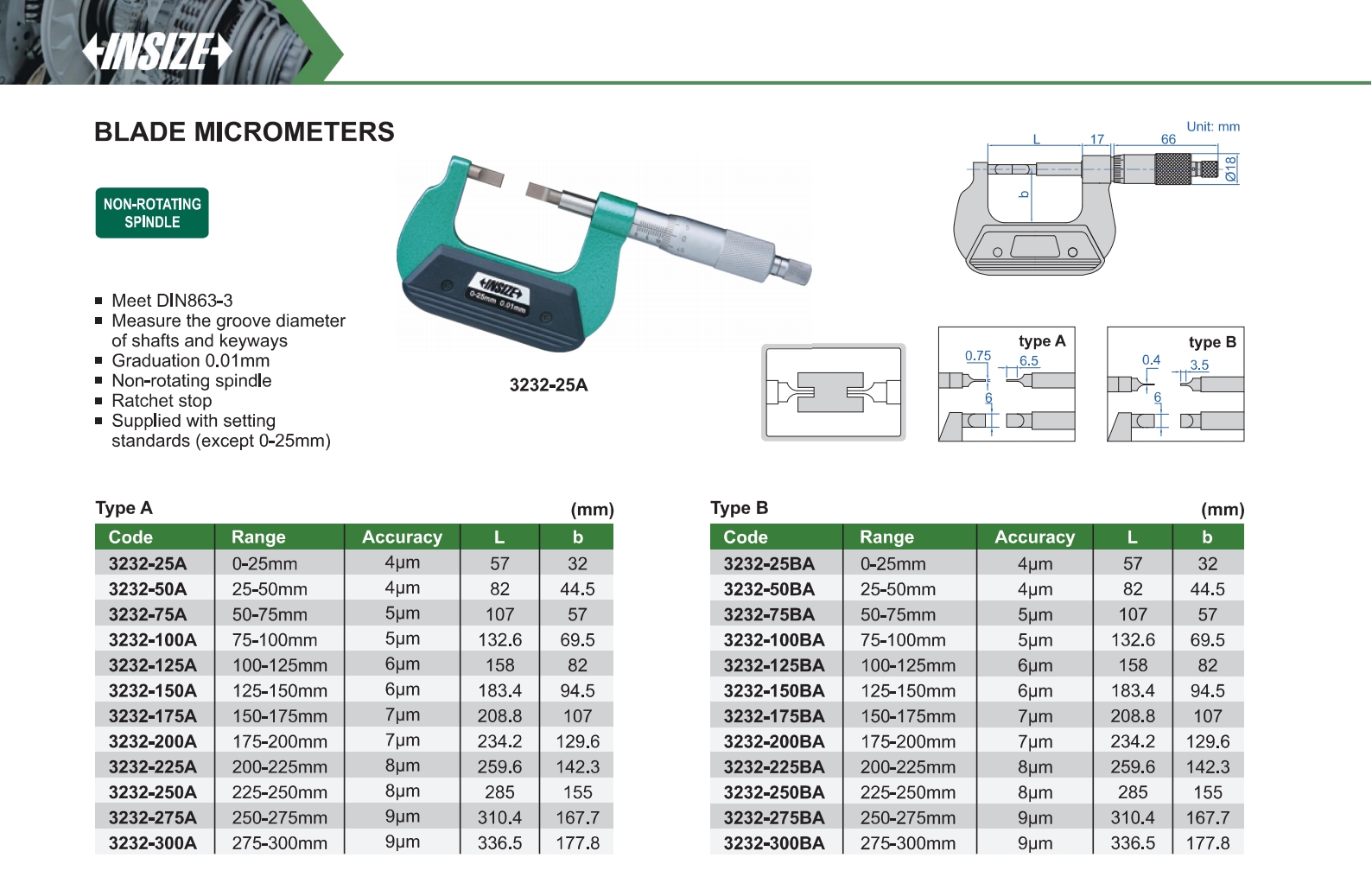

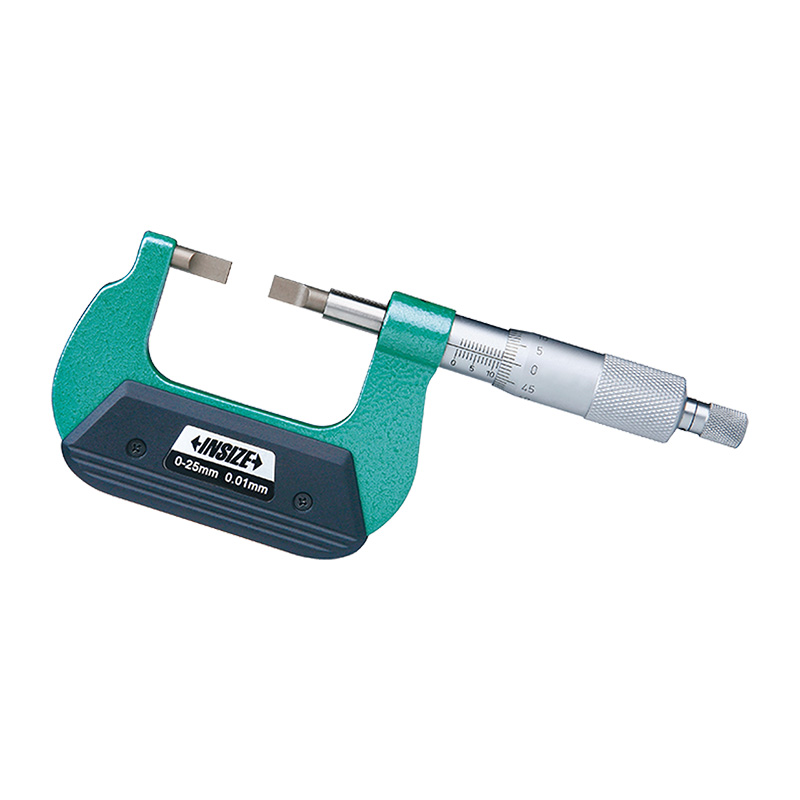

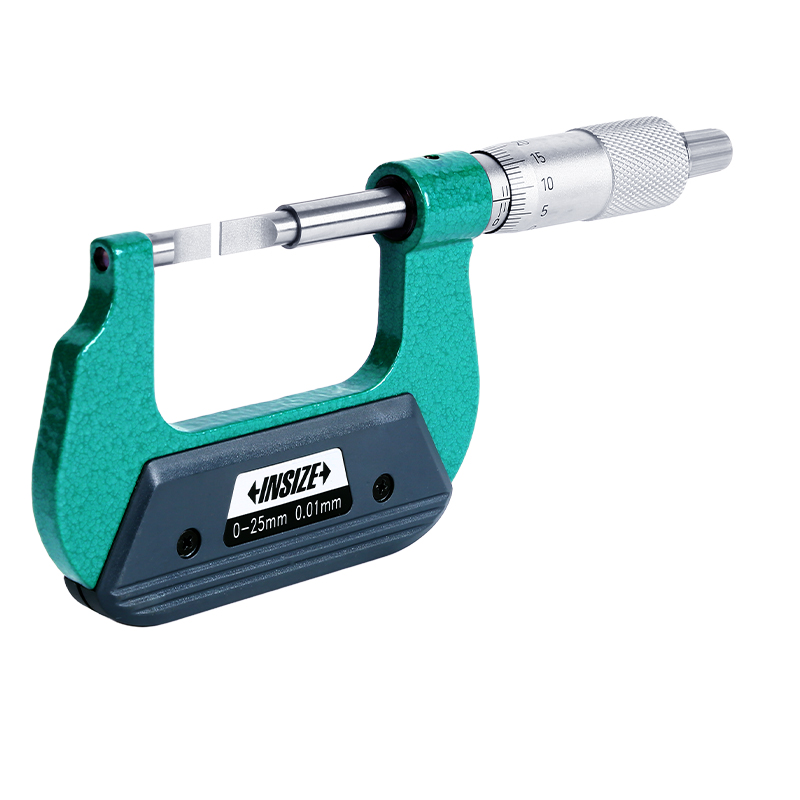

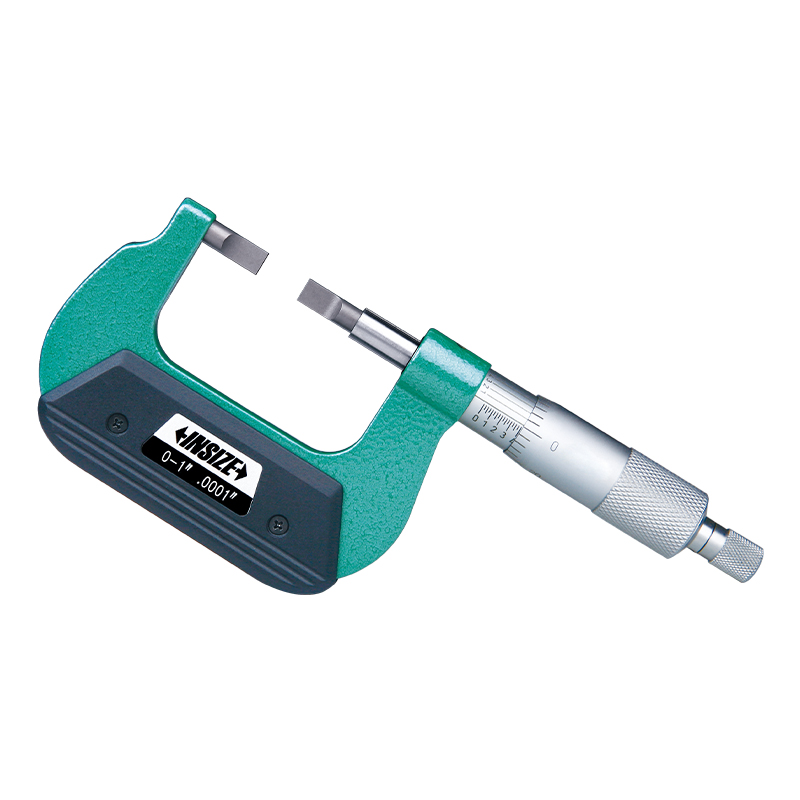

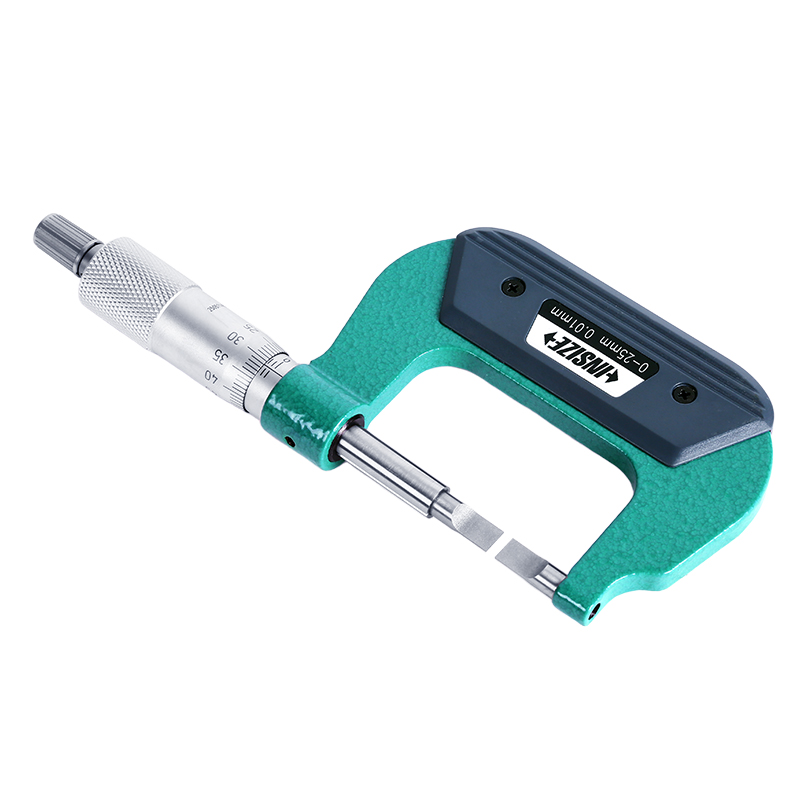

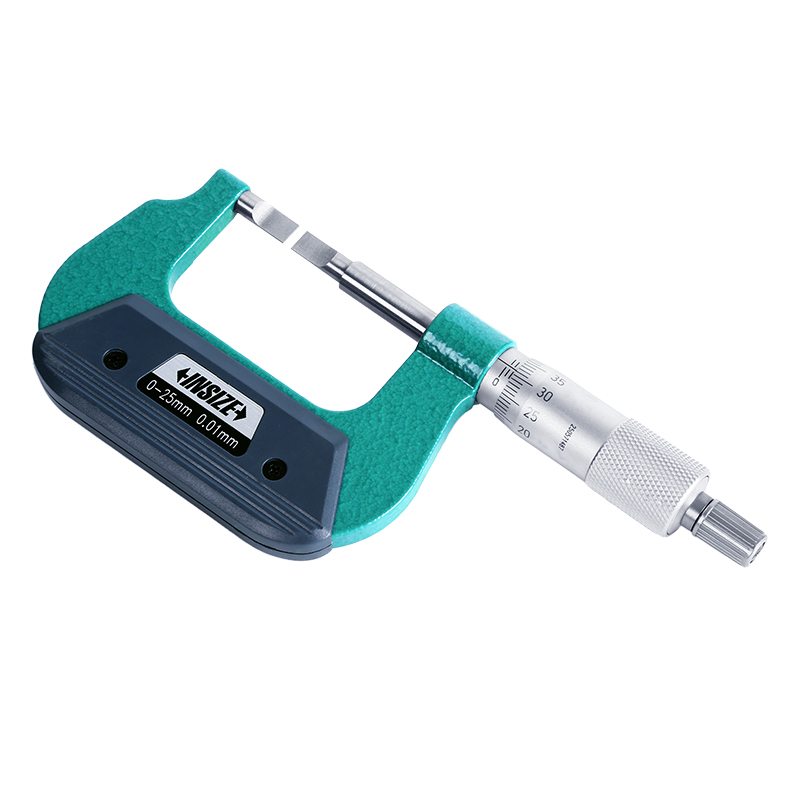

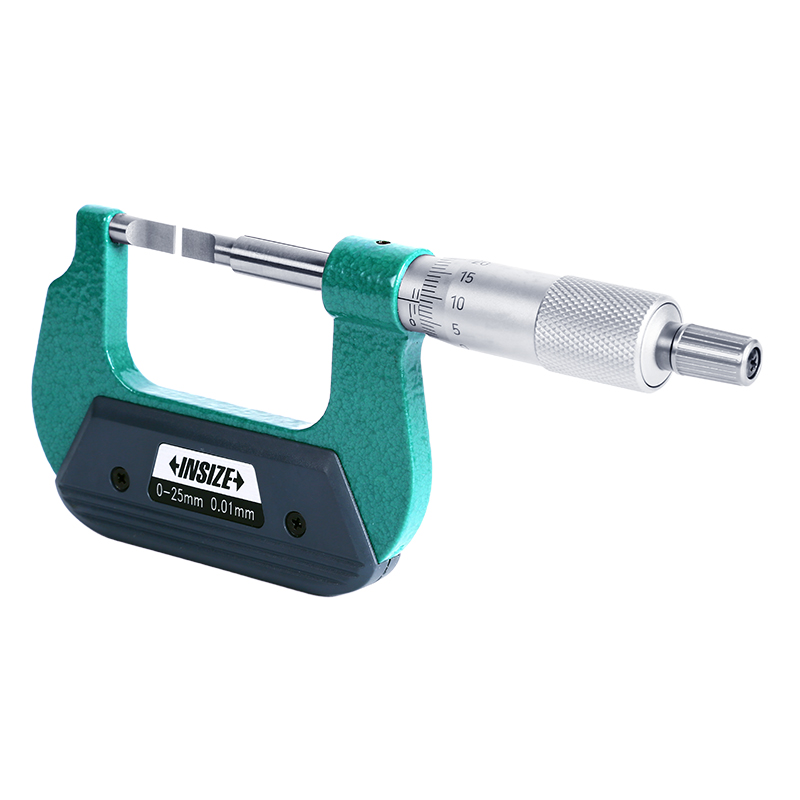

Blade Micrometers
Code: 3232
Meet DIN863-3
Measure the groove diameter of shafts and keyways
Non-rotating spindle
Ratchet stop
Supplied with setting standards (except 0-25mm)
| Code | Type | Range | Accuracy | Graduation |
|---|---|---|---|---|
| 3232-25A | A | 0-25mm | 4μm | 0.01mm |
| 3232-50A | A | 25-50mm | 4μm | 0.01mm |
| 3232-75A | A | 50-75mm | 5μm | 0.01mm |
| 3232-100A | A | 75-100mm | 5μm | 0.01mm |
| 3232-125A | A | 100-125mm | 6μm | 0.01mm |
| 3232-150A | A | 125-150mm | 6μm | 0.01mm |
| 3232-175A | A | 150-175mm | 7μm | 0.01mm |
| 3232-200A | A | 175-200mm | 7μm | 0.01mm |
| 3232-225A | A | 200-225mm | 8μm | 0.01mm |
| 3232-250A | A | 225-250mm | 8μm | 0.01mm |
| 3232-275A | A | 250-275mm | 9μm | 0.01mm |
| 3232-300A | A | 275-300mm | 9μm | 0.01mm |
| 3232-25BA | B | 0-25mm | 4μm | 0.01mm |
| 3232-50BA | B | 25-50mm | 4μm | 0.01mm |
| 3232-75BA | B | 50-75mm | 5μm | 0.01mm |
| 3232-100BA | B | 75-100mm | 5μm | 0.01mm |
| 3232-125BA | B | 100-125mm | 6μm | 0.01mm |
| 3232-150BA | B | 125-150mm | 6μm | 0.01mm |
| 3232-175BA | B | 150-175mm | 7μm | 0.01mm |
| 3232-200BA | B | 175-200mm | 7μm | 0.01mm |
| 3232-225BA | B | 200-225mm | 8μm | 0.01mm |
| 3232-250BA | B | 225-250mm | 8μm | 0.01mm |
| 3232-275BA | B | 250-275mm | 9μm | 0.01mm |
| 3232-300BA | B | 275-300mm | 9μm | 0.01mm |
