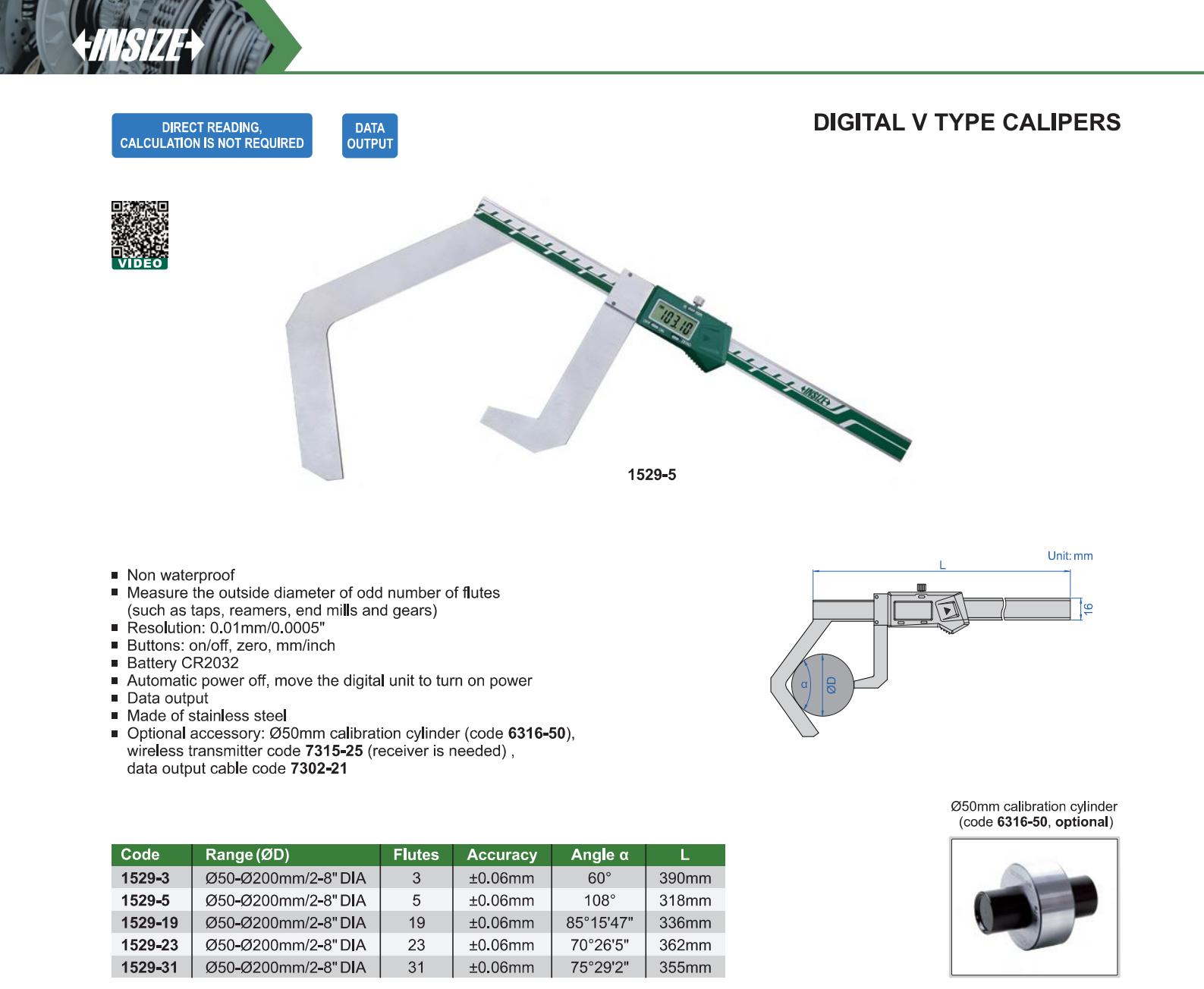

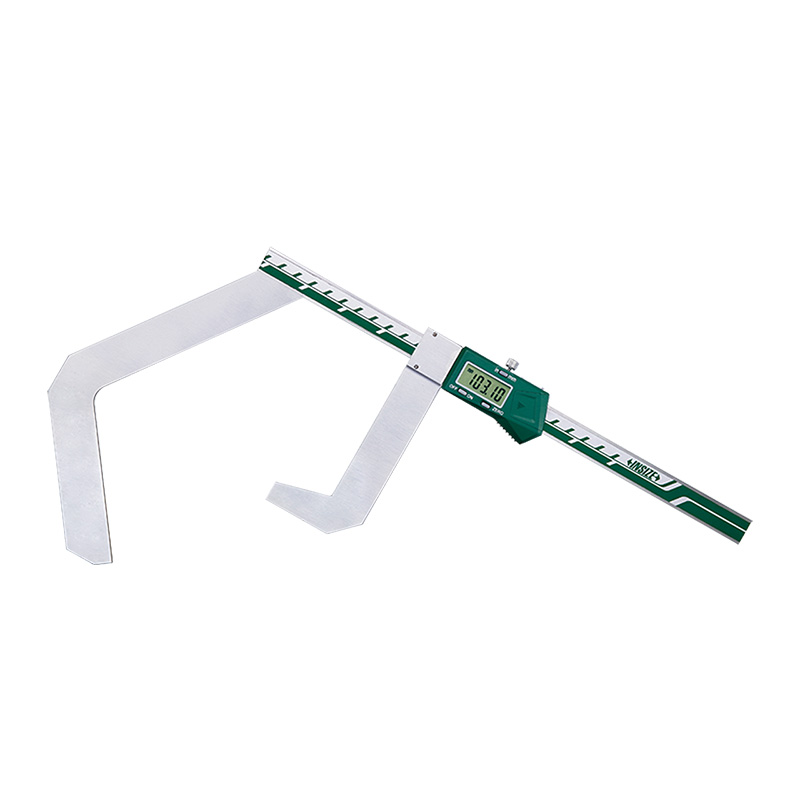

Digital V Type Calipers
Code: 1529
Non waterproof
Measure the outside diameter of odd number of flutes (such as taps, reamers, end mills and gears)
Buttons: on/off, zero, mm/inch
Battery CR2032
Automatic power off, move the digital unit to turn on power
Data output
Made of stainless steel
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 1529-3 | Ø50-Ø200mm/2-8" DIA | ±0.06mm | 0.01mm/0.0005" | with data interface |
| 1529-5 | Ø50-Ø200mm/2-8" DIA | ±0.06mm | 0.01mm/0.0005" | with data interface |
| 1529-19 | Ø50-Ø200mm/2-8" DIA | ±0.06mm | 0.01mm/0.0005" | with data interface |
| 1529-23 | Ø50-Ø200mm/2-8" DIA | ±0.06mm | 0.01mm/0.0005" | with data interface |
| 1529-31 | Ø50-Ø200mm/2-8" DIA | ±0.06mm | 0.01mm/0.0005" | with data interface |
