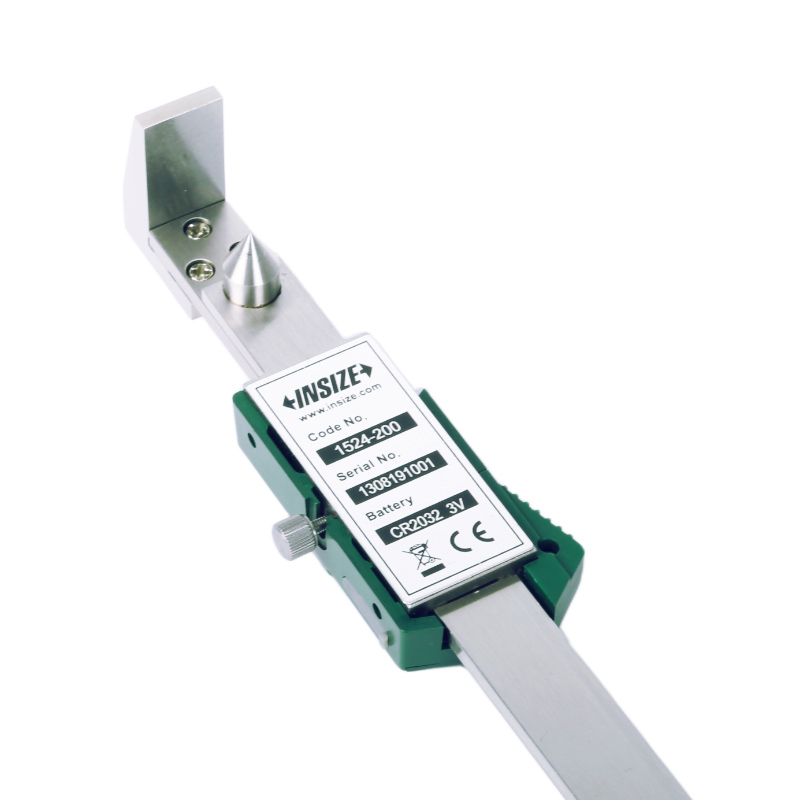

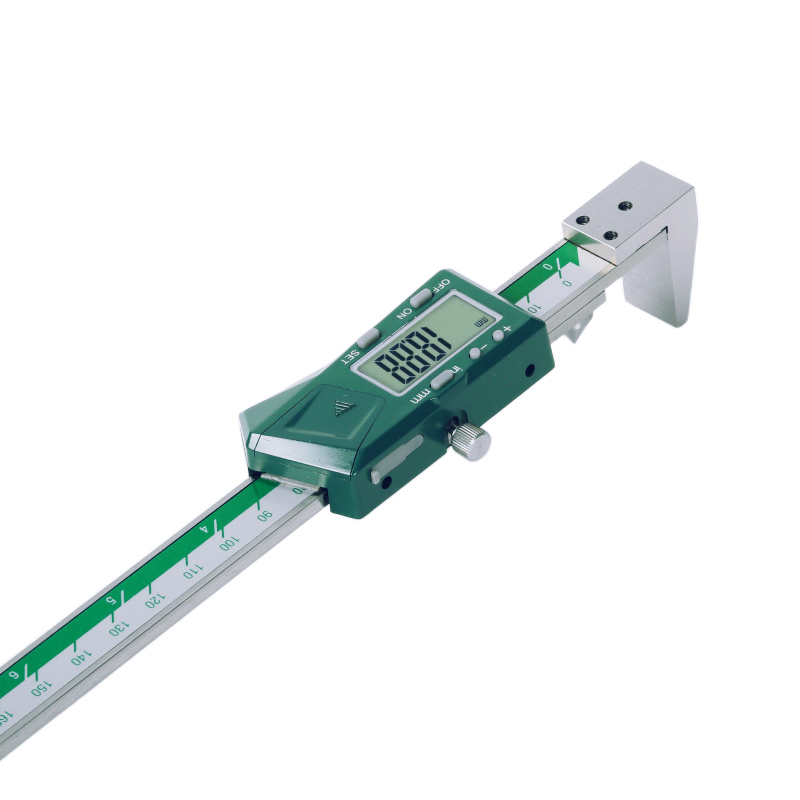

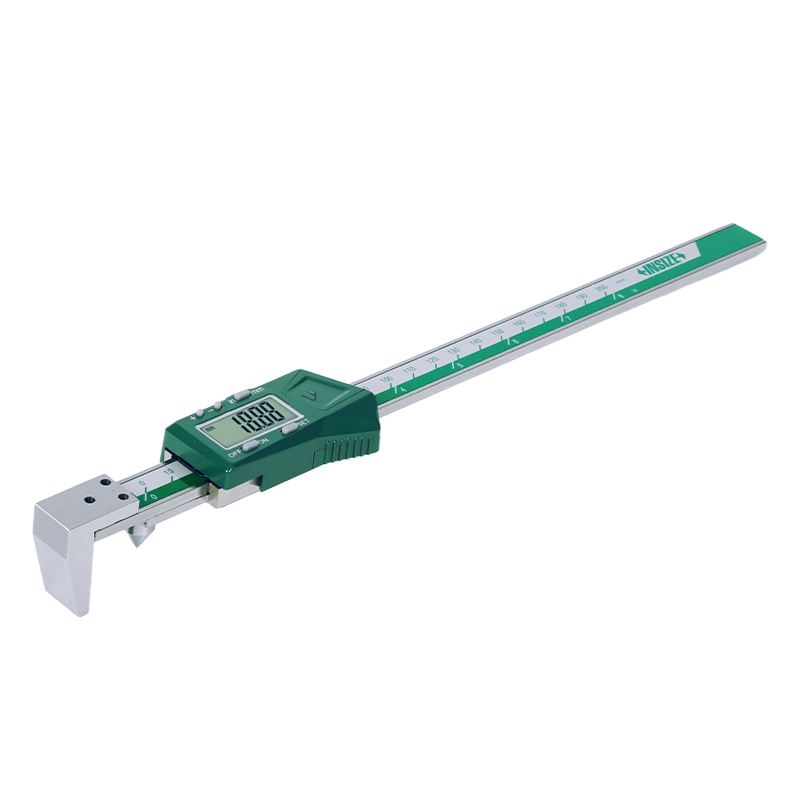

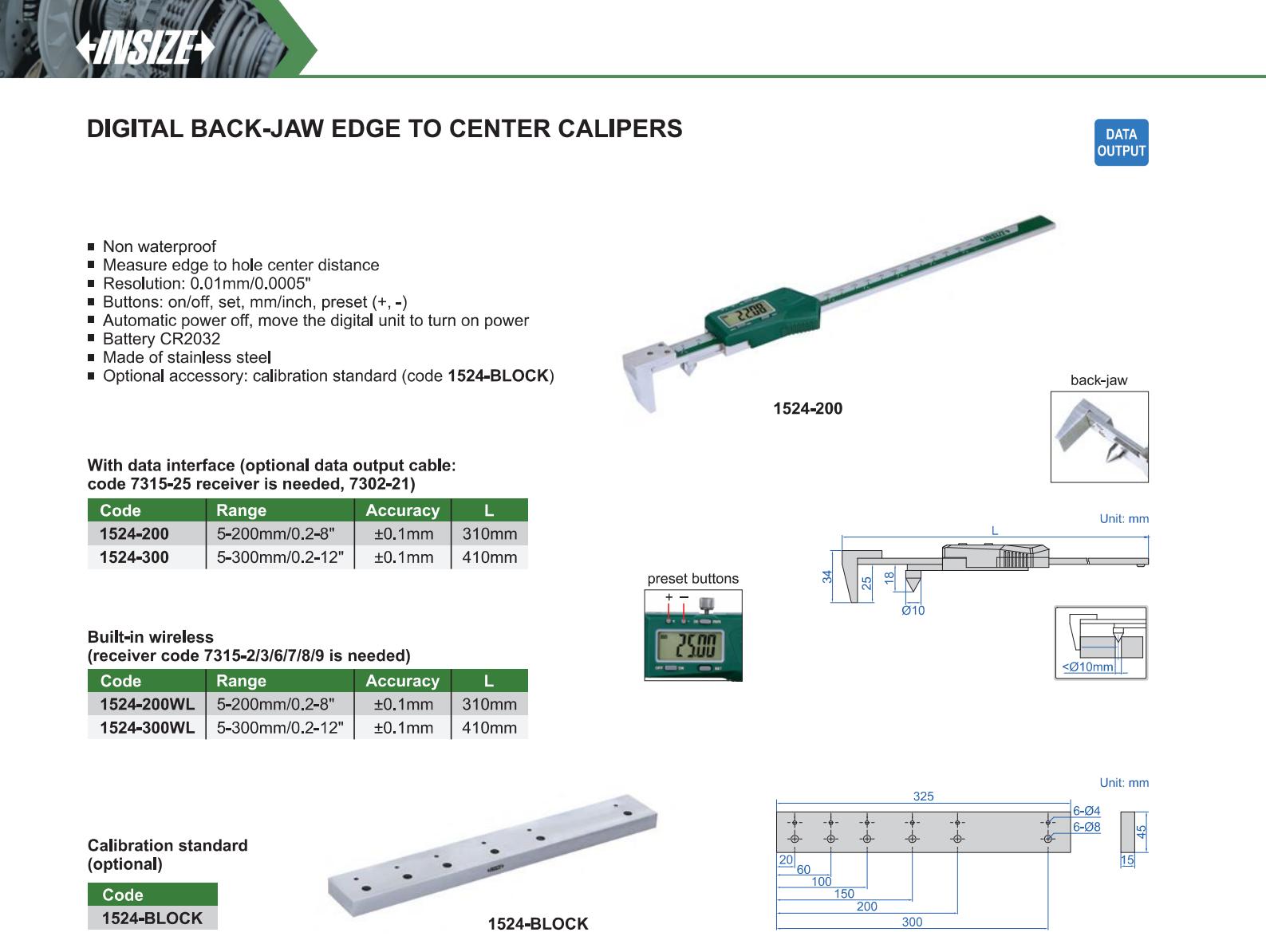

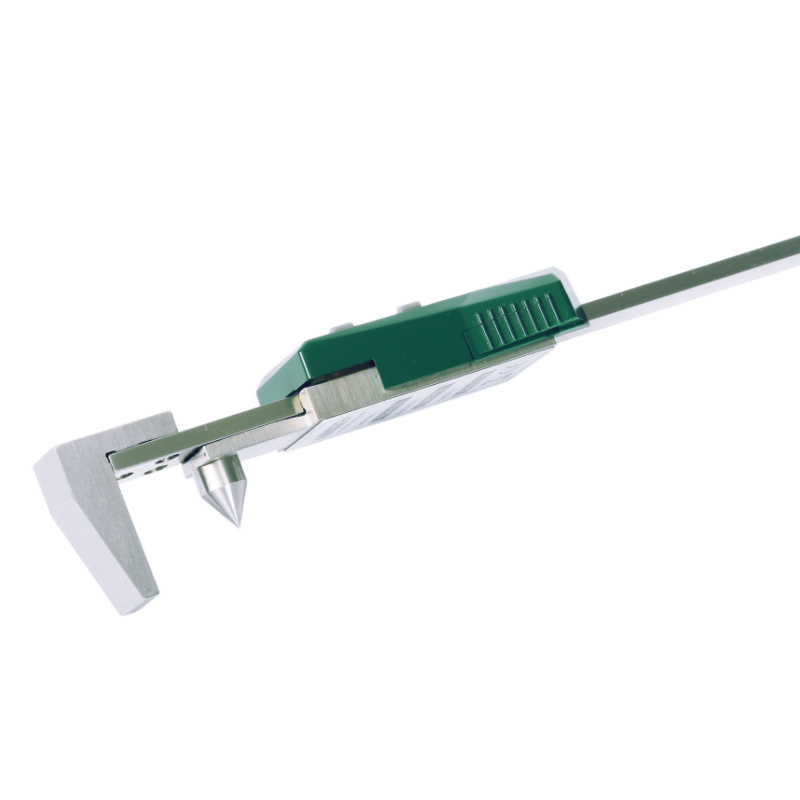

Digital Back-Jaw Edge To Center Calipers
Code: 1524
Non waterproof
Measure edge to hole center distance
Buttons: on/off, set, mm/inch, preset (+, -)
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
Optional accessory: calibration standard (code 1524-BLOCK)
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 1524-200 | 5-200mm/0.2-8" | ±0.1mm | 0.01mm/0.0005" | with data interface |
| 1524-300 | 5-300mm/0.2-12" | ±0.1mm | 0.01mm/0.0005" | with data interface |
| 1524-200WL | 5-200mm/0.2-8" | ±0.1mm | 0.01mm/0.0005" | built-in wireless |
| 1524-300WL | 5-300mm/0.2-12" | ±0.1mm | 0.01mm/0.0005" | built-in wireless |
