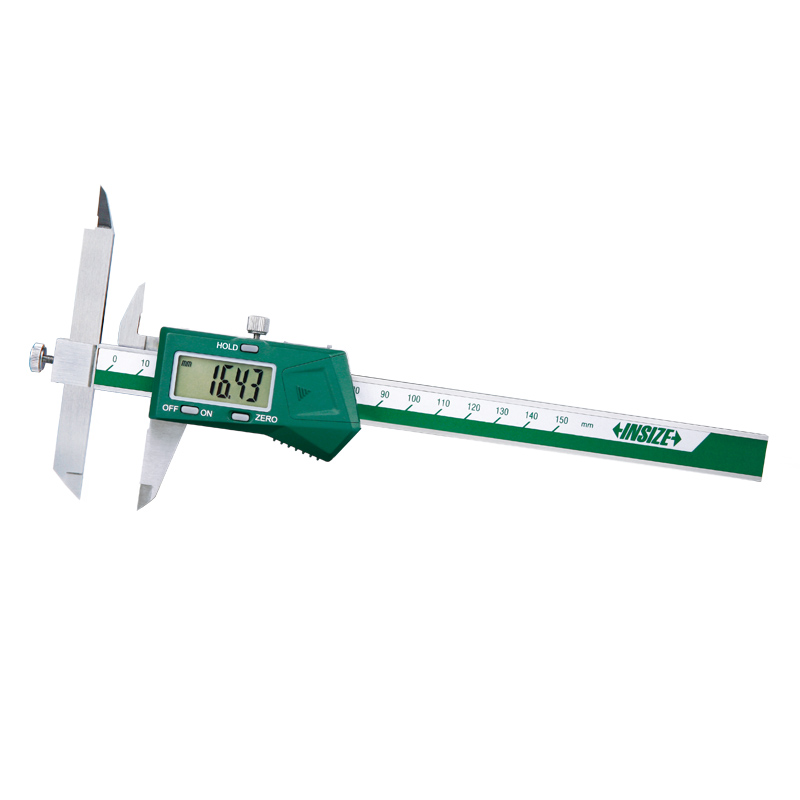

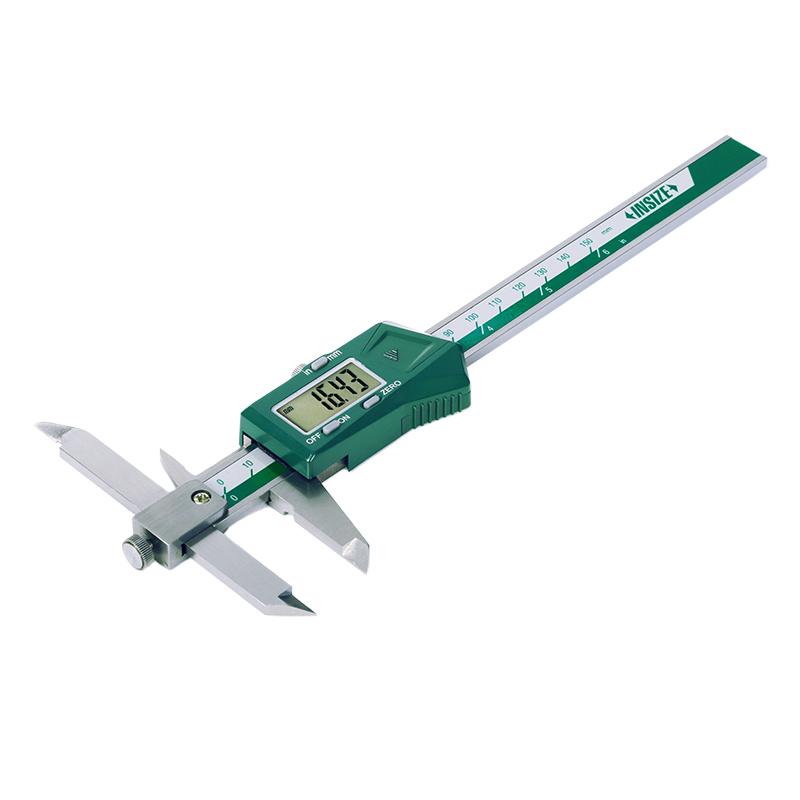

Digital Offset Calipers
Code: 1186
Non waterproof
The left jaw can slide up and down to facilitate measurement of stepped sections
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 1186-150A | 0-150mm/0-6" | ±0.04mm | 0.01mm/0.0005" | with data interface |
| 1186-200A | 0-200mm/0-8" | ±0.04mm | 0.01mm/0.0005" | with data interface |
| 1186-300A | 0-300mm/0-12" | ±0.05mm | 0.01mm/0.0005" | with data interface |
| 1186-150AWL | 0-150mm/0-6" | ±0.04mm | 0.01mm/0.0005" | built-in wireless |
| 1186-200AWL | 0-200mm/0-8" | ±0.04mm | 0.01mm/0.0005" | built-in wireless |
| 1186-300AWL | 0-300mm/0-12" | ±0.05mm | 0.01mm/0.0005" | built-in wireless |
