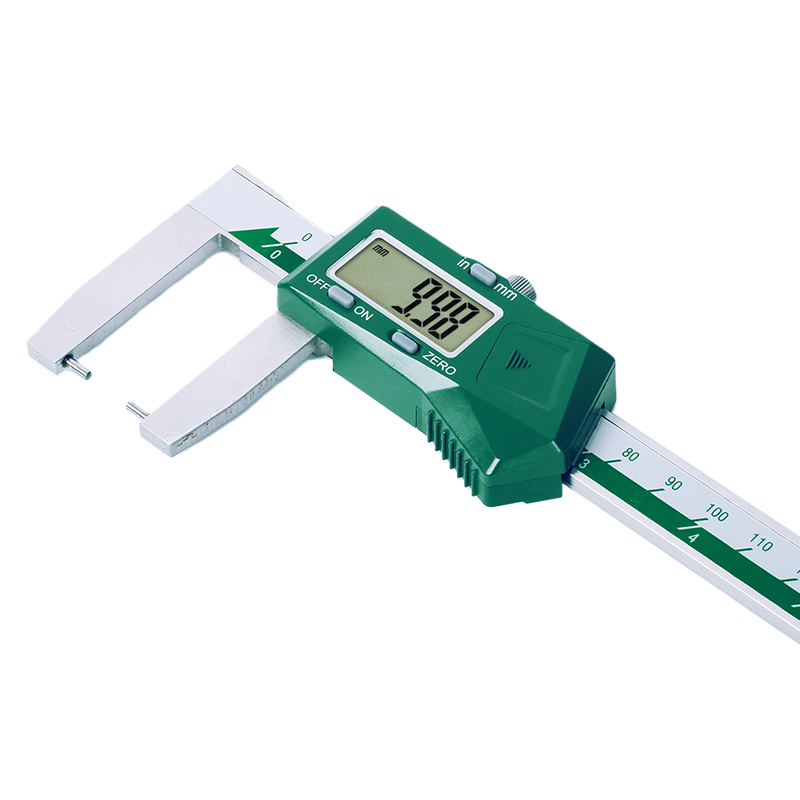

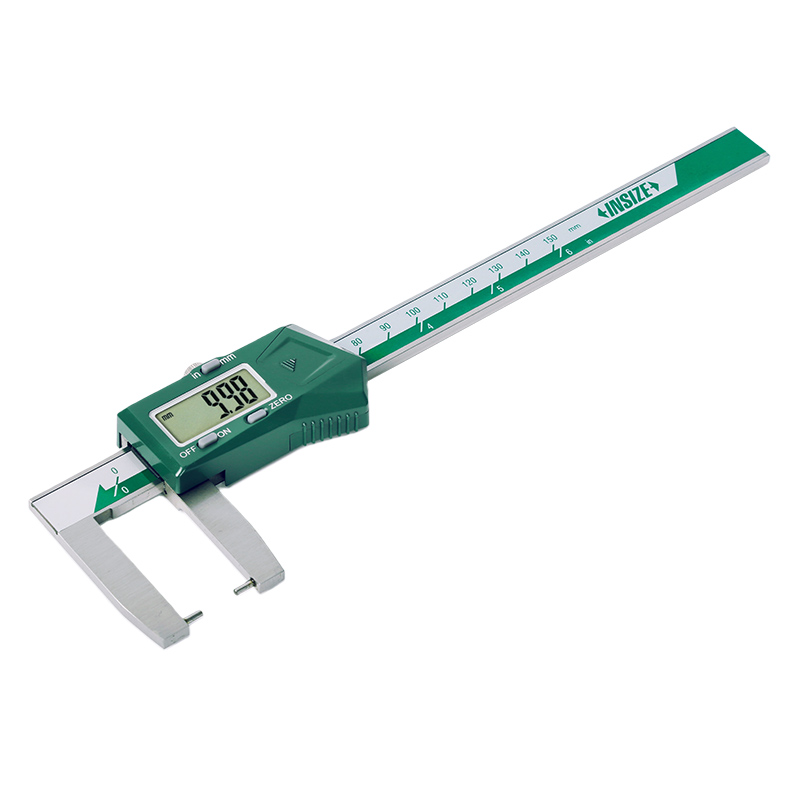

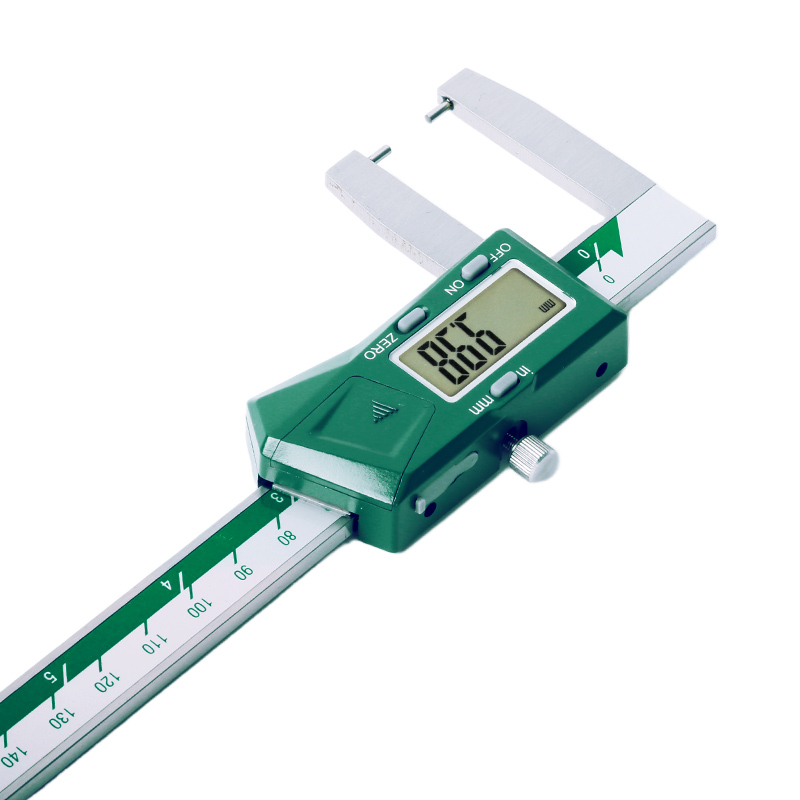

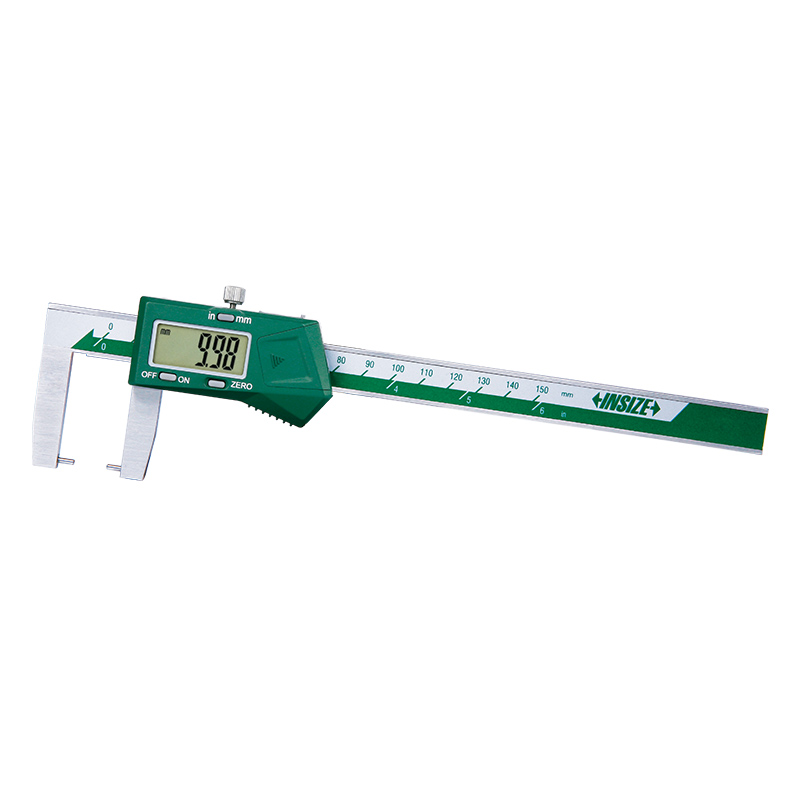

Digital Outside Point Calipers
Code: 1185
Non waterproof
Measure wall thickness inside bores and recesses
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
Optional accessory: depth stop (code 6143)
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 1185-150A | 0-150mm/0-6" | ±0.04mm | 0.01mm/0.0005" | with data interface |
| 1185-200A | 0-200mm/0-8" | ±0.05mm | 0.01mm/0.0005" | with data interface |
| 1185-300A | 0-300mm/0-12" | ±0.06mm | 0.01mm/0.0005" | with data interface |
| 1185-150AWL | 0-150mm/0-6" | ±0.04mm | 0.01mm/0.0005" | built-in wireless |
| 1185-200AWL | 0-200mm/0-8" | ±0.05mm | 0.01mm/0.0005" | built-in wireless |
| 1185-300AWL | 0-300mm/0-12" | ±0.06mm | 0.01mm/0.0005" | built-in wireless |

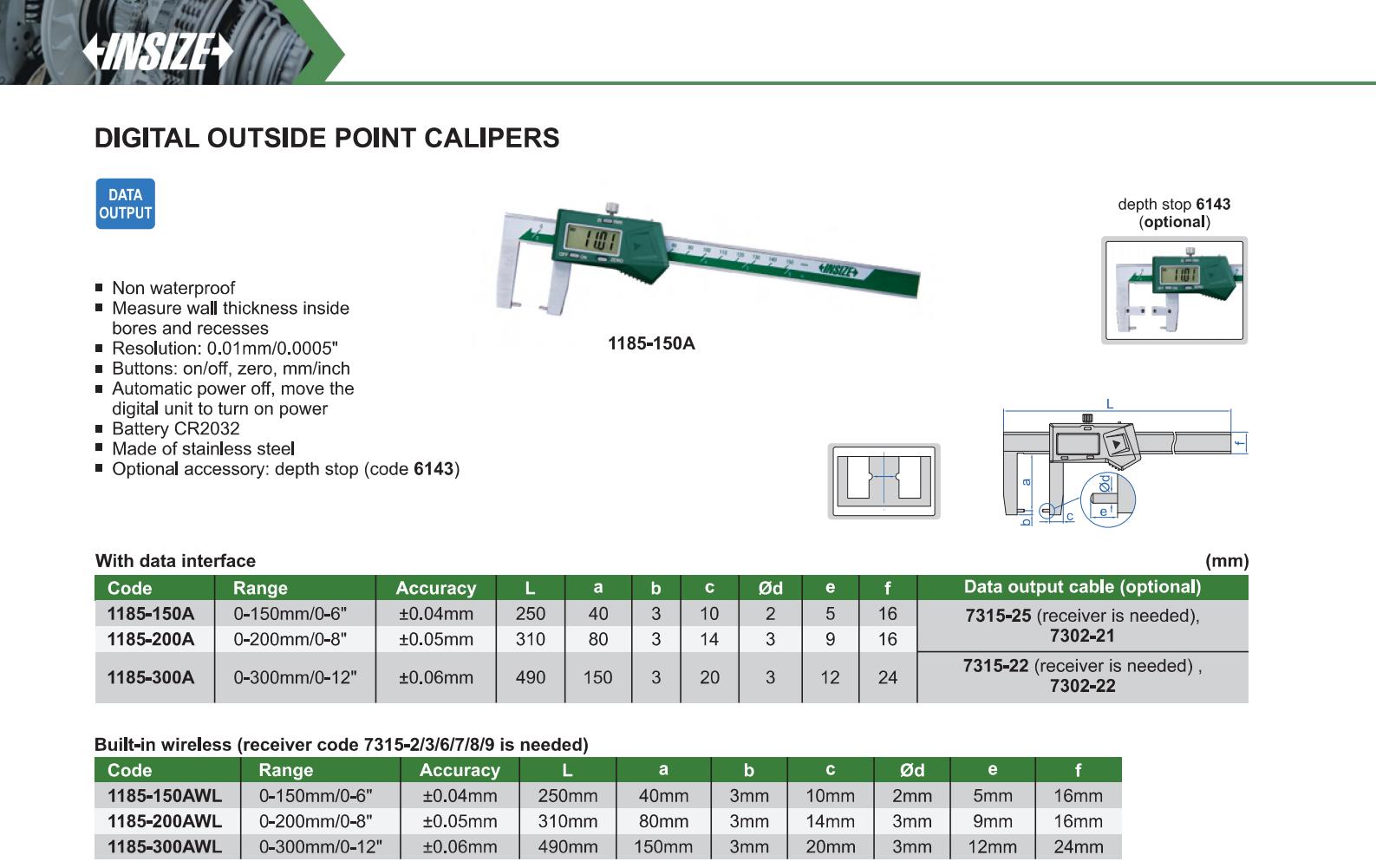

View the complete
