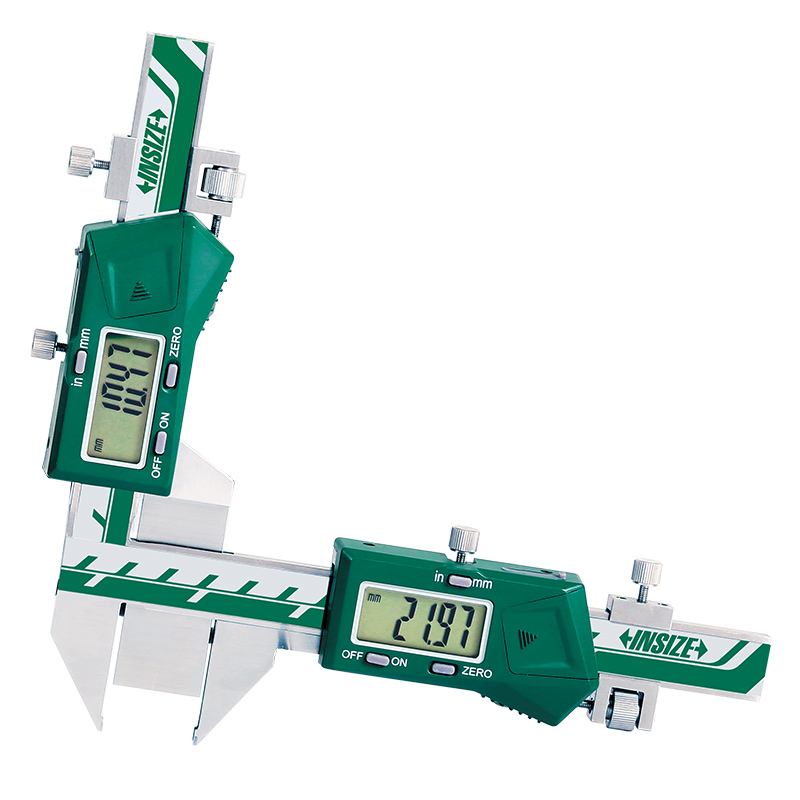

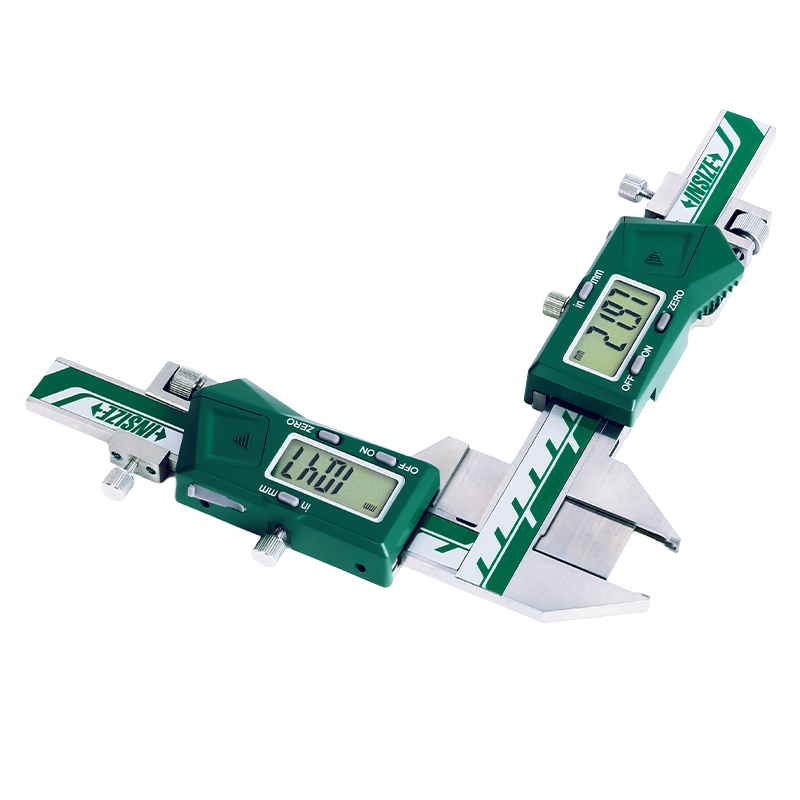

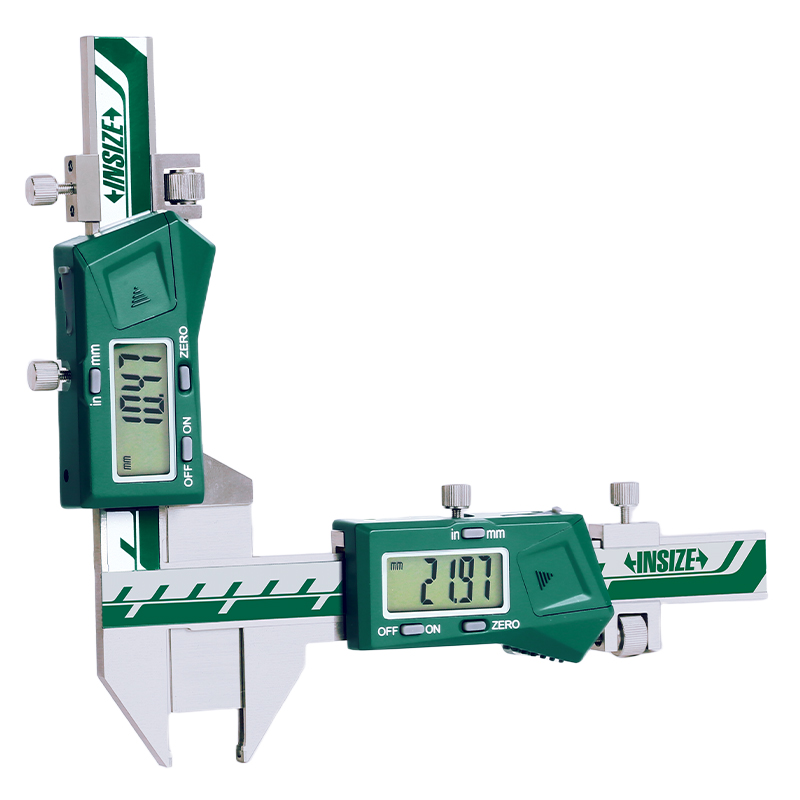

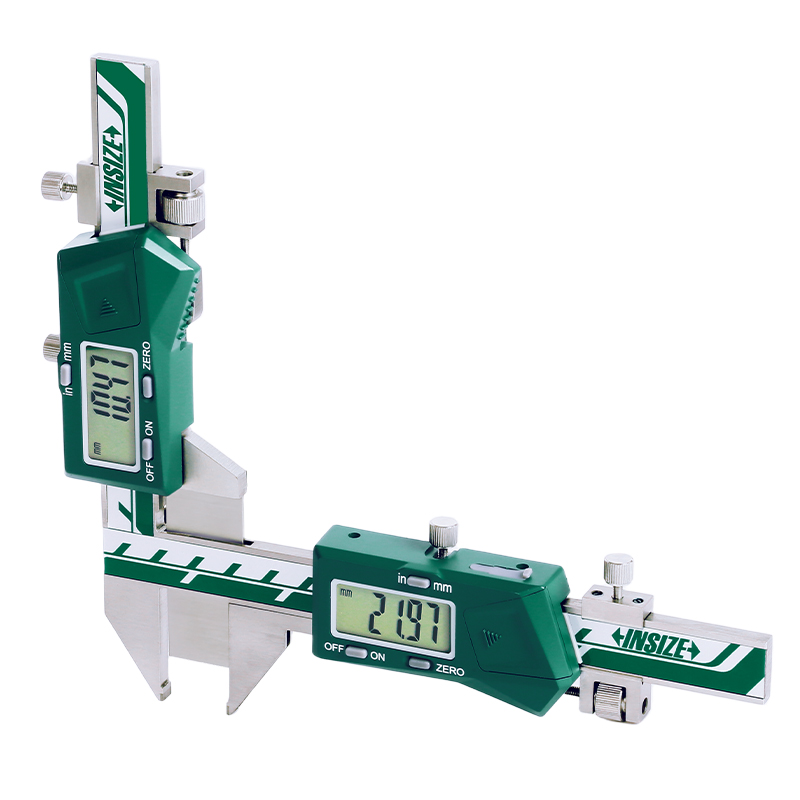

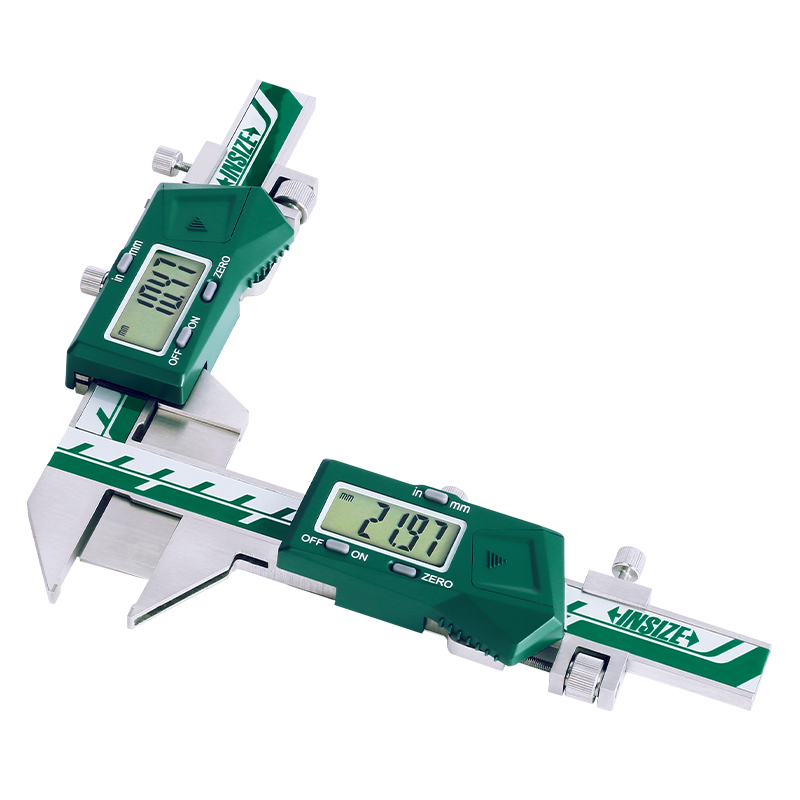

Digital Gear Tooth Calipers
Code: 1181
Non waterproof
Carbide tips
Measure the tooth thickness by positioning the tooth height (for tooth height>1mm)
Buttons: zero, on/off, mm/inch
Automatic power off, move the digital unit to turn on power
Data output
Battery CR2032
Made of stainless steel

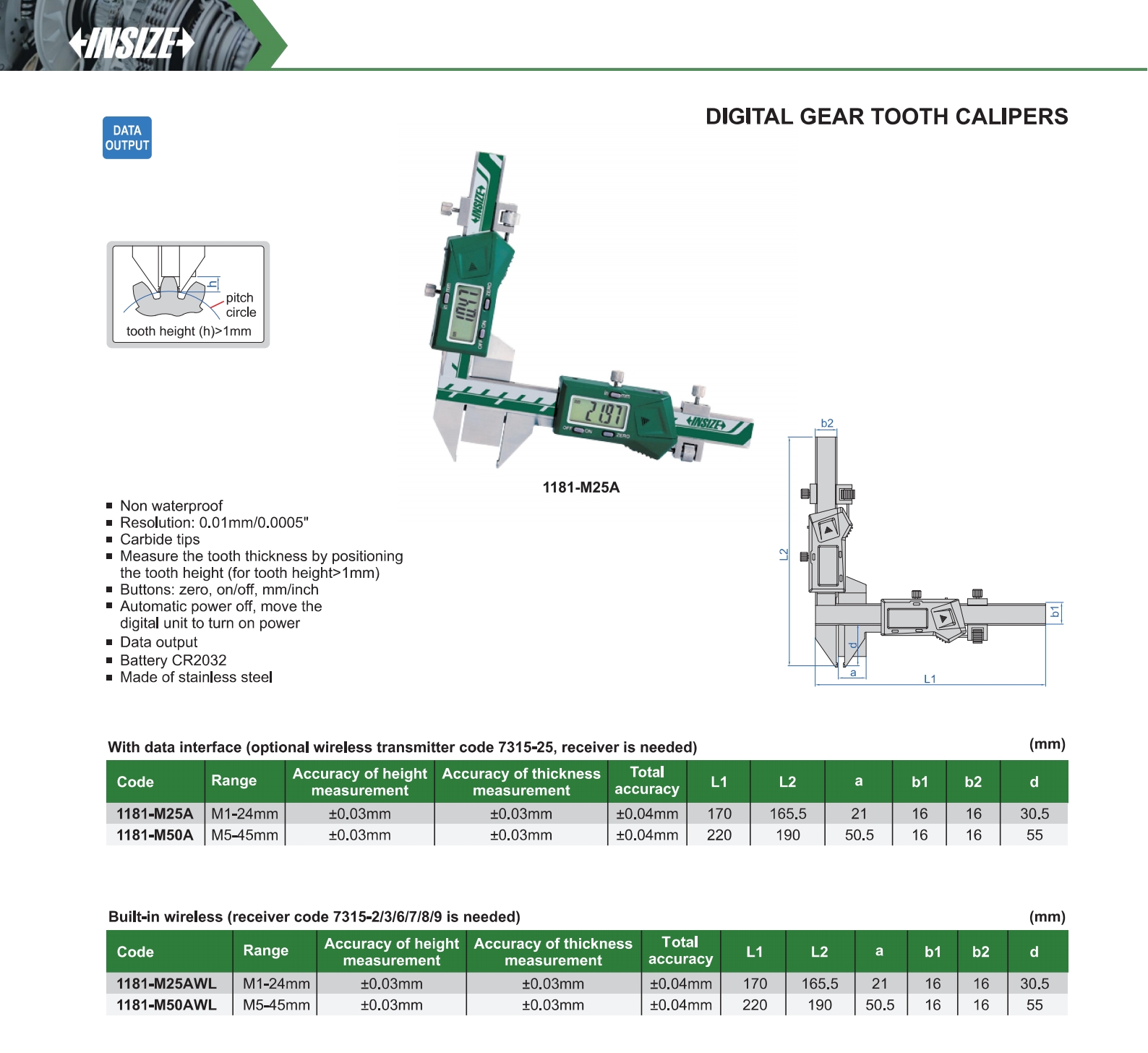

| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 1181-M25A | M1-24mm | ±0.03mm | 0.01mm/0.0005" | with data interface |
| 1181-M50A | M5-45mm | ±0.03mm | 0.01mm/0.0005" | with data interface |
| 1181-M25AWL | M1-24mm | ±0.03mm | 0.01mm/0.0005" | built-in wireless |
| 1181-M50AWL | M5-45mm | ±0.03mm | 0.01mm/0.0005" | built-in wireless |
