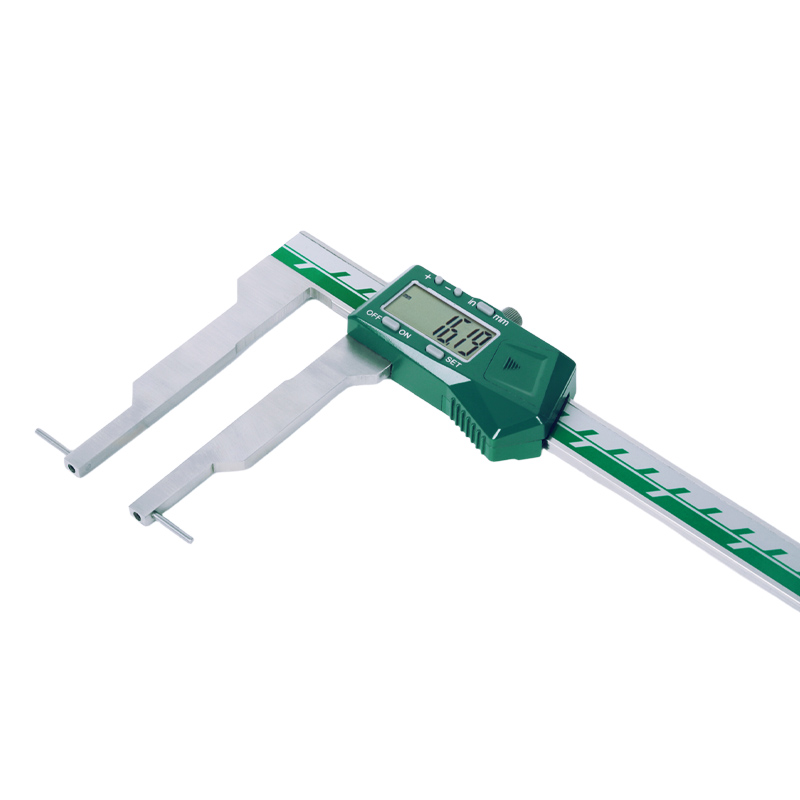

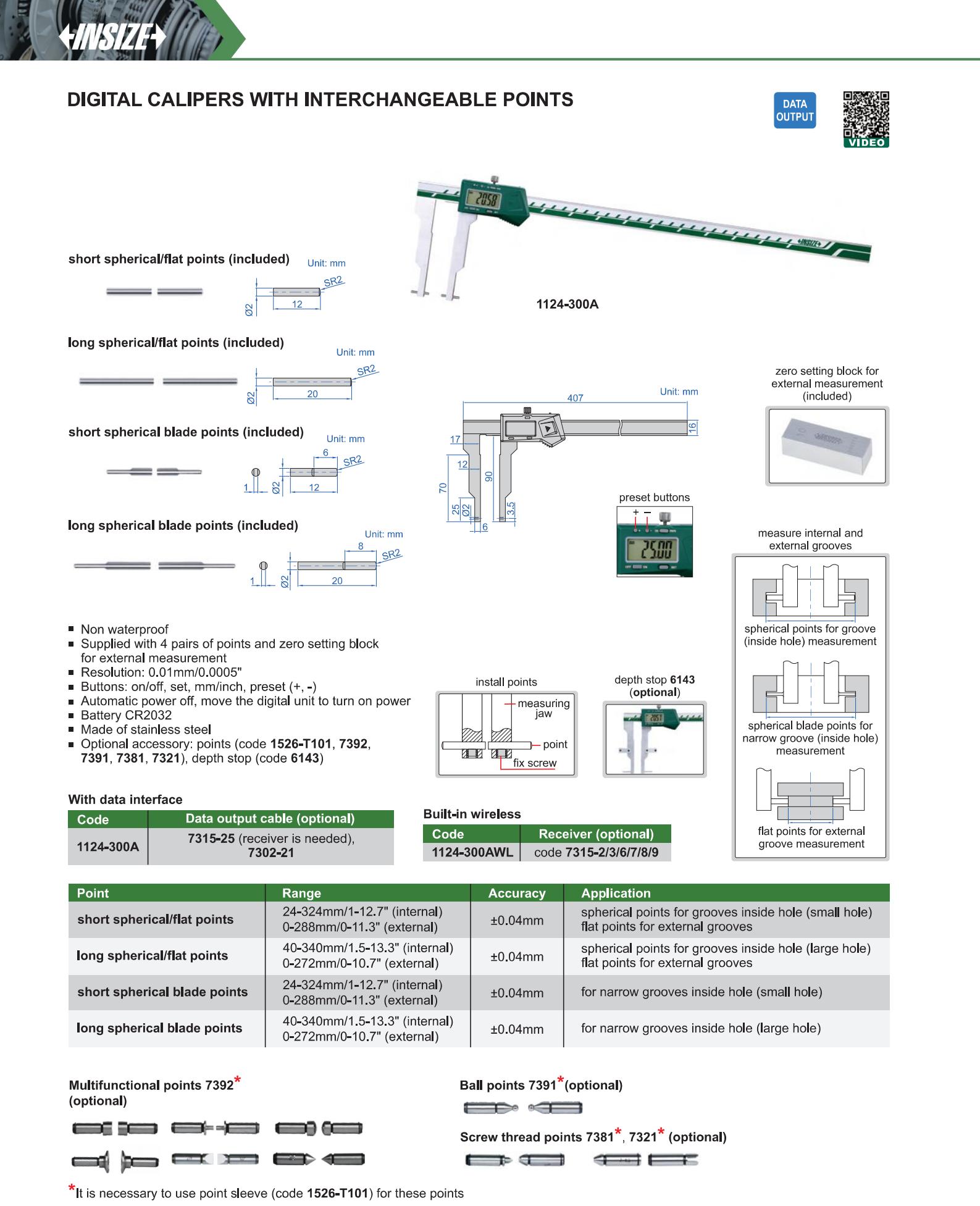

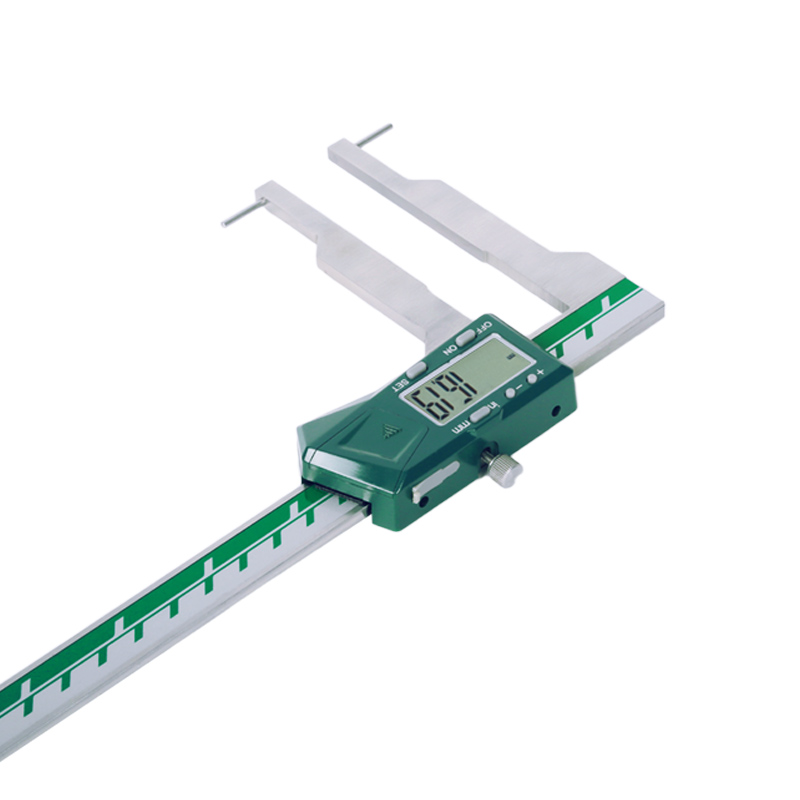

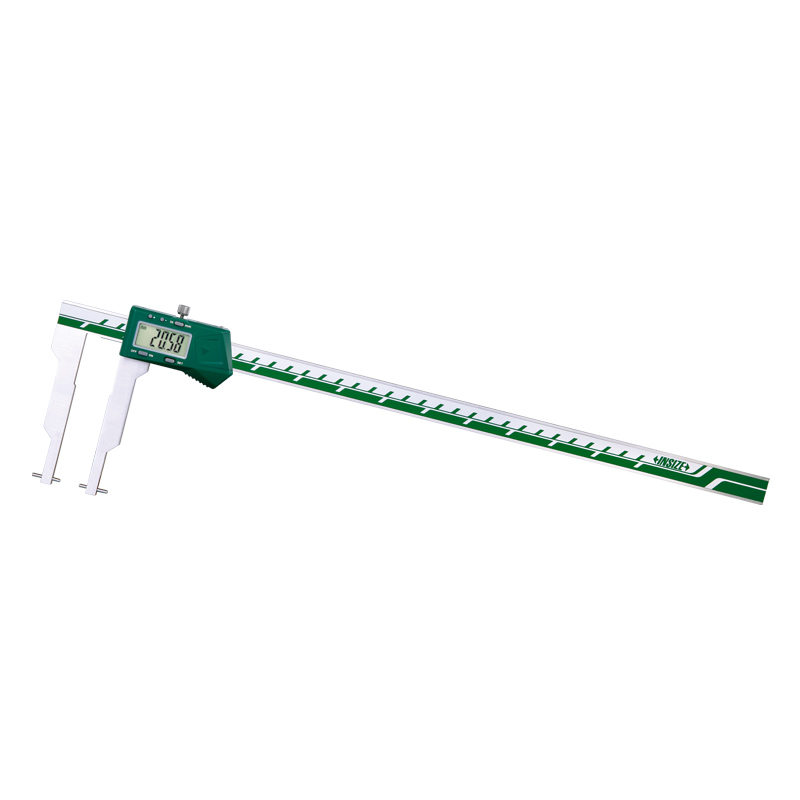

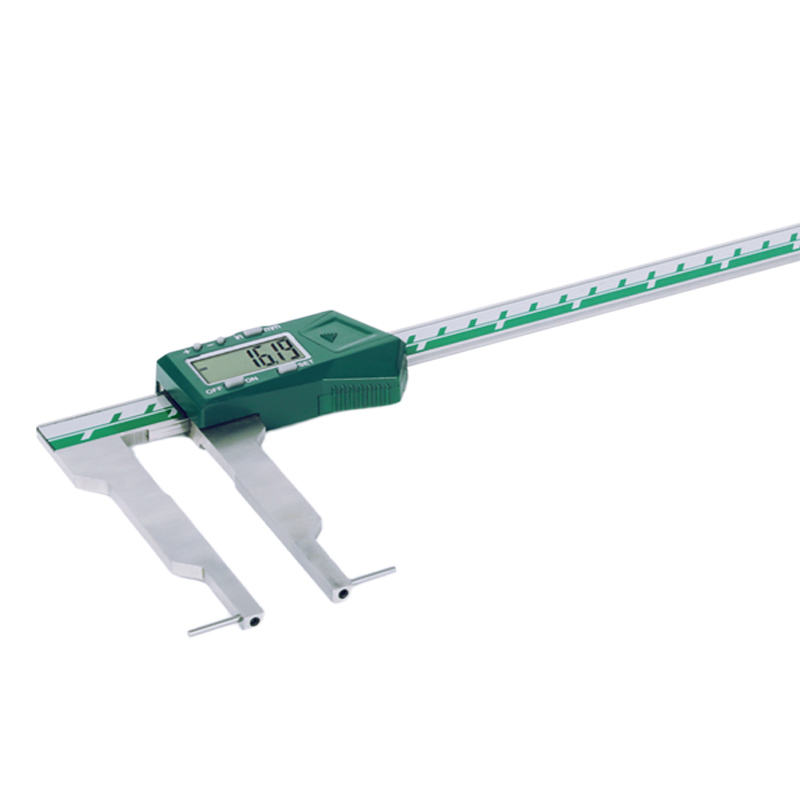

Digital Calipers With Interchangeable Points
Code: 1124
Non waterproof
Supplied with 4 pairs of points and zero setting block for external measurement
Buttons: on/off, set, mm/inch, preset (+, -)
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
| Code | Range | Accuracy | Resolution | Data output | Point |
|---|---|---|---|---|---|
| 1124-300A | 24-324mm(internal), 0-288mm (external) | ±0.04mm | 0.01mm/0.0005" | with data interface | short spherical/flat points |
| 1124-300A | 40-340mm (internal), 0-272mm (external) | ±0.04mm | 0.01mm/0.0005" | with data interface | long spherical/flat points |
| 1124-300A | 24-324mm(internal), 0-288mm (external) | ±0.04mm | 0.01mm/0.0005" | with data interface | short spherical blade points |
| 1124-300A | 40-340mm (internal), 0-272mm (external) | ±0.04mm | 0.01mm/0.0005" | with data interface | long spherical blade points |
| 1124-300AWL | 24-324mm(internal), 0-288mm (external) | ±0.04mm | 0.01mm/0.0005" | built-in wireless | short spherical/flat points |
| 1124-300AWL | 40-340mm (internal), 0-272mm (external) | ±0.04mm | 0.01mm/0.0005" | built-in wireless | long spherical/flat points |
| 1124-300AWL | 24-324mm(internal), 0-288mm (external) | ±0.04mm | 0.01mm/0.0005" | built-in wireless | short spherical blade points |
| 1124-300AWL | 40-340mm (internal), 0-272mm (external) | ±0.04mm | 0.01mm/0.0005" | built-in wireless | long spherical blade points |
