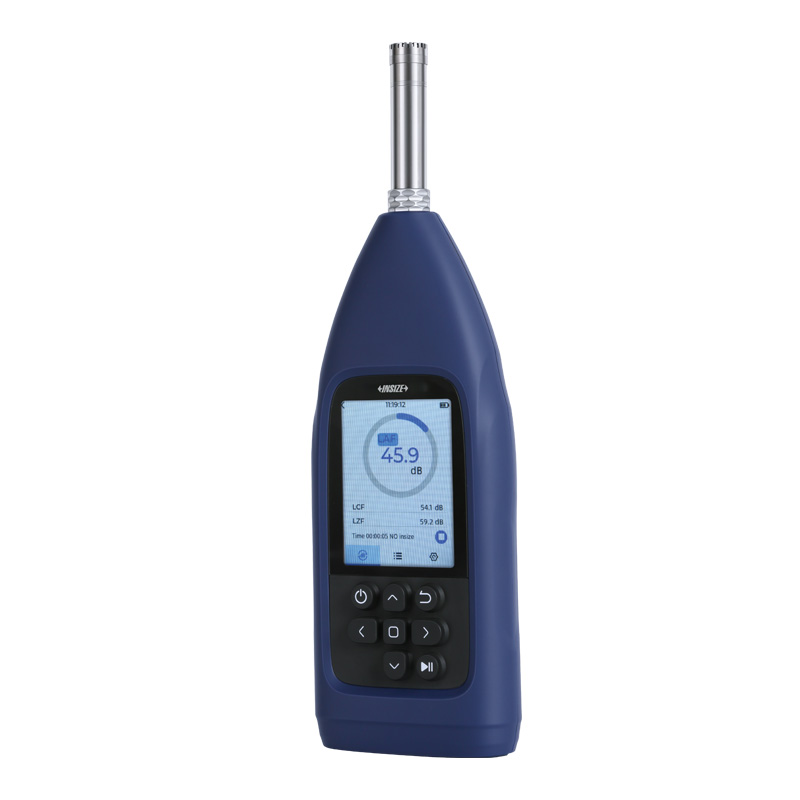

Sound Level Meters (Advanced Type)
Code: 0014
Parallel time and frequency weighting
Single range without shifting
AC/DC output, WIFI time sync, WAV audio recording, SD card data storage (CSV format)
Bluetooth printer support for on-demand test data printout (printer optional)
Languages: English, Chinese, Dutch, Spanish, Portuguese, Korean
| Code | Accuracy | Frequency | Frequency weighting | Data output |
|---|---|---|---|---|
| 0014-FA24 | IEC 61672-1:2013 class 2 | 20Hz~12.5kHz | A, C, Z | 3.5mm audio, DC, USB TYPE-C, RS232, BT, WIFI |
| 0014-FB24 | IEC 61672-1:2013 class 2 | 20Hz~12.5kHz | A, C, Z | 3.5mm audio, DC, USB TYPE-C, RS232, BT, WIFI |
| 0014-FC24 | IEC 61672-1:2013 class 2 | 20Hz~12.5kHz | A, C, Z | 3.5mm audio, DC, USB TYPE-C, RS232, BT, WIFI |
| 0014-FD24 | IEC 61672-1:2013 class 2 | 20Hz~12.5kHz | A, C, Z | 3.5mm audio, DC, USB TYPE-C, RS232, BT, WIFI |
| 0014-FE24 | IEC 61672-1:2013 class 2 | 20Hz~12.5kHz | A, C, Z | 3.5mm audio, DC, USB TYPE-C, RS232, BT, WIFI |
| 0014-FA22 | IEC 61672-1:2013 class 1 | 10Hz~20kHz | A, C, Z | 3.5mm audio, DC, USB TYPE-C, RS232, BT, WIFI |
| 0014-FB22 | IEC 61672-1:2013 class 1 | 10Hz~20kHz | A, C, Z | 3.5mm audio, DC, USB TYPE-C, RS232, BT, WIFI |
| 0014-FC22 | IEC 61672-1:2013 class 1 | 10Hz~20kHz | A, C, Z | 3.5mm audio, DC, USB TYPE-C, RS232, BT, WIFI |
| 0014-FD22 | IEC 61672-1:2013 class 1 | 10Hz~20kHz | A, C, Z | 3.5mm audio, DC, USB TYPE-C, RS232, BT, WIFI |
| 0014-FE22 | IEC 61672-1:2013 class 1 | 10Hz~20kHz | A, C, Z | 3.5mm audio, DC, USB TYPE-C, RS232, BT, WIFI |
