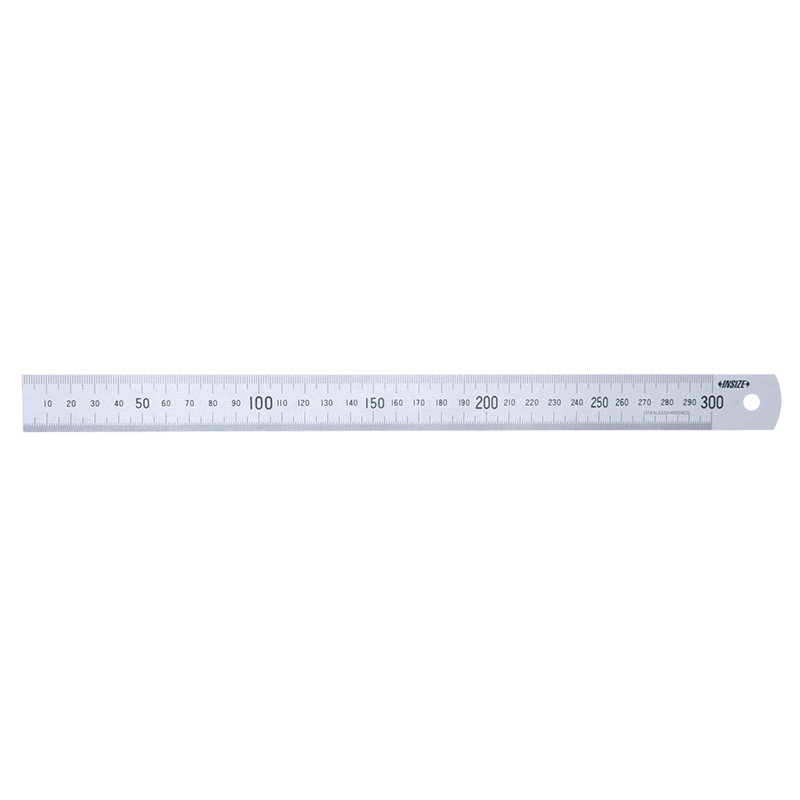

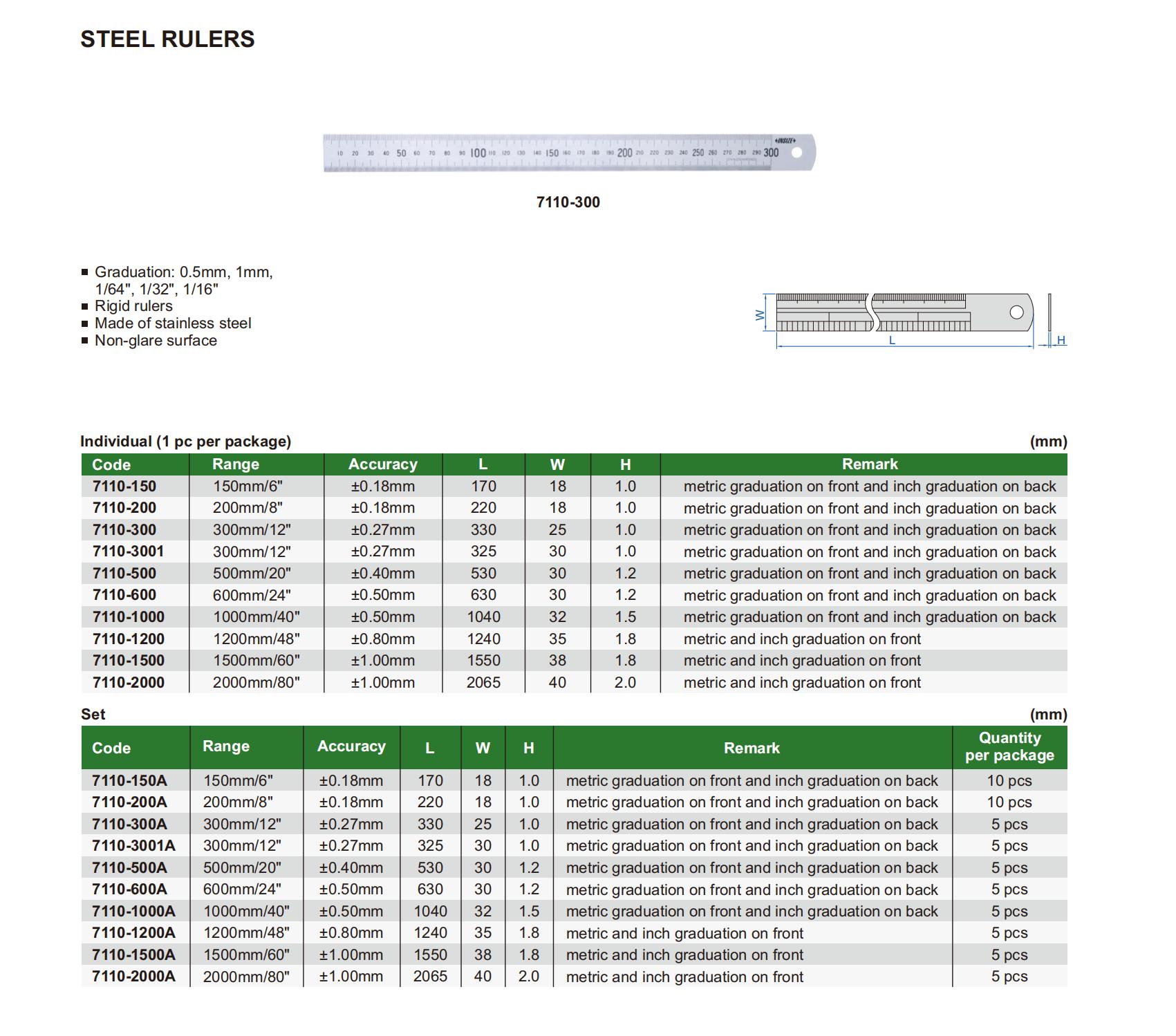

Steel Rulers
Code: 7110
Graduation: 0.5mm, 1mm,
1/64", 1/32", 1/16"
Rigid rulers
Made of stainless steel
Non-glare surface
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 7110-150 | 150mm/6" | ±0.18mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-200 | 200mm/8" | ±0.18mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-300 | 300mm/12" | ±0.27mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-3001 | 300mm/12" | ±0.27mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-500 | 500mm/20" | ±0.40mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-600 | 600mm/24" | ±0.50mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-1000 | 1000mm/40" | ±0.50mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-1200 | 1200mm/48" | ±0.80mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-1500 | 1500mm/60" | ±1.00mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-2000 | 2000mm/80" | ±1.00mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-150A | 150mm/6" | ±0.18mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-200A | 200mm/8" | ±0.18mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-300A | 300mm/12" | ±0.27mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-3001A | 300mm/12" | ±0.27mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-500A | 500mm/20" | ±0.40mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-600A | 600mm/24" | ±0.50mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-1000A | 1000mm/40" | ±0.50mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-1200A | 1200mm/48" | ±0.80mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-1500A | 1500mm/60" | ±1.00mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-2000A | 2000mm/80" | ±1.00mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
