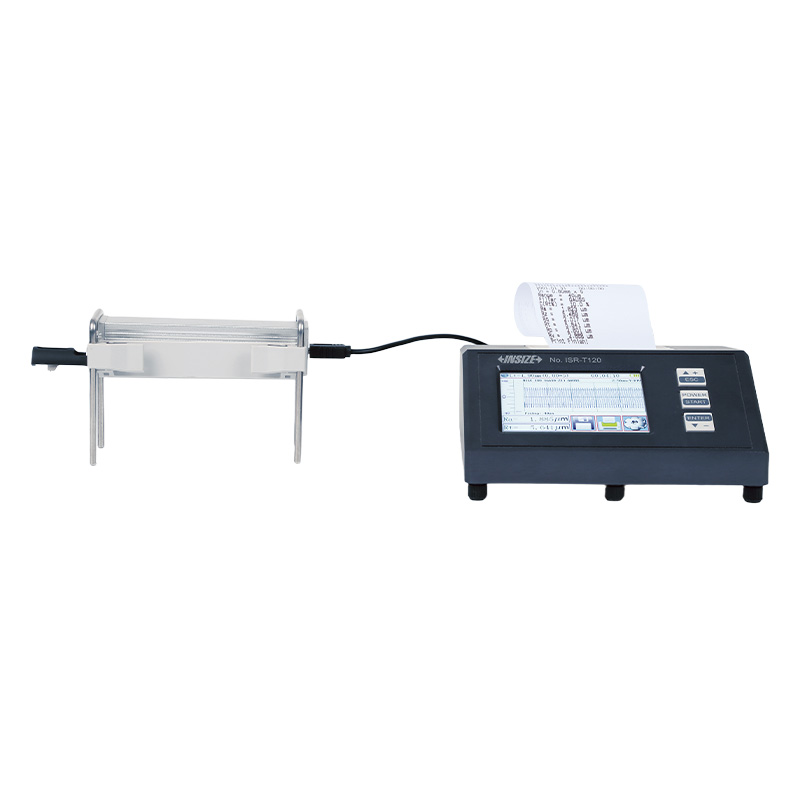

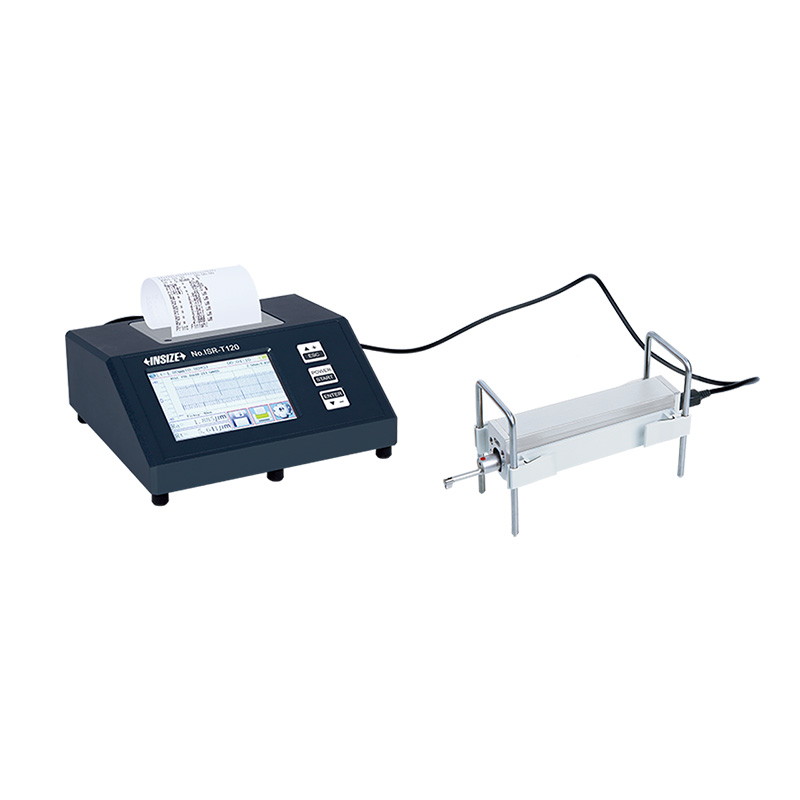

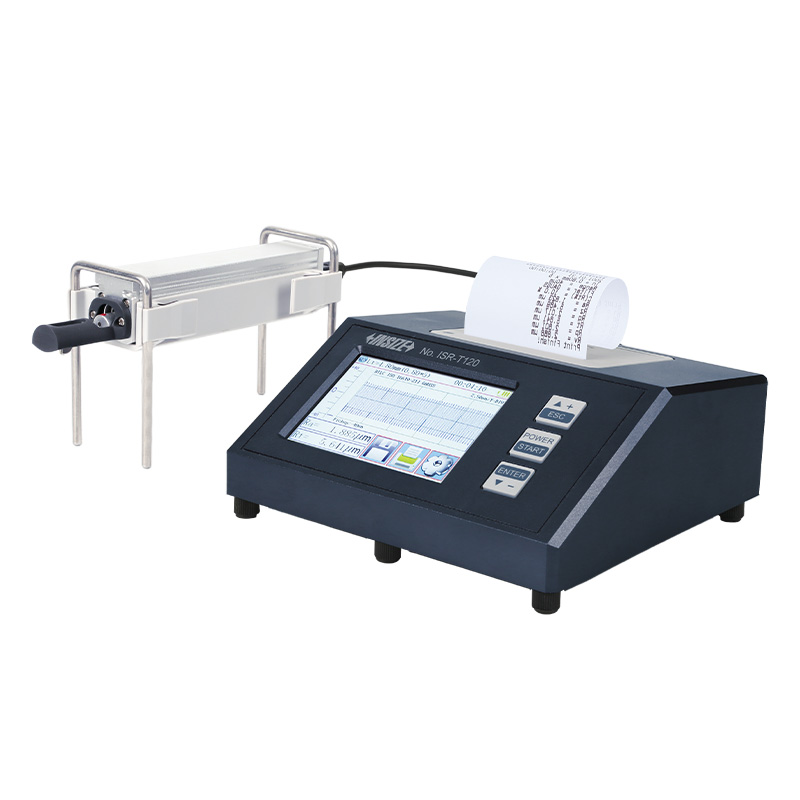

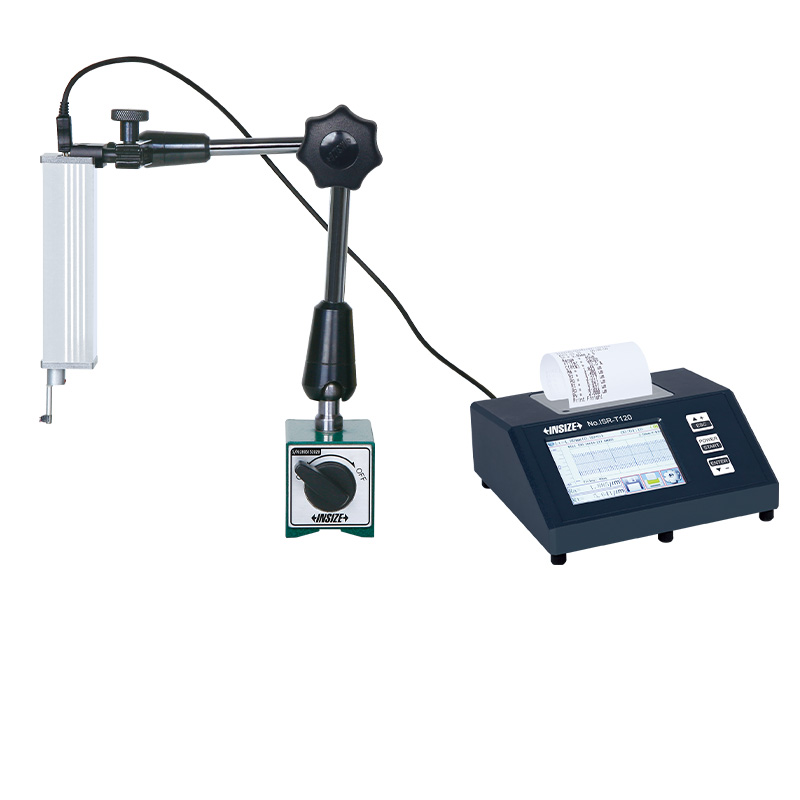

Roughness Tester
Code: ISR-T120
Roughness tester can be operated by mobile phones (only Android system) or computers
Data can be sent to Excel by connecting to computers via bluetooth or SPC cable
Built-in printer can print measurement results and graphics
22 roughness parameters
Meet ISO, DIN, ANSI, JIS standards
Display roughness values, profile and curve
Memory of maximum 100 data and waveform
| Code | Range | Measuring force | Stylus radius/angle | Data output |
|---|---|---|---|---|
| ISR-T120 | X axis 17.5mm/Z axis 640µm (-320µm~320µm) | 4mN | 5µm/90° | USB and bluetooth |

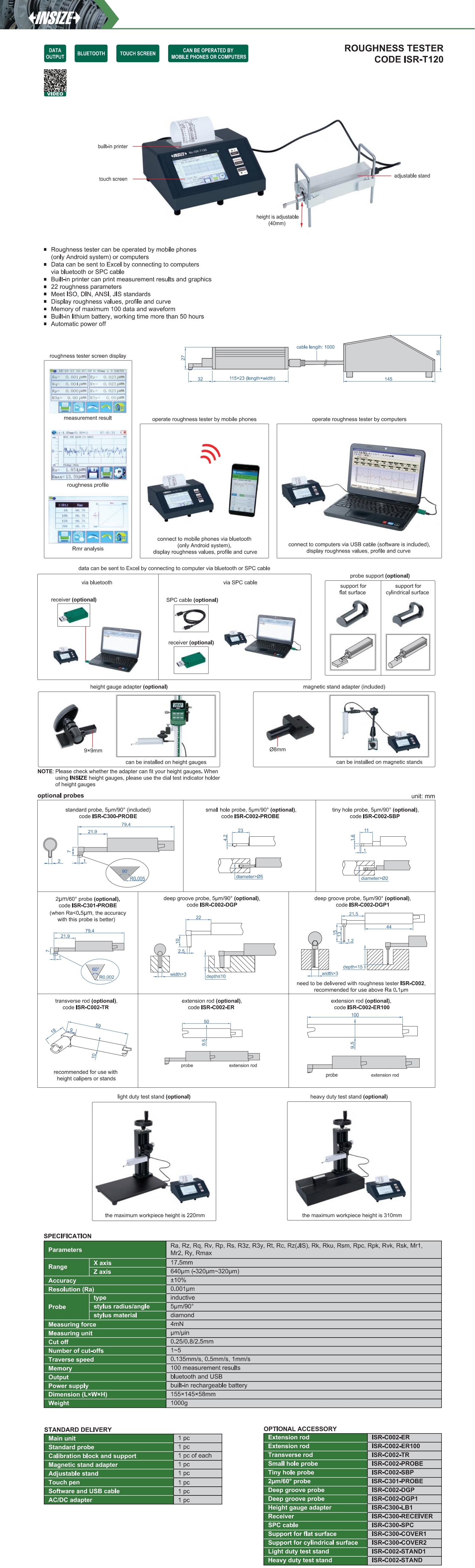

View the complete
