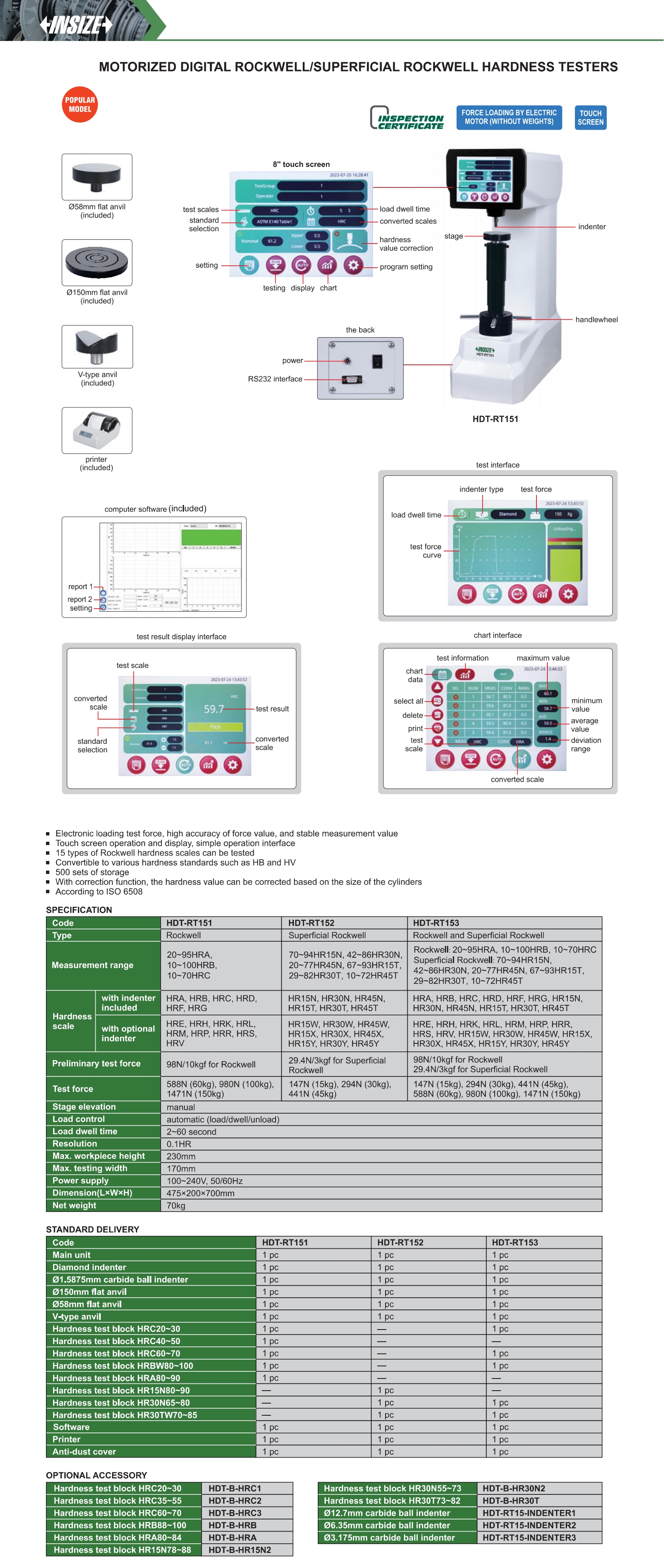

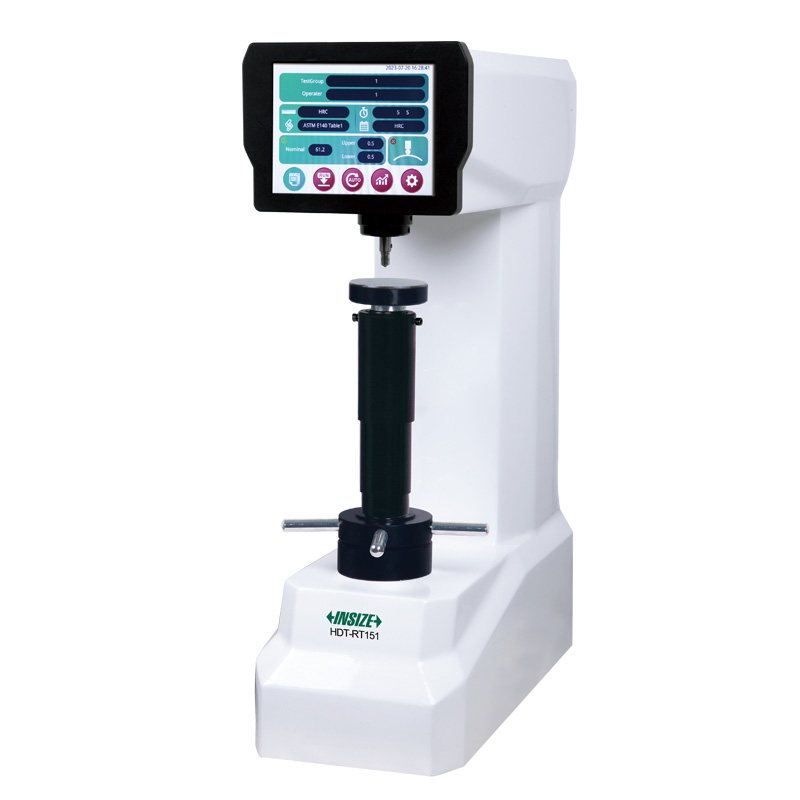

Motorized Digital Rockwell/Superficial Rockwell Hardness Testers
Code: HDT-RT Series
Electronic loading test force, high accuracy of force value, and stable measurement value
Touch screen operation and display, simple operation interface
15 types of Rockwell hardness scales can be tested
Convertible to various hardness standards such as HB and HV
500 sets of storage
With correction function, the hardness value can be corrected based on the size of the cylinders
According to ISO 6508
| Code | Resolution | Load control | Max. workpiece height | Max. testing width | Hardness scale |
|---|---|---|---|---|---|
| HDT-RT151 | 0.1HR | automatic (load/dwell/unload) | 230mm | 170mm | HRA, HRB, HRC, HRD, HRF, HRG |
| HDT-RT152 | 0.1HR | automatic (load/dwell/unload) | 230mm | 170mm | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| HDT-RT153 | 0.1HR | automatic (load/dwell/unload) | 230mm | 170mm | HRA, HRB, HRC, HRD, HRF, HRG, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
