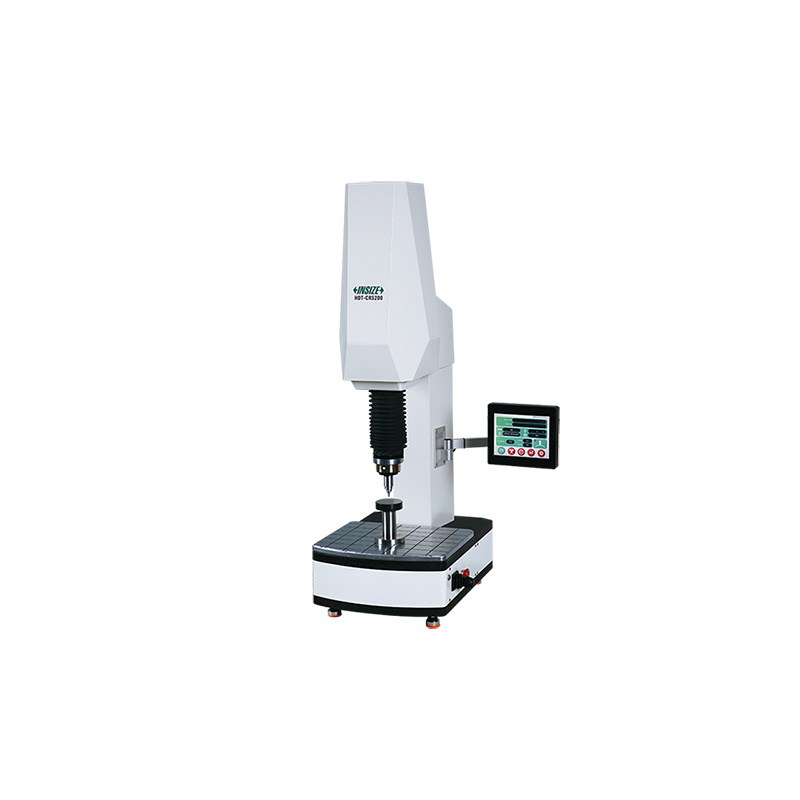

Automatic Digital Rockwell/Superficial Rockwell Hardness Tester(Advanced Type)
Code: HDT-CRS200
One click operation can obtain measurement results,enabling large-scale hardness measurement of workpieces
CNC system, close-loop electronic control system applies test force
Touch screen operation and display
Cantilevered structure, achieving full automation of hardness measurement
| Code | Resolution | Load control | Max. workpiece height | Max. testing width | Hardness scale |
|---|---|---|---|---|---|
| HDT-CRS200 | 0.05HR | automatic (load/dwell/unload) | 300mm | 200mm | HRA, HRB, HRC, HRD, HRF, HRG, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |

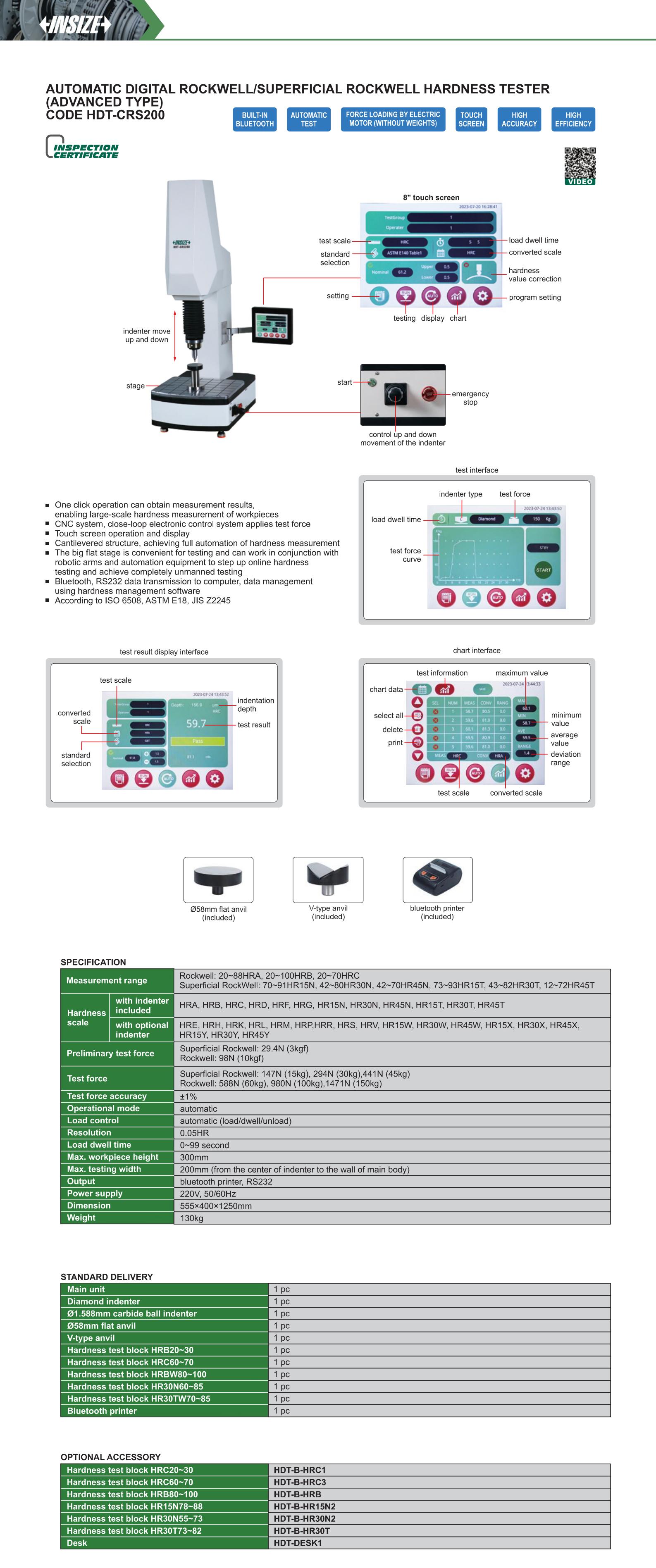

View the complete
product specifications
