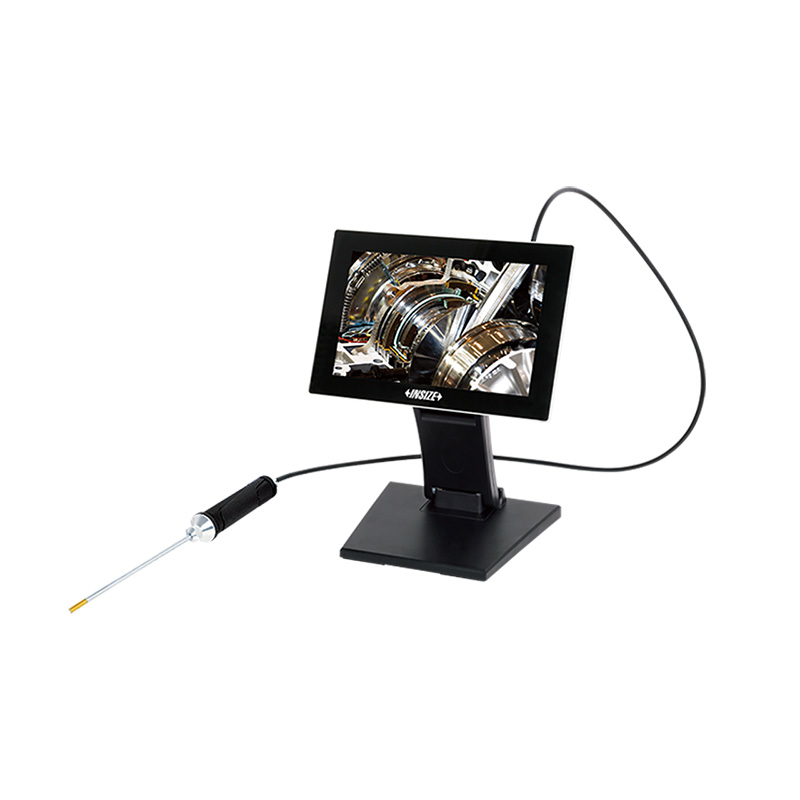

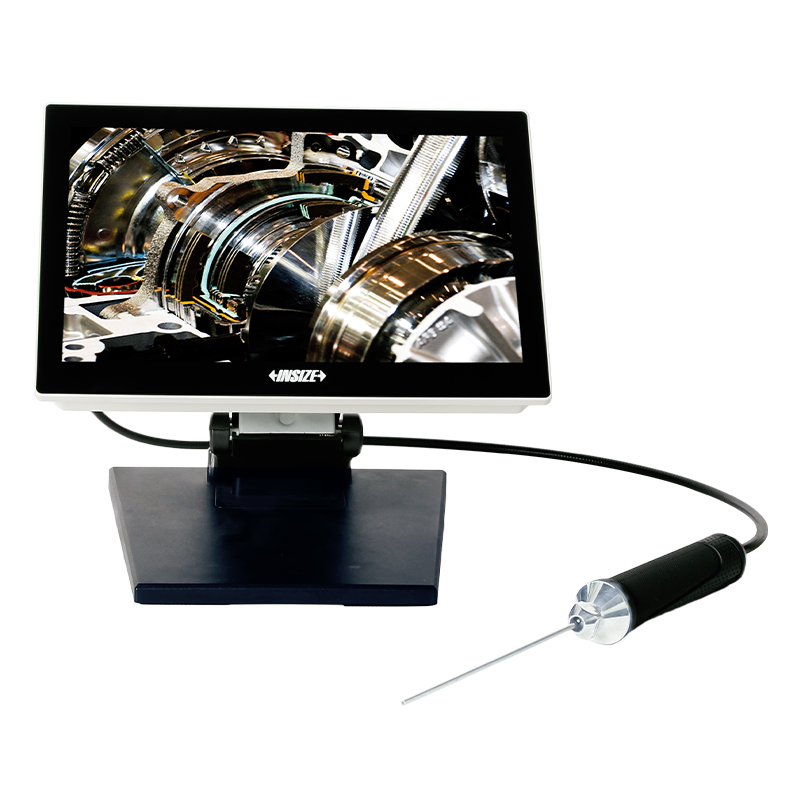

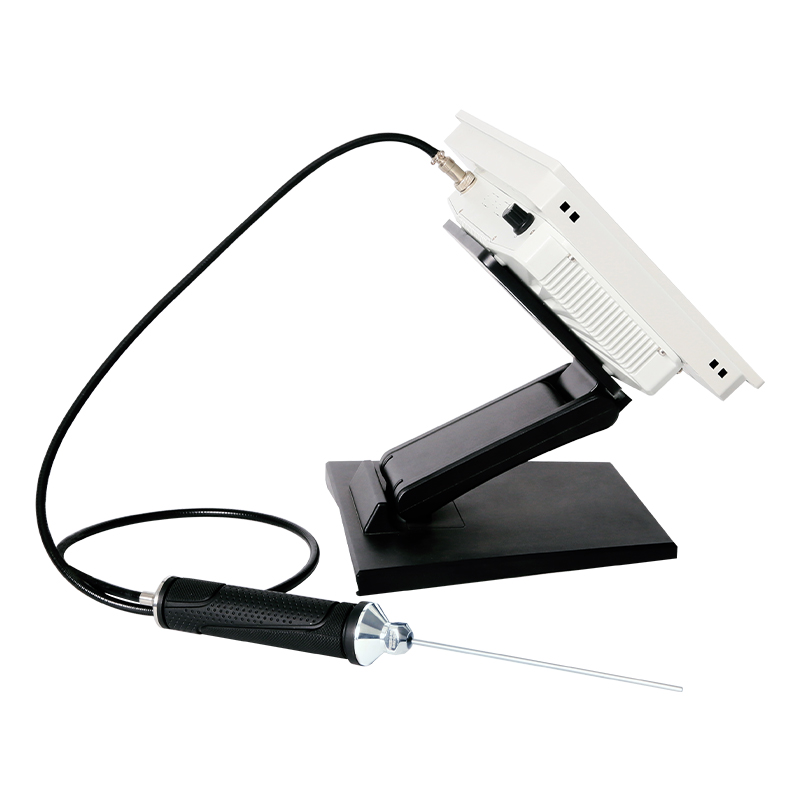

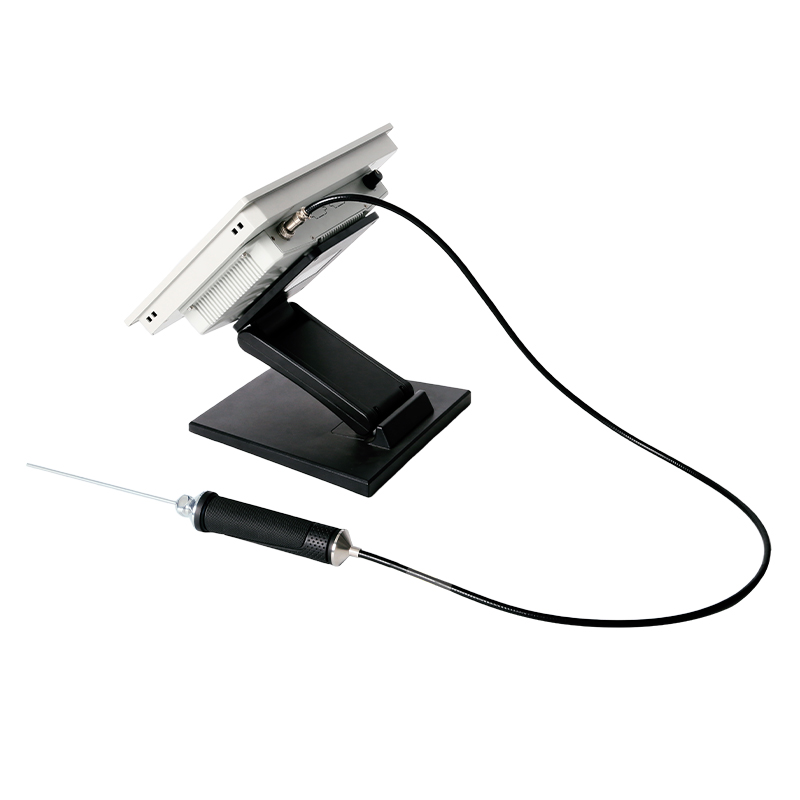

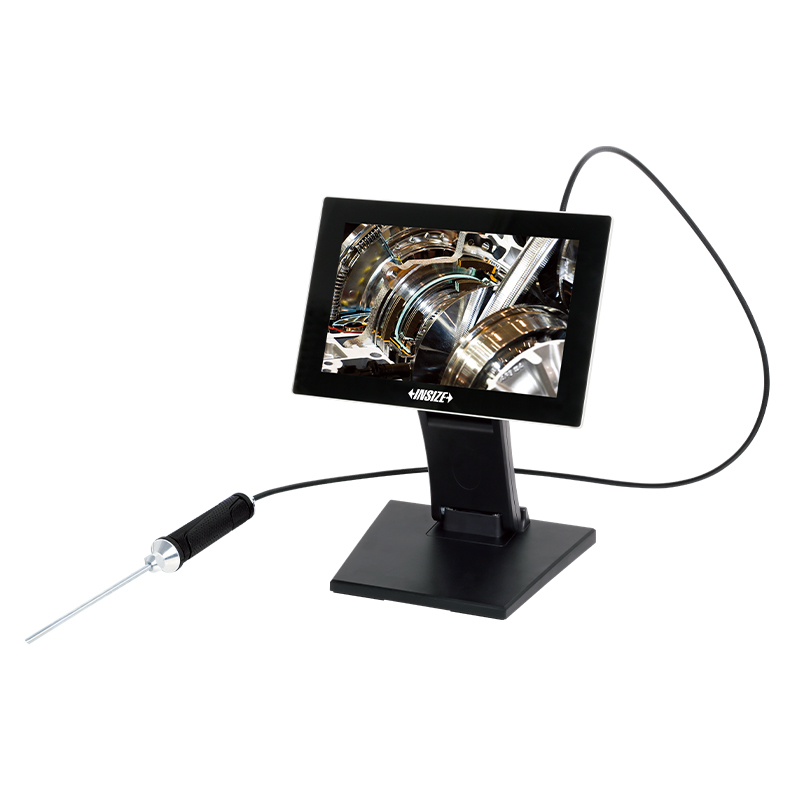

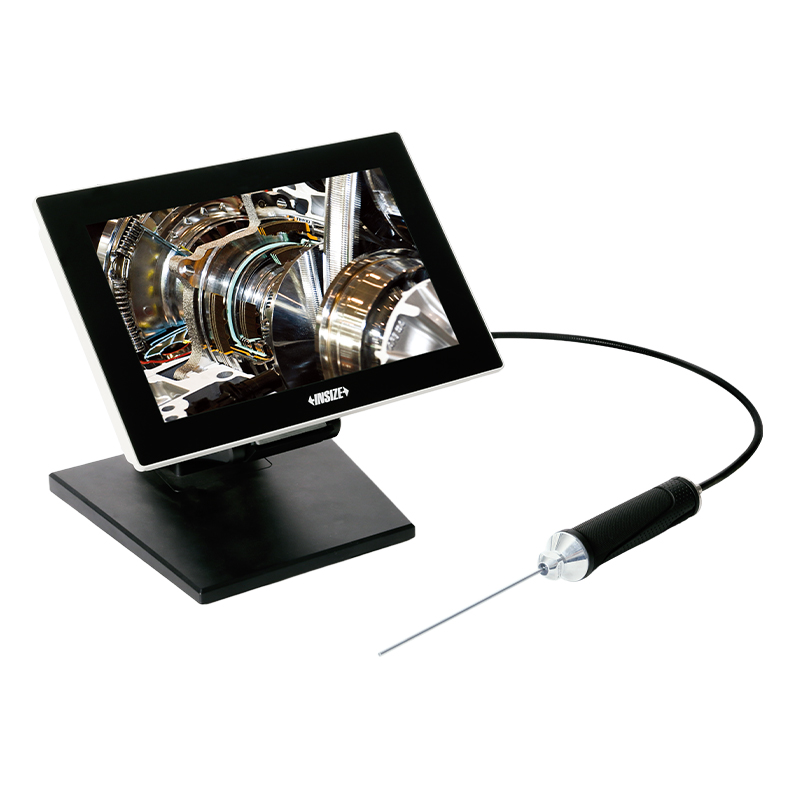

Videoscope (Desk Type)
Code: ISV-Y Series
| Code | Cable type | View direction | Lens diameter(ØD) | Cable length (L) | Angle of view (θ) |
|---|---|---|---|---|---|
| ISV-Y1210 | rigid straight lens tube | front view | 1.2mm | 90mm | 120° |
| ISV-Y1810 | rigid straight lens tube | front view | 1.8mm | 120mm (optional 90-150mm) | 120° |
| ISV-Y2010 | rigid straight lens tube | front view | 2.0mm | 120mm (optional 90-150mm) | 120° |
| ISV-Y2410 | rigid straight lens tube | front view | 2.4mm | 150mm (optional 90-300mm) | 120° |
| ISV-Y2810 | rigid straight lens tube | front view | 2.8mm | 150mm (optional 90-300mm) | 120° |
| ISV-Y3910 | rigid straight lens tube | front view | 3.9mm | 200mm (optional 90-500mm) | 120° |
| ISV-Y6010 | rigid straight lens tube | front view | 6.0mm | 300mm (optional 90-1000mm) | 120° |
| ISV-Y2810C | rigid straight lens tube | side view | 2.8mm | 150mm (optional 90-300mm) | 120° |
| ISV-Y3910C | rigid straight lens tube | side view | 3.9mm | 200mm (optional 90-500mm) | 120° |
| ISV-Y4510C | rigid straight lens tube | side view | 4.5mm | 250mm (optional 90-800mm) | 120° |
| ISV-Y6010C | rigid straight lens tube | side view | 6.0mm | 300mm (optional 90-1000mm) | 120° |
| ISV-Y6010S | rigid straight lens tube | front view, side view | 6.0mm | 300mm (optional 90-1000mm) | 120° |
| ISV-Y3010W | bending spring lens tube | front view | 3.0mm | 1000mm | 120° |
| ISV-Y5010W | bending spring lens tube | front view | 5.0mm | 1000mm | 120° |
| ISV-Y7010W | bending spring lens tube | front view | 7.0mm | 1000mm | 120° |
