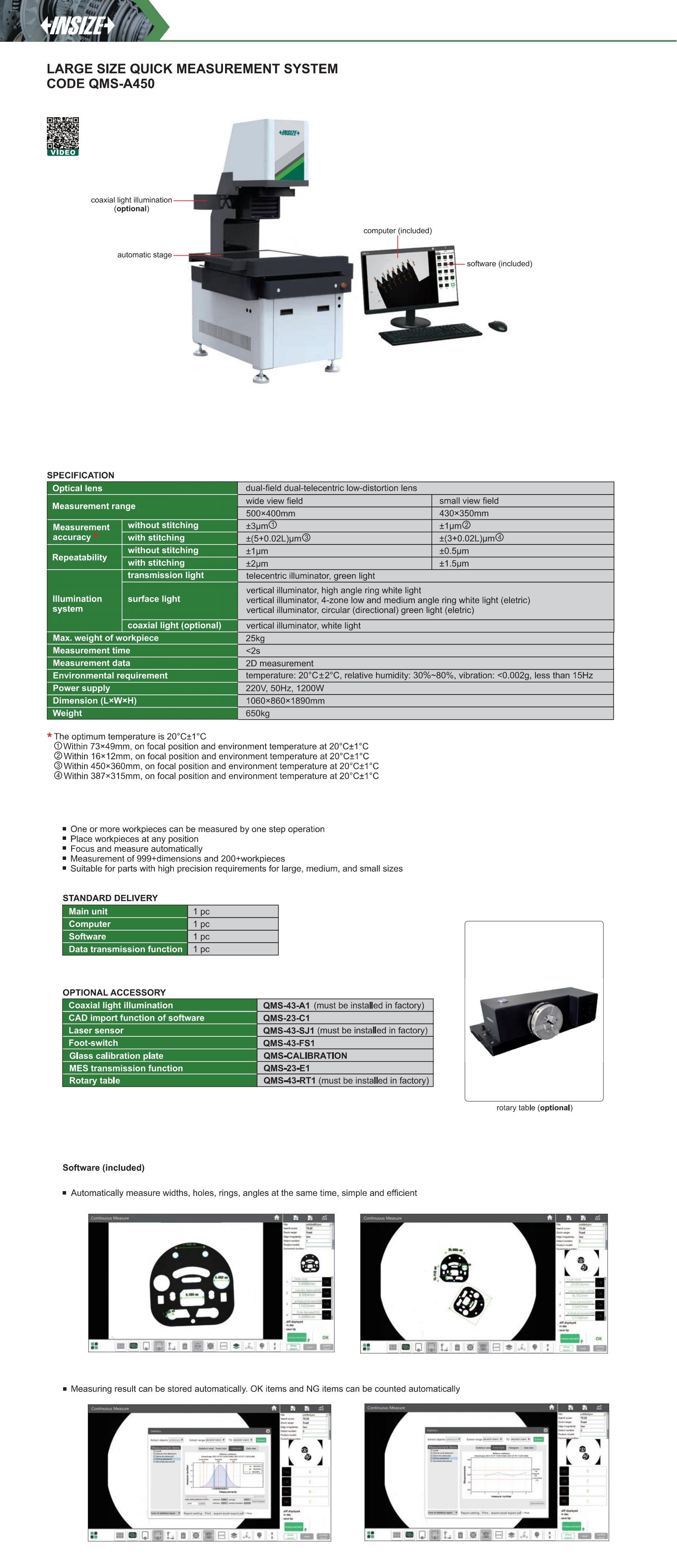

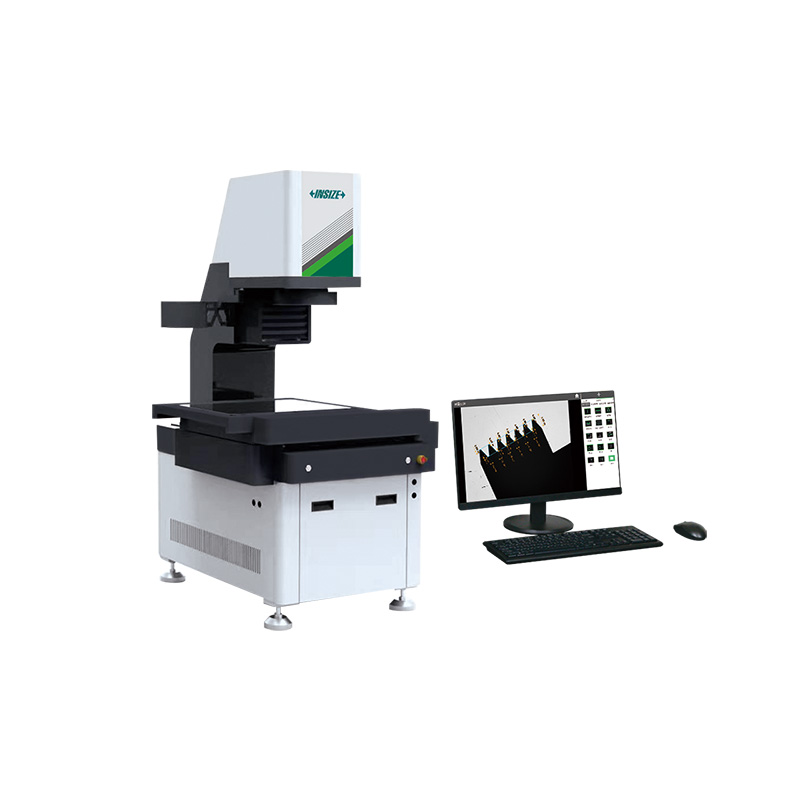

Large Size Quick Measurement System
Code: QMS-A450
One or more workpieces can be measured by one step operation
Place workpieces at any position
Focus and measure automatically
Measurement of 999+dimensions and 200+workpieces
Suitable for parts with high precision requirements for large, medium, and small sizes
| Code | Range | Without stitching accuracy | With stitching accuracy | Without stitching repeatability | With stitching repeatability | Max. load |
|---|---|---|---|---|---|---|
| QMS-A450 | wide view field:500×400mm/ small view field:430×350mm | wide view field:±3μm/small view field:±1μm | wide view field:±(5+0.02L)μm/small view field:±(3+0.02L)μm | wide view field:±1μm/small view field:±0.5μm | wide view field:±2μm/small view field:±1.5μm | 25kg |
